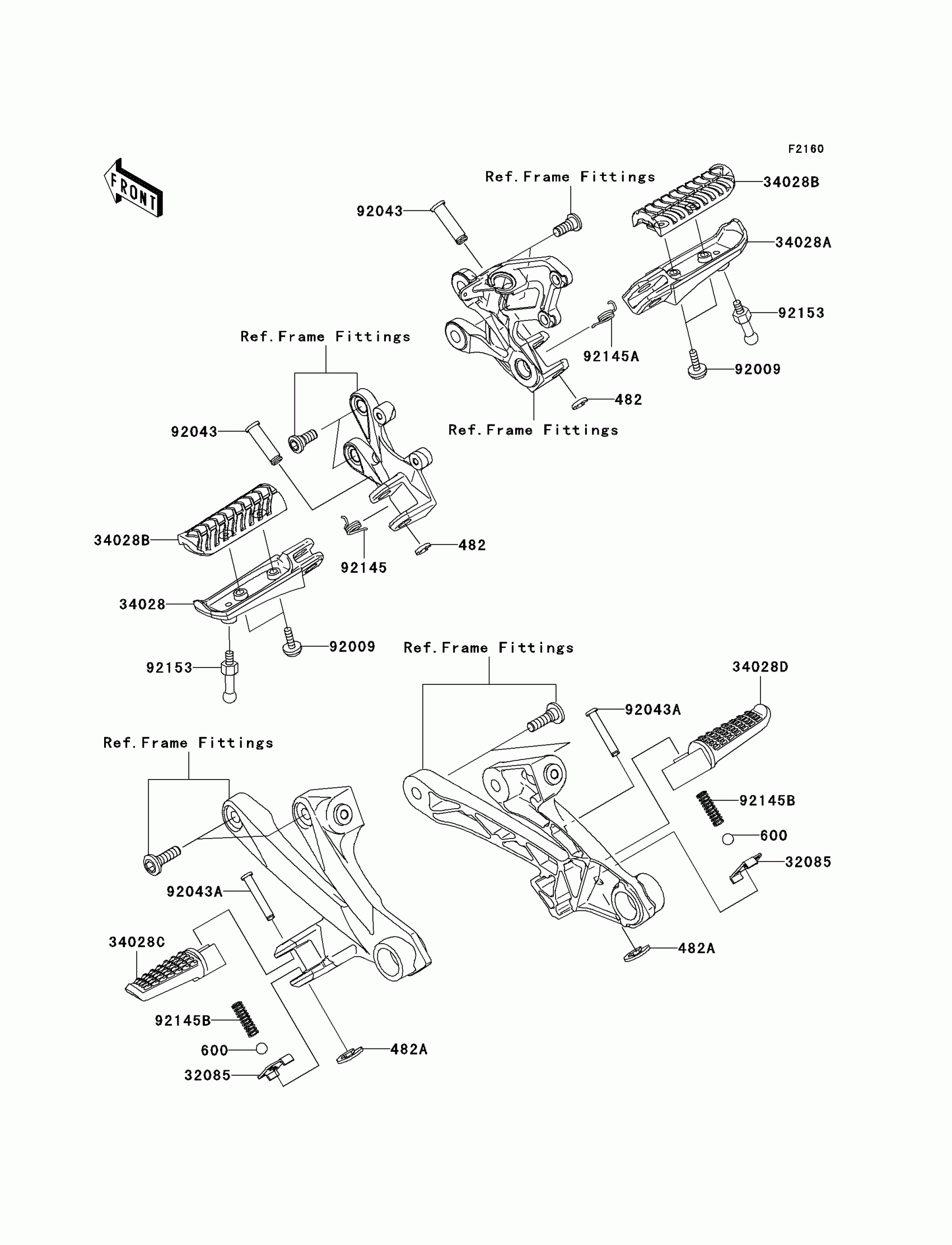

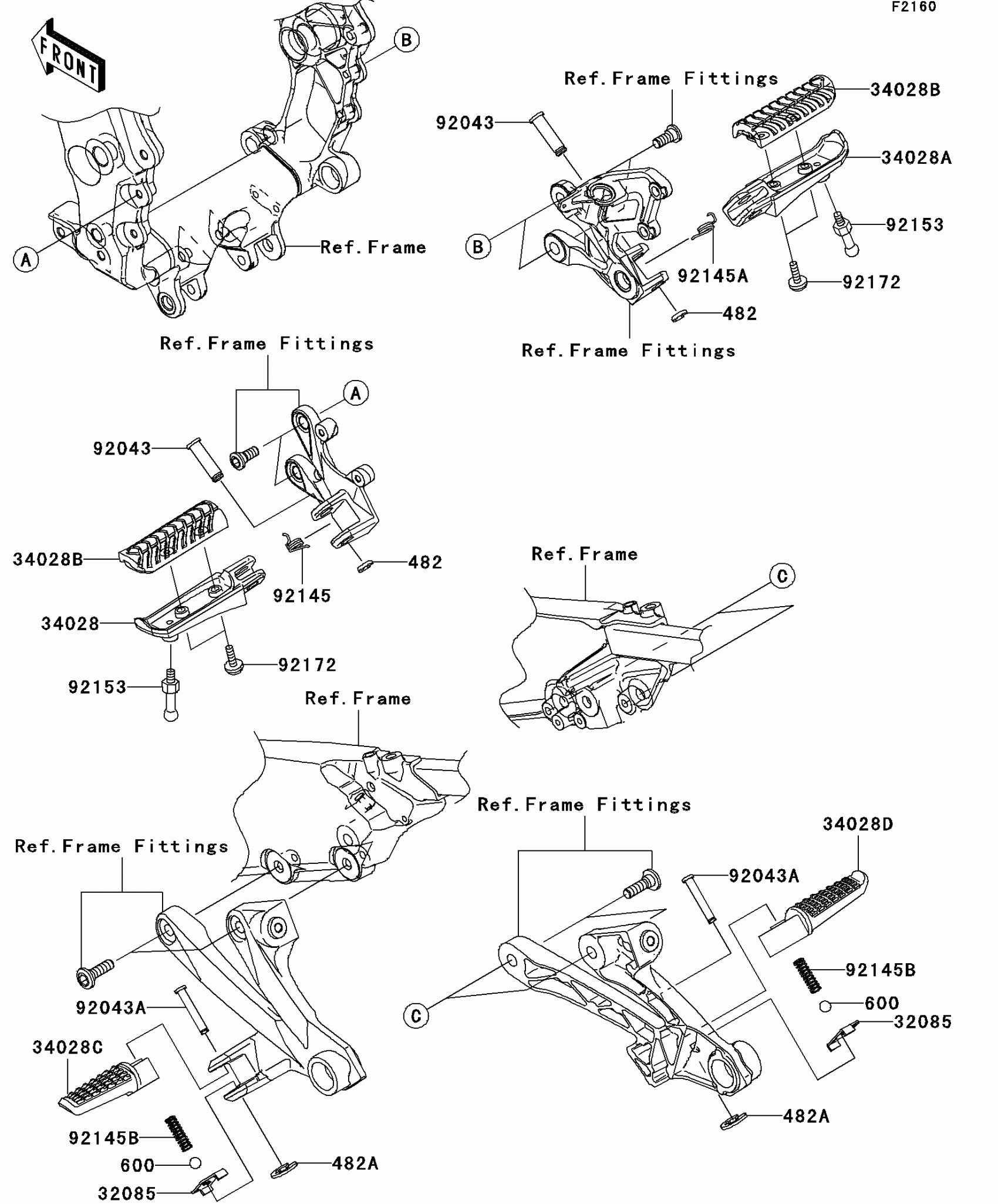

Kawasaki Ninja® ZX™-14 Footrests Diagram

Description

Price

32085

STOPPER,REAR STEP

32085-0046

$2.36

34028

STEP,FR,LH

34028-0031

$52.14

34028A

STEP,FR,RH

34028-0032

$52.14

34028B

STEP,FR,RUBBER

34028-0033

$24.63

34028C

STEP,RR,LH

34028-1480

$71.73

34028D

STEP,RR,RH

34028-1481

$71.73

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.66

482A

CIRCLIP-TYPE-E,5MM

482L5000

$1.04

600

BALL-STEEL,1/4

600A0800

$0.59

92043

PIN,12X42.5

92043-1594

$5.25

92043A

PIN,6X40

92043-1595

$1.68

92145

SPRING,STEP RETURN,LH

92145-0360

$3.49

92145A

SPRING,STEP RETURN,RH

92145-0361

$3.49

92145B

SPRING

92145-1319

$1.33

92153

BOLT,BANK SENSOR

92153-1462

$4.27

92172

SCREW,5X14

92172-0237

$3.01
