2007 Kawasaki Ninja® ZX™-14 Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2007 Kawasaki Ninja® ZX™-14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

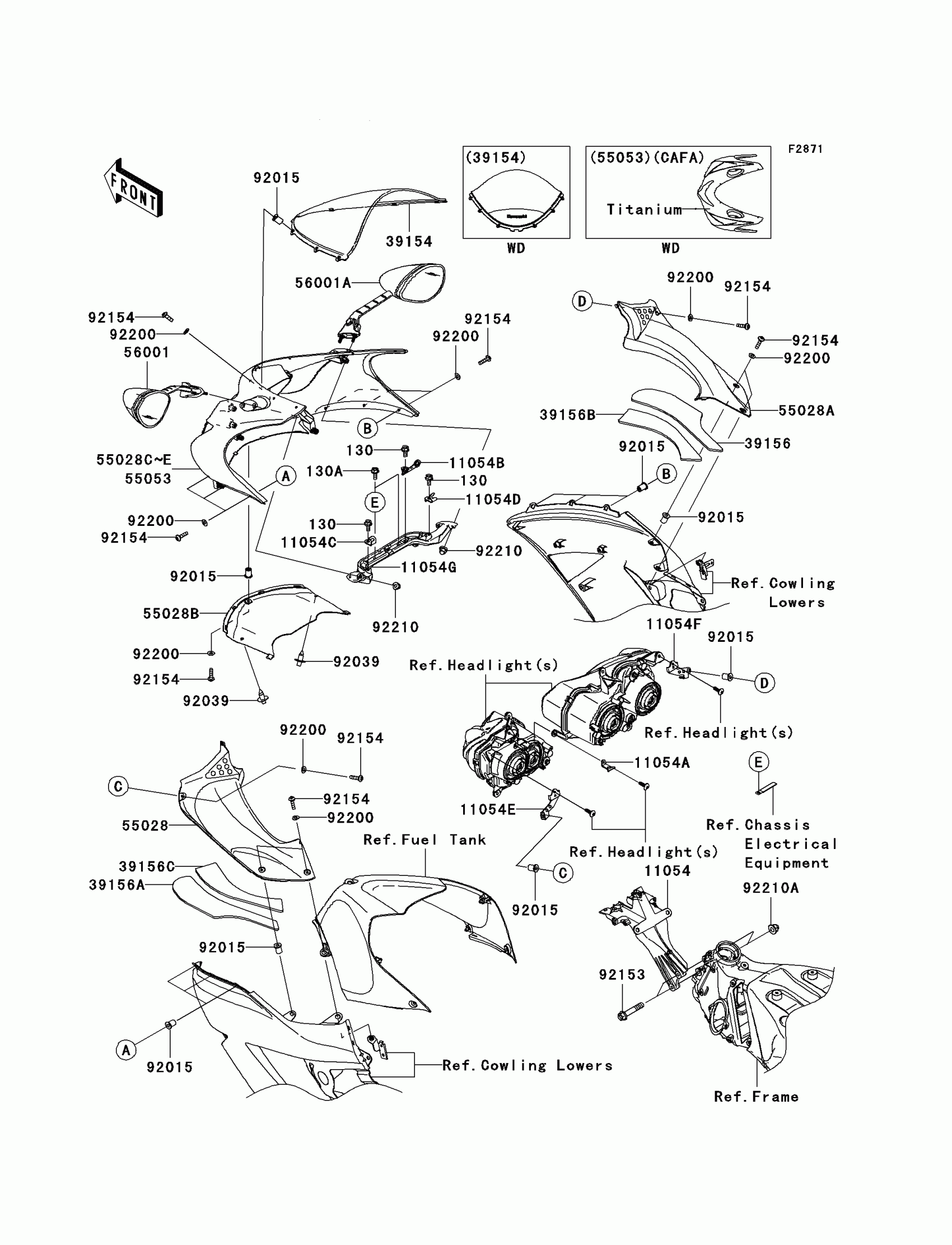

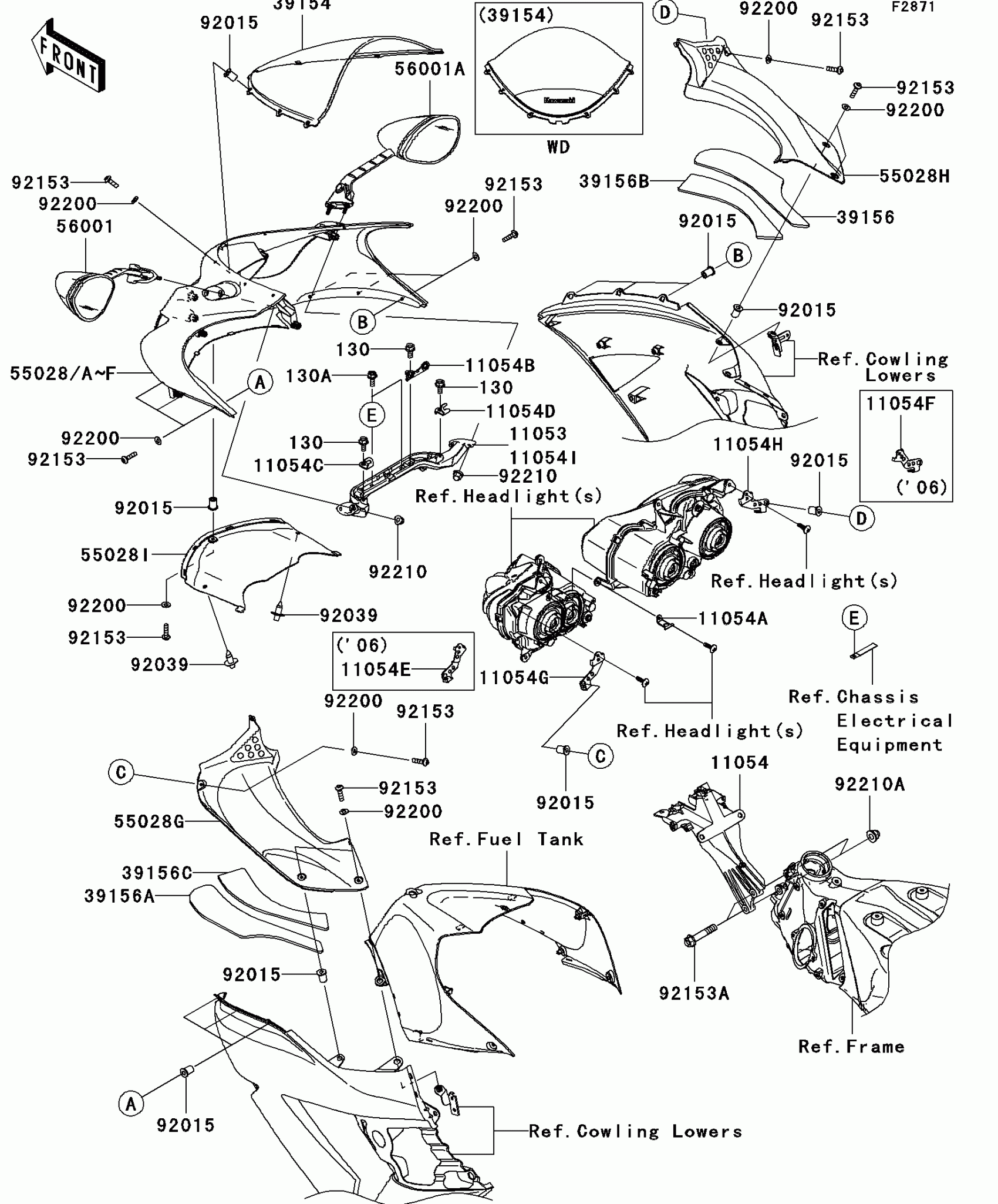

2007 Kawasaki Ninja® ZX™-14 Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,METER

11054-0057

1
Out of stock

11054A

BRACKET,UPP COWLING

11054-0180

1
Out of stock

11054B

BRACKET,DOWN SENSOR

11054-0239

1
Out of stock

11054C

BRACKET,INNER COWLING

11054-0702

1
Out of stock

11054D

BRACKET,INNER COWLING

11054-0703

1
Out of stock

11054G

BRACKET,INNER COWLING,LH

11054-1305

1
Out of stock

11054H

BRACKET,INNER COWLING,RH

11054-1306

1
Out of stock

11054I

BRACKET,MIRROR

11054-1307

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1
Out of stock

130A

BOLT-FLANGED,6X16

130BA0616

1
Out of stock

39154

WINDSHIELD,KAWASAKI

39154-5025

1
Out of stock

39156

PAD,INNER COWLING,RH,UPP

39156-0155

1
Out of stock

39156A

PAD,INNER COWLING,LH,UPP

39156-0156

1
Out of stock

39156B

PAD,INNER COWLING,RH,LWR

39156-0157

1
Out of stock

39156C

PAD,INNER COWLING,LH,LWR

39156-0158

1
Out of stock

55028A

COWLING,UPP,M.BLACK

55028-0056-17K

1
Out of stock

55028B

COWLING,UPP,SILVER

55028-0056-17M

1
Out of stock

55028F

COWLING,UPP,C.P.BLUE

55028-0056-723

1
Out of stock

55028G

COWLING,INNER,LH

55028-0061

1
Out of stock

55028H

COWLING,INNER,RH

55028-0062

1
Out of stock

55028I

COWLING,FR,CNT

55028-0095

1
Out of stock

56001

MIRROR-ASSY,LH

56001-0049

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-0050

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92039

RIVET

92039-0023

1
Out of stock

92153

BOLT,SOCKET,5X16

92153-1244

1
Out of stock

92153A

BOLT,FLANGED,8X45

92153-1603

1
Out of stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92210

NUT,CAP,6MM

92210-0322

1
Out of stock

92210A

NUT,CAP,8MM

92210-0325

1
Out of stock
