2011 Kawasaki Ninja® ZX™-14 Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2011 Kawasaki Ninja® ZX™-14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

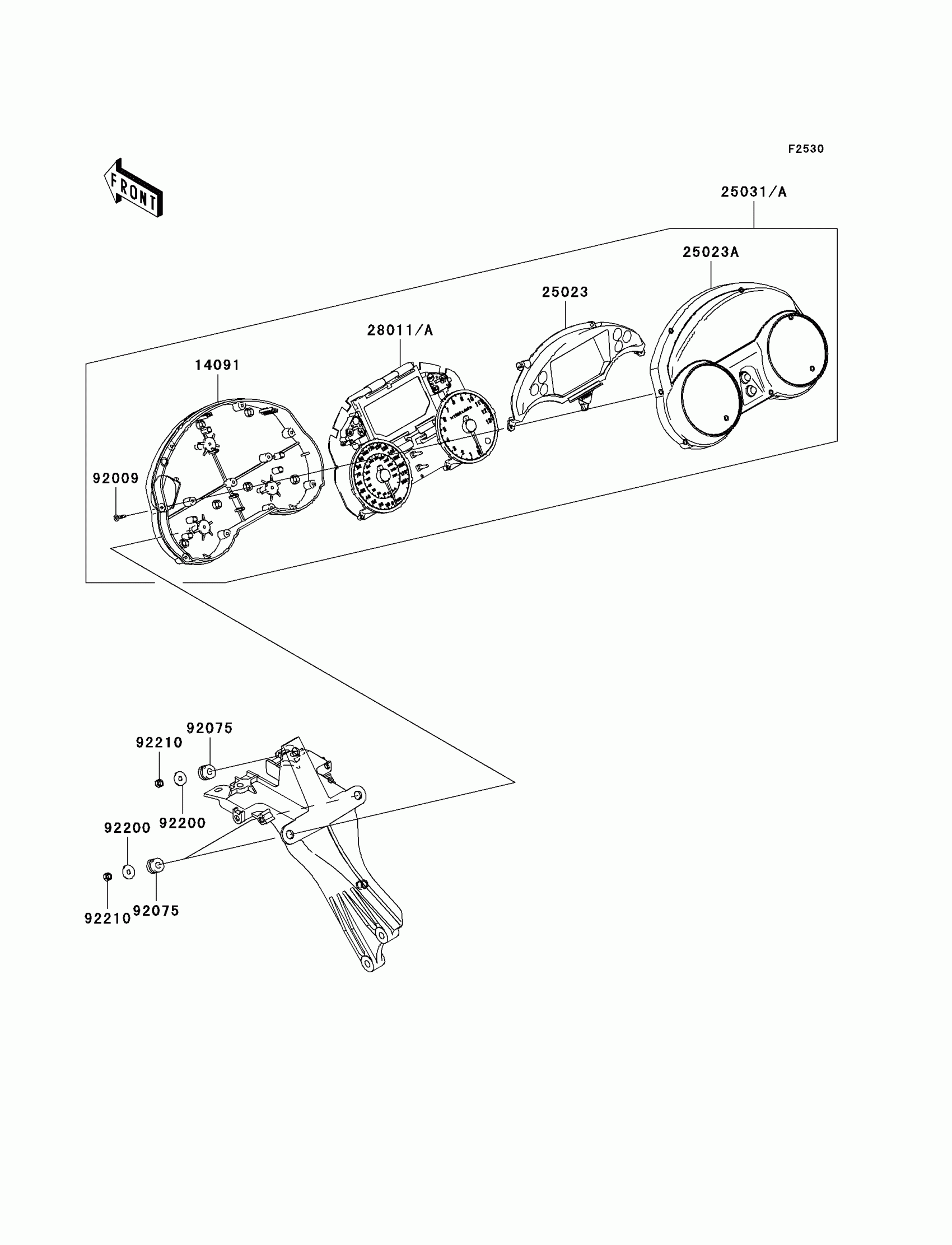

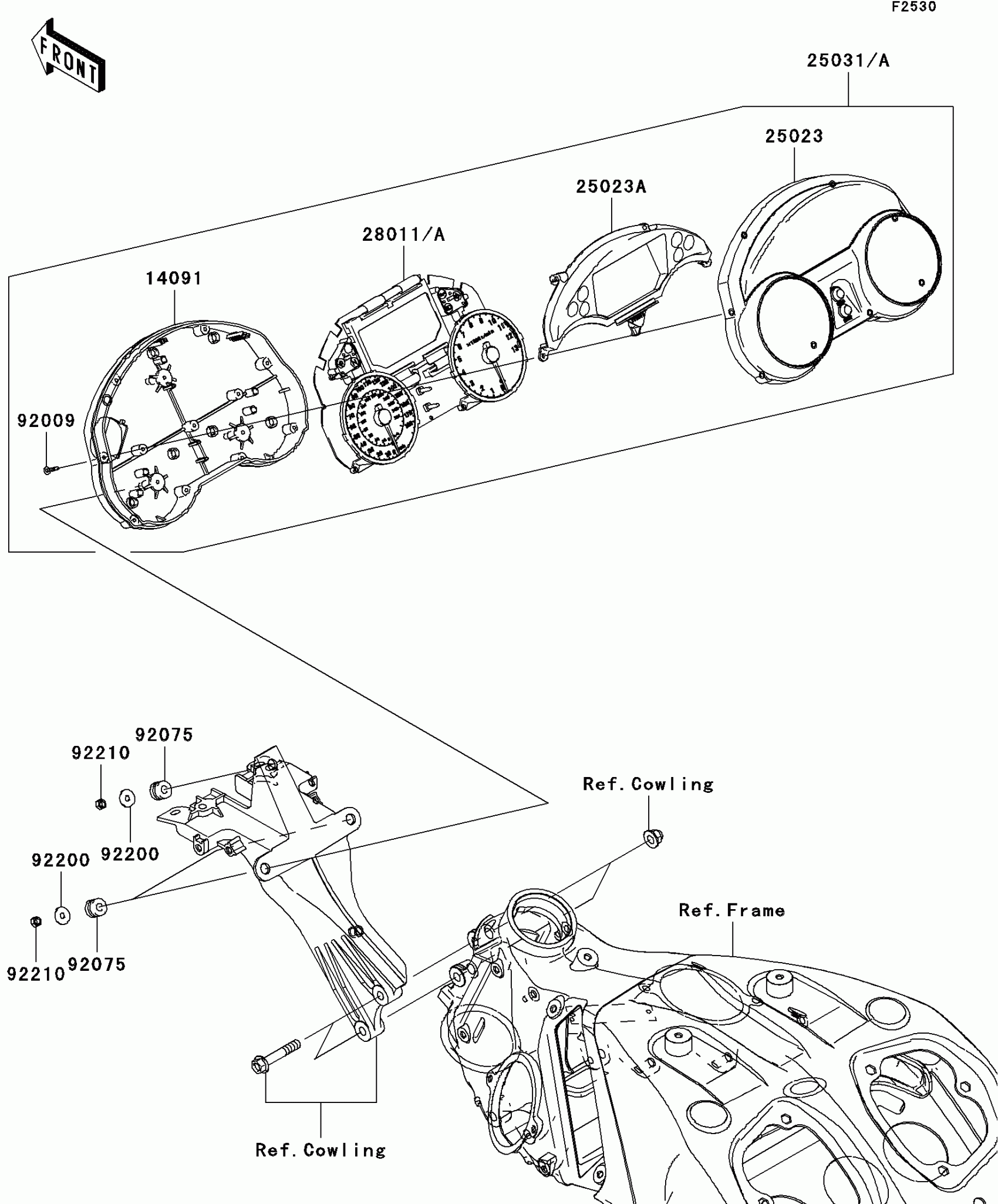

2011 Kawasaki Ninja® ZX™-14 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,METER,LWR

14091-0546

1
Out of stock

25023

COVER-METER CASE,VISOR

25023-0021

1
Out of stock

25023A

COVER-METER CASE,UPP

25023-0034

1
Out of stock

92009

SCREW,TAPPING,3X16

92009-1164

1
Out of stock

92075

DAMPER

92075-1435

1
Out of stock

92200

WASHER

92200-0288

1
Out of stock

92210

NUT,5MM

92210-0290

1
Out of stock

25031

METER-ASSY,SPEED&TACHO&LCD

25031-0253

1
Out of stock

25031A

METER-ASSY,SPEED&TACHO&LCD

25031-0255

1
Out of stock

28011

METER,SPEED&TACHO&LCD

28011-0125

1
Out of stock

28011A

METER,SPEED&TACHO&LCD

28011-0127

1
Out of stock
