2011 Kawasaki Ninja® ZX™-14 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2011 Kawasaki Ninja® ZX™-14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

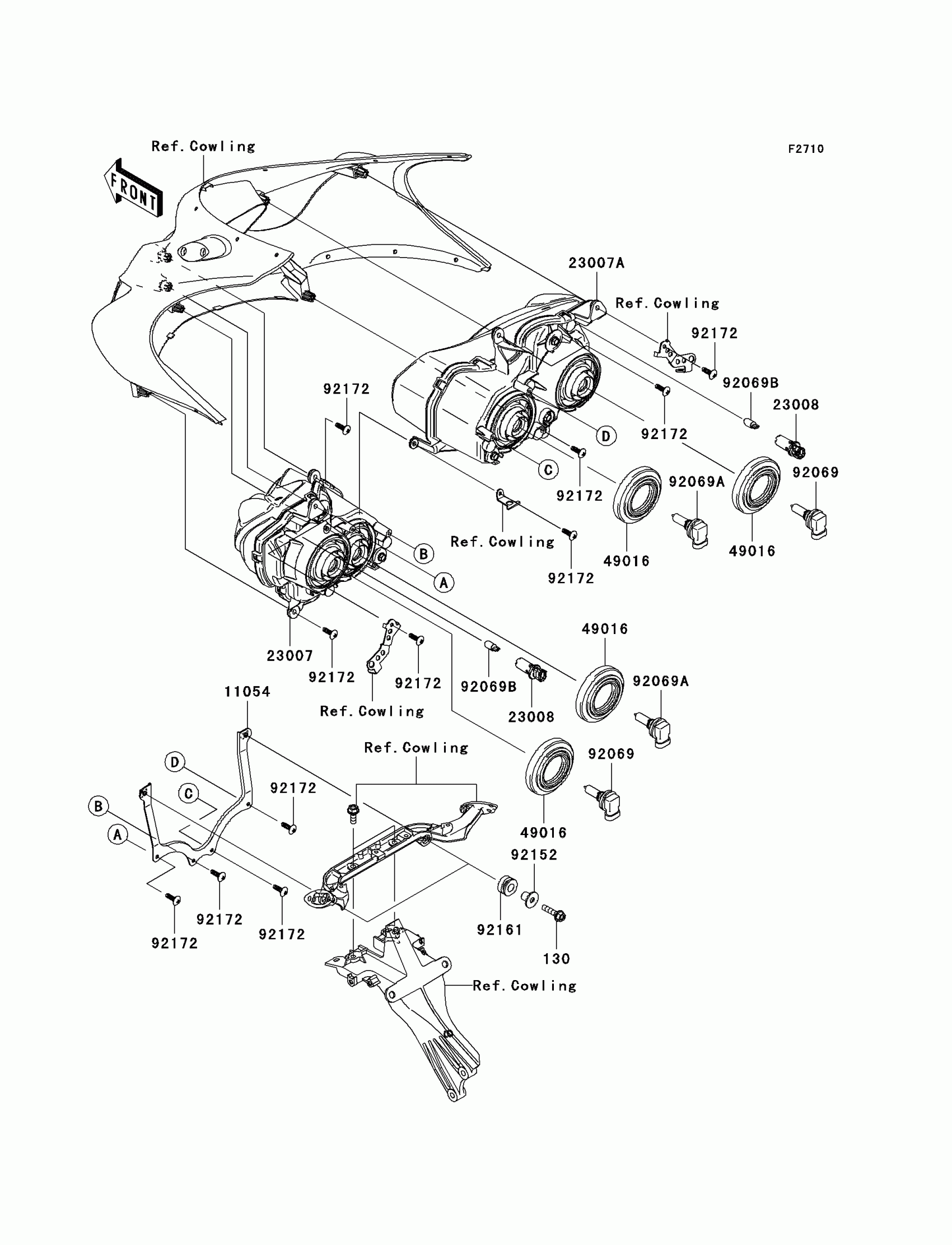

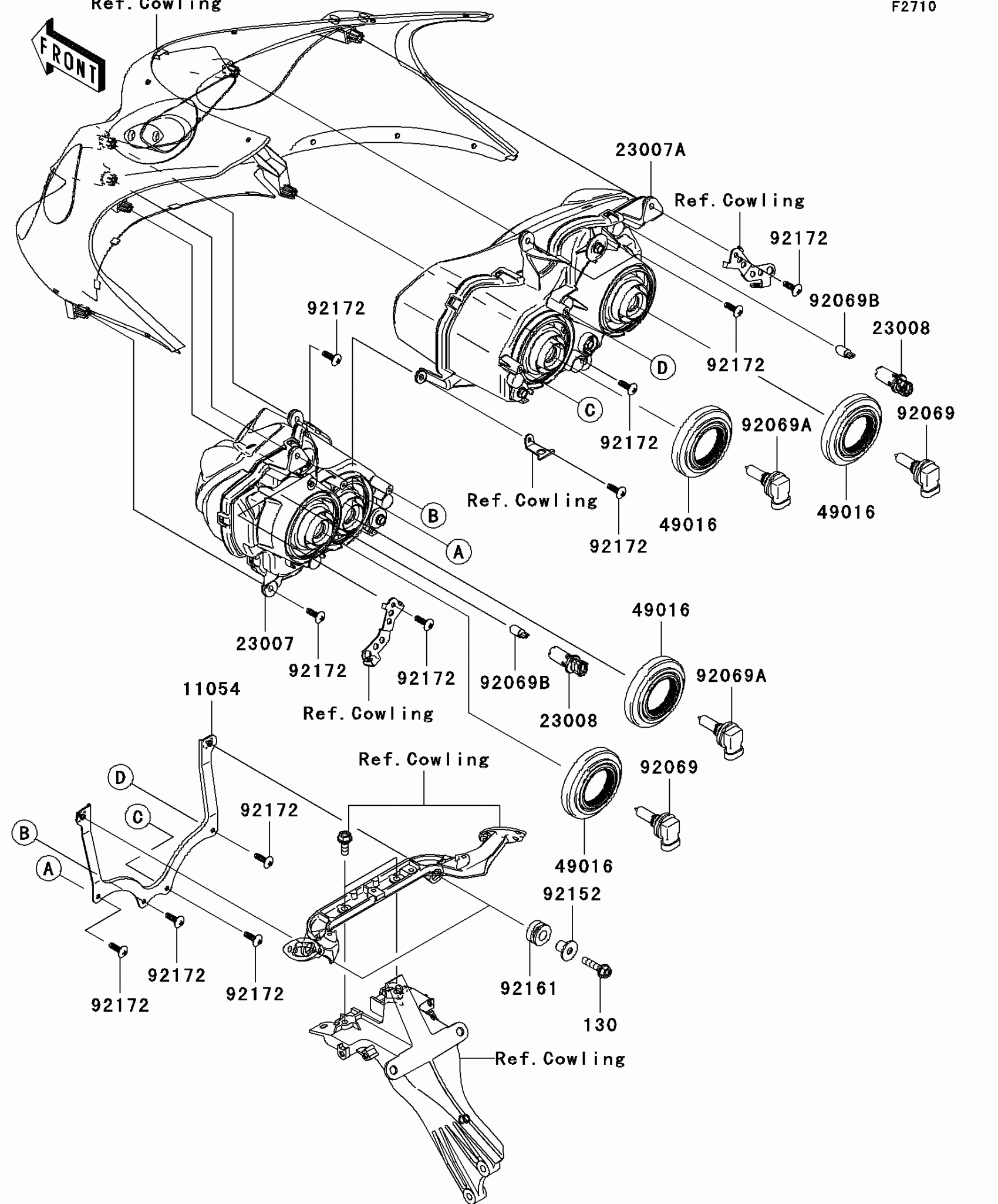

2011 Kawasaki Ninja® ZX™-14 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock

11054

BRACKET,HEAD LAMP

11054-0198

1

$47.69

In stock

23007

LENS-COMP,HEAD LAMP,LH

23007-0066

1
Out of stock

23007A

LENS-COMP,HEAD LAMP,RH

23007-0067

1
Out of stock

23008

SOCKET-ASSY,HEAD LAMP

23008-0053

1
Out of stock

49016

COVER-SEAL,HEAD LAMP

49016-0023

1
Out of stock

92069

BULB,12V 65W,H9

92069-0033

1
Out of stock

92069A

BULB,12V 55W,H11

92069-0034

1
Out of stock

92069B

BULB,12V 5W

92069-1016

1
Out of stock

92152

COLLAR,6.5X10X13.1

92152-0332

1
Out of stock

92161

DAMPER

92161-0036

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0238

1
Out of stock
