2007 Kawasaki Ninja® ZX™-14 Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 2007 Kawasaki Ninja® ZX™-14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

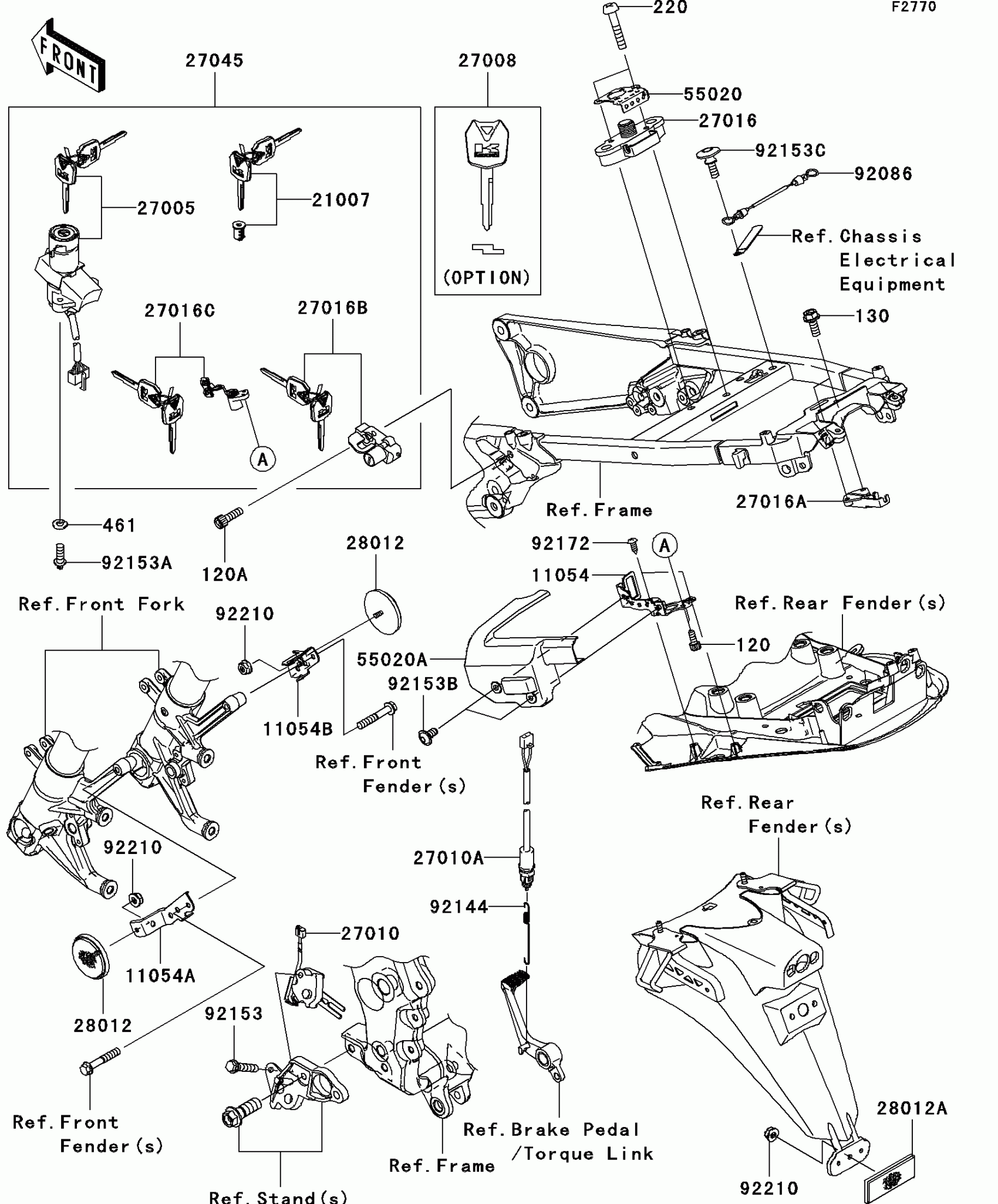

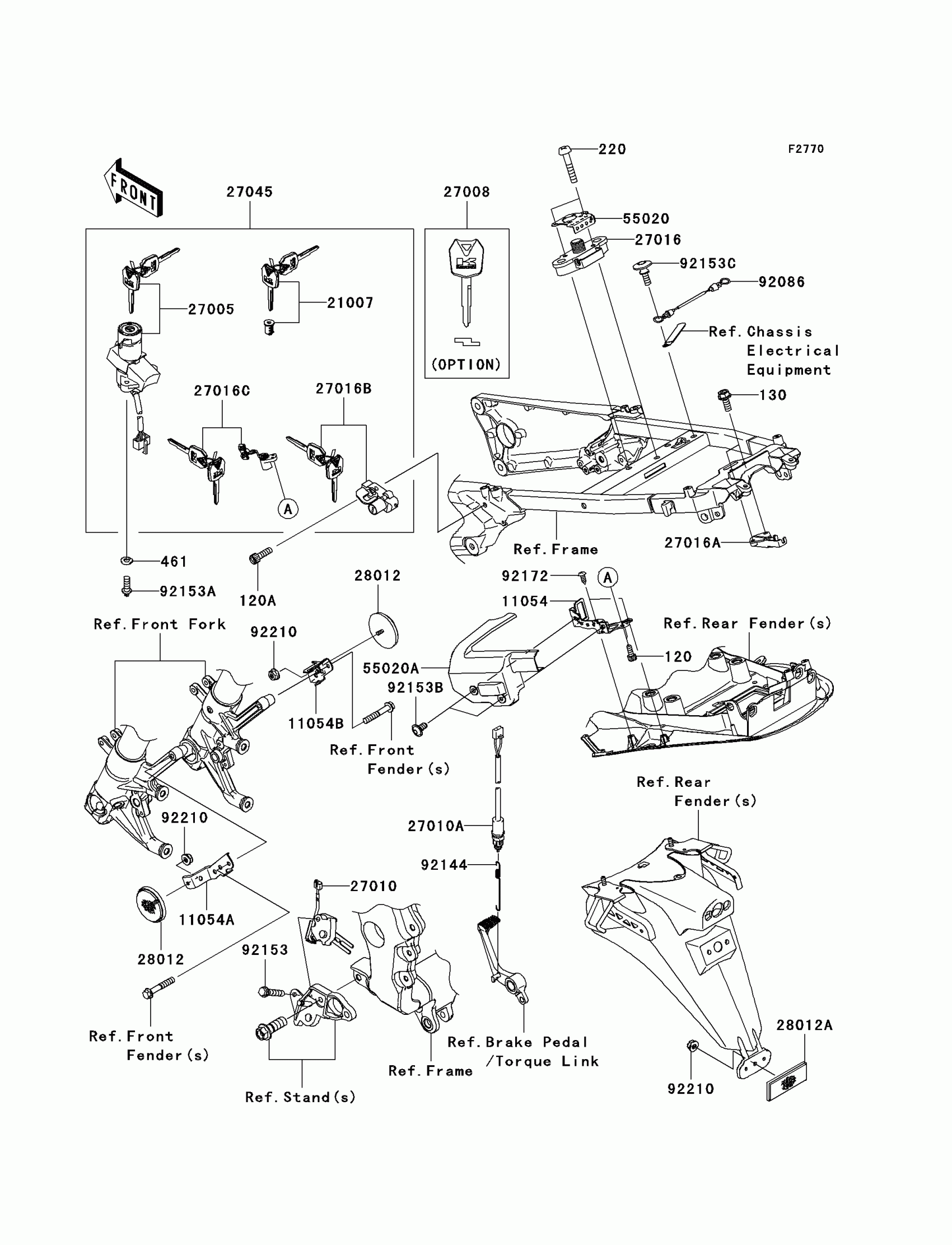

2007 Kawasaki Ninja® ZX™-14 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,SEAT LOCK

11054-0068

1

$12.17

In stock

11054A

1

$15.93

In stock

11054B

1

$16.97

In stock

120

BOLT-SOCKET,5X12

120CA0512

1

$1.37

In stock

120A

BOLT-SOCKET,6X20

120CA0620

1

$1.49

In stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5057

1

$86.34

In stock

220

1

$1.44

In stock

27005

1

$190.44

In stock

27008

KEY-LOCK,BLANK

27008-0030

1

$14.66

In stock

27010

SWITCH,SIDE STAND

27010-0064

1

$137.18

In stock

27010A

SWITCH,REAR BRAKE

27010-1479

1

$27.22

In stock

27016

1

$86.38

In stock

27016A

1

$29.14

In stock

27016B

LOCK-ASSY,HELMET

27016-5326

1

$72.07

In stock

27016C

LOCK-ASSY,SEAT

27016-5339

1

$73.67

In stock

27045

SWITCH-ASSY

27045-5341

1

$434.02

In stock

28012

REFLECTOR-REFLEX

28012-0008

1

$24.88

In stock

28012A

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

461

WASHER-SPRING,6MM

461DA0600

1

$0.68

In stock

55020

GUARD,SEAT STRIKER

55020-0082

1

$4.22

In stock

55020A

GUARD,SEAT LOCK

55020-0275

1

$15.19

In stock

92086

WIRE,L=150

92086-1075

1
Out of stock

92144

1

$5.58

In stock

92153

BOLT,FLANGED,6X30

92153-1425

1
Out of stock

92153A

BOLT,TORX,6X16

92153-1426

1
Out of stock

92153B

BOLT,SOCKET,6X12

92153-1617

1

$1.20

In stock

92153C

BOLT,SOCKET,6X21

92153-1618

1

$8.08

In stock

92172

SCREW,TAPPING,5X12

92172-0239

1

$0.97

In stock

92210

NUT,5X0.8

92210-0242

1
Out of stock
