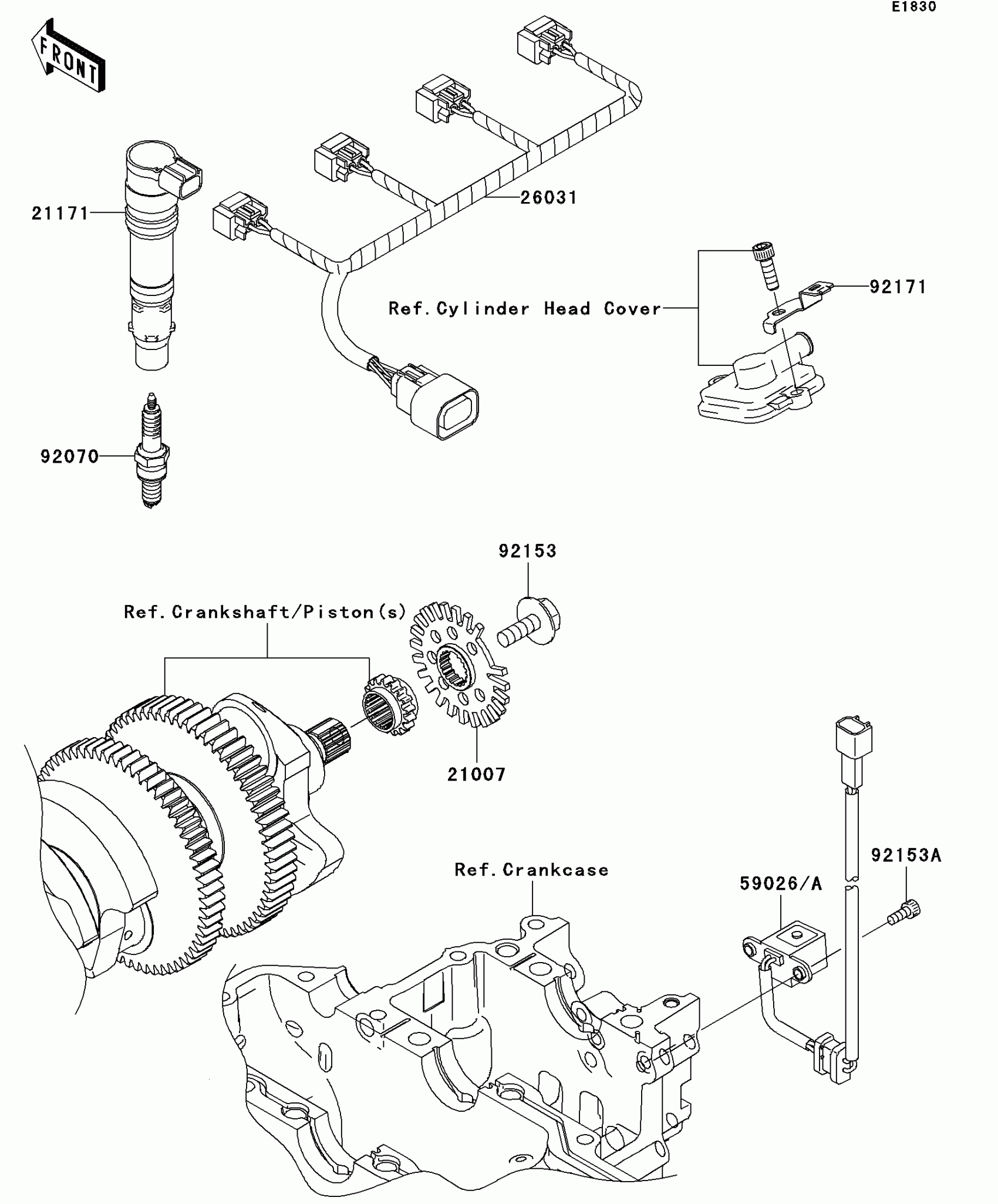

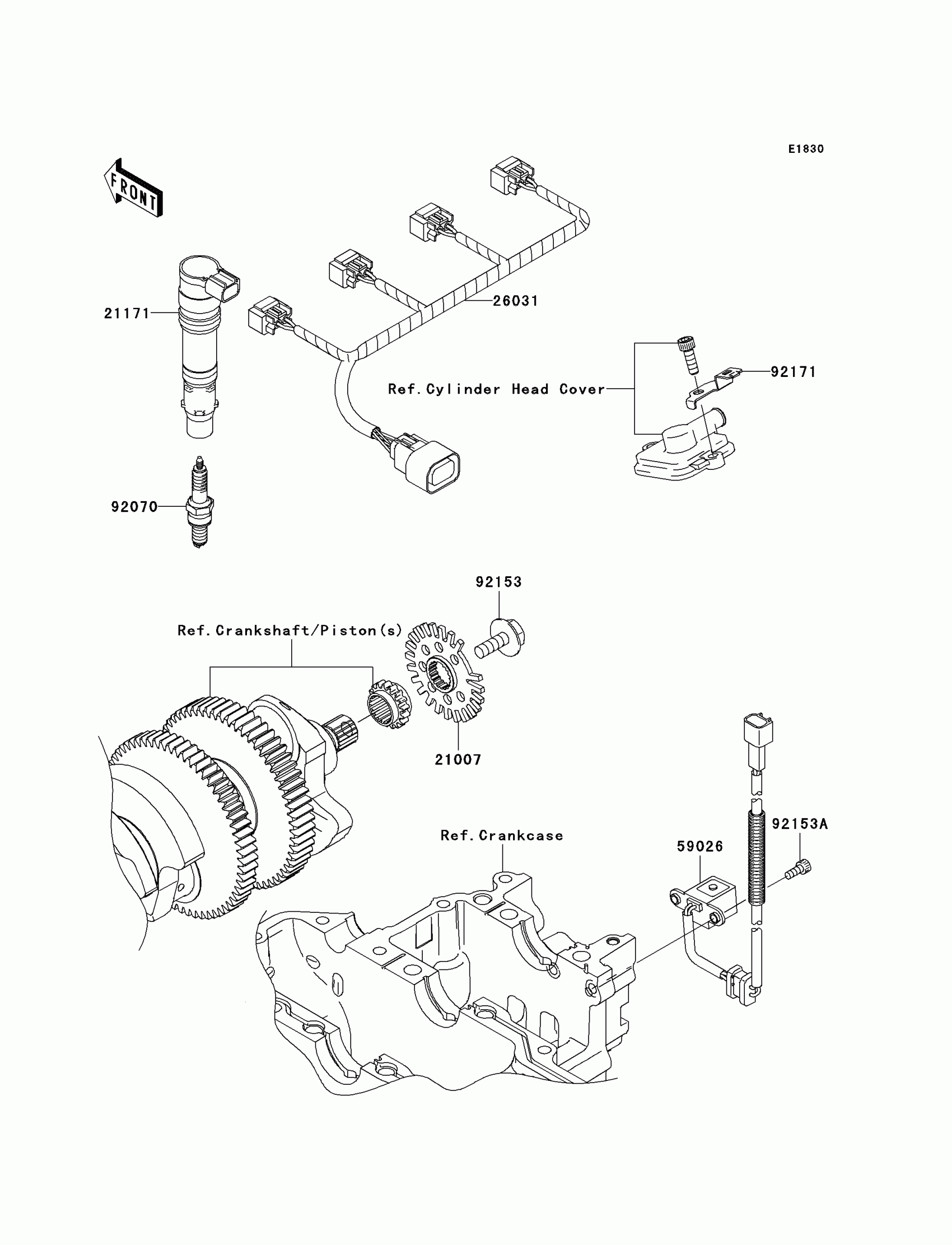

2011 Kawasaki Ninja® ZX™-14 Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2011 Kawasaki Ninja® ZX™-14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Kawasaki Ninja® ZX™-14 Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21007

ROTOR

21007-0066

1
Out of stock

21171

COIL-ASSY-IGNITION

21171-0005

1
Out of stock

26031

HARNESS

26031-0360

1
Out of stock

59026

COIL-PULSING

59026-0028

1
Out of stock

92070

PLUG-SPARK,CR9EIA(NGK)

92070-0014

—
Out of stock

92153

BOLT,FLANGED,8X23

92153-0549

1
Out of stock

92153A

BOLT,SOCKET,5X12

92153-1293

1
Out of stock

92171

CLAMP

92171-0524

1

$4.68

In stock
