2011 Kawasaki Ninja® ZX™-14 Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2011 Kawasaki Ninja® ZX™-14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

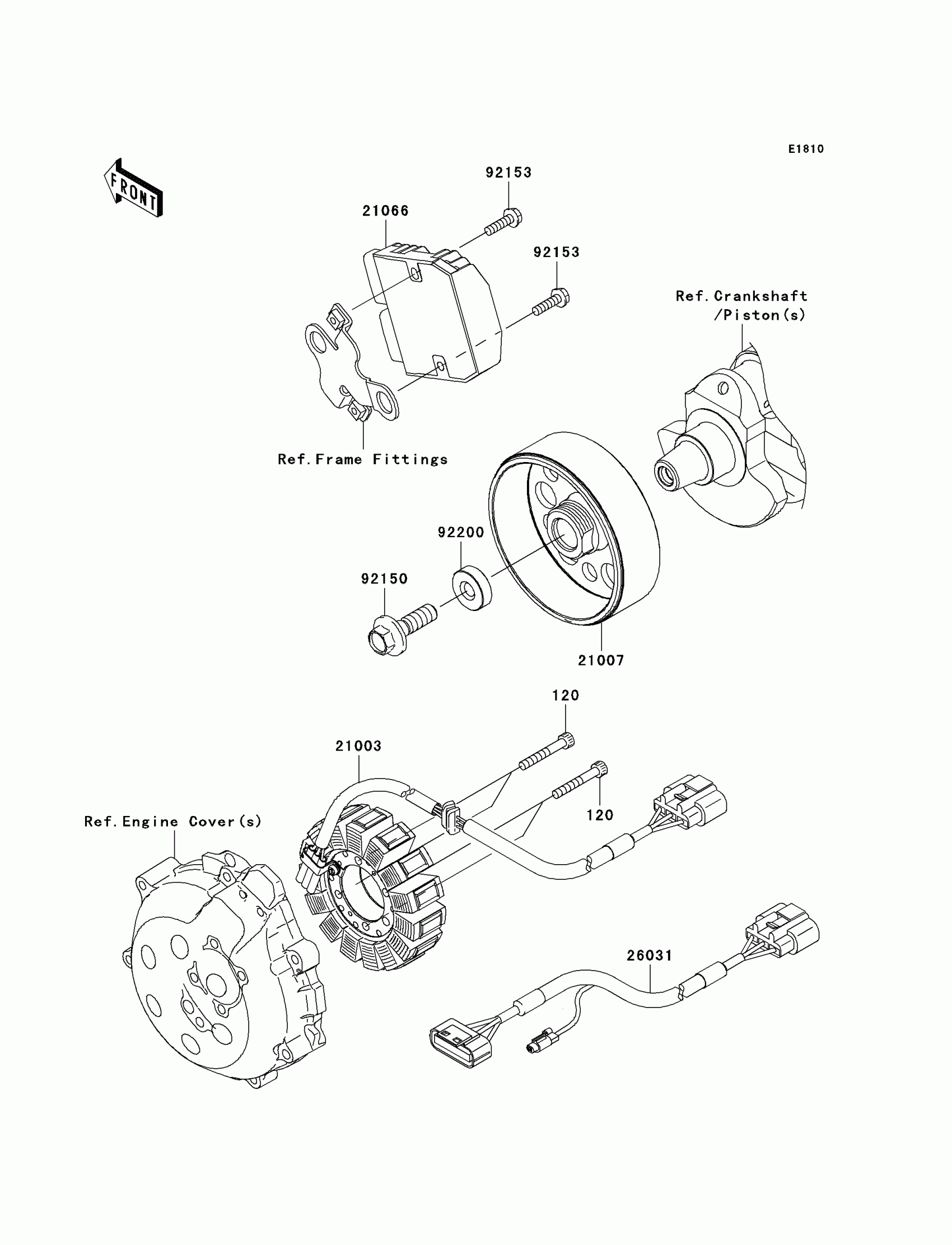

2011 Kawasaki Ninja® ZX™-14 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X40

120CA0640

1
Out of stock

21003

STATOR

21003-0059

1
Out of stock

21007

ROTOR

21007-0067

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-0008

1
Out of stock

26031

HARNESS

26031-0506

1
Out of stock

92150

BOLT,12X40

92150-1717

1
Out of stock

92153

BOLT,FLANGED,6X22

92153-1598

1
Out of stock

92200

WASHER,12X34X9

92200-0369

1
Out of stock
