2005 Kawasaki Ninja® ZX™-12R Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2005 Kawasaki Ninja® ZX™-12R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

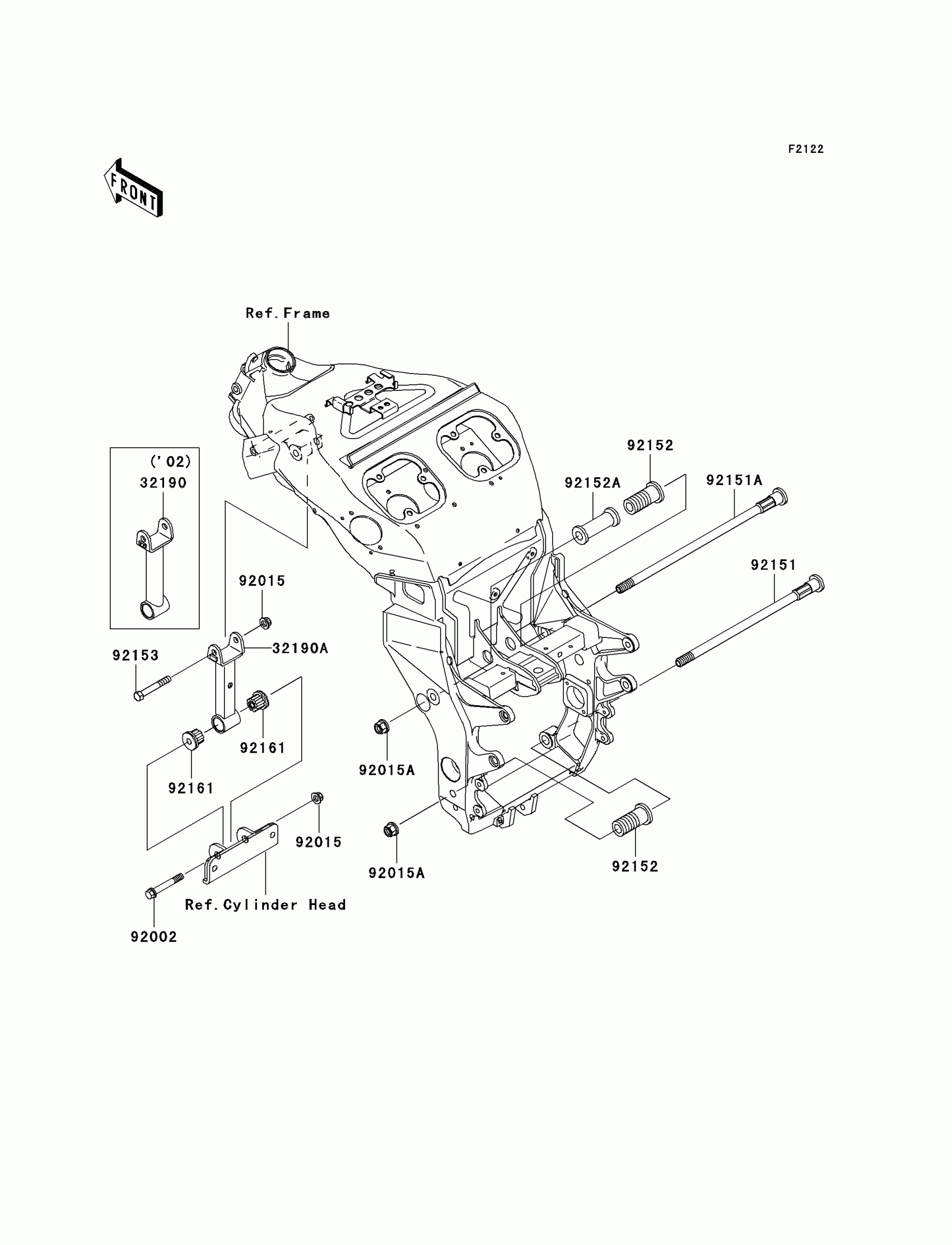

2005 Kawasaki Ninja® ZX™-12R Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32190A

1

$91.51

In stock

92002

BOLT,10X70

92002-1183

1

$8.23

In stock

92015

NUT,FLANGED,10MM

92015-1335

1
Out of stock

92015A

1

$7.04

In stock

92151

BOLT,12X268

92151-1558

1

$32.12

In stock

92151A

BOLT,12X312

92151-1559

1

$32.12

In stock

92152

COLLAR,L=51

92152-1185

1

$36.89

In stock

92152A

COLLAR,L=65

92152-1186

1

$30.09

In stock

92153

BOLT,10X70

92153-1104

1
Out of stock

92161

DAMPER,ENGINE MOUNT

92161-1072

1

$37.64

In stock
