2000 Kawasaki Ninja® ZX™-12R Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2000 Kawasaki Ninja® ZX™-12R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

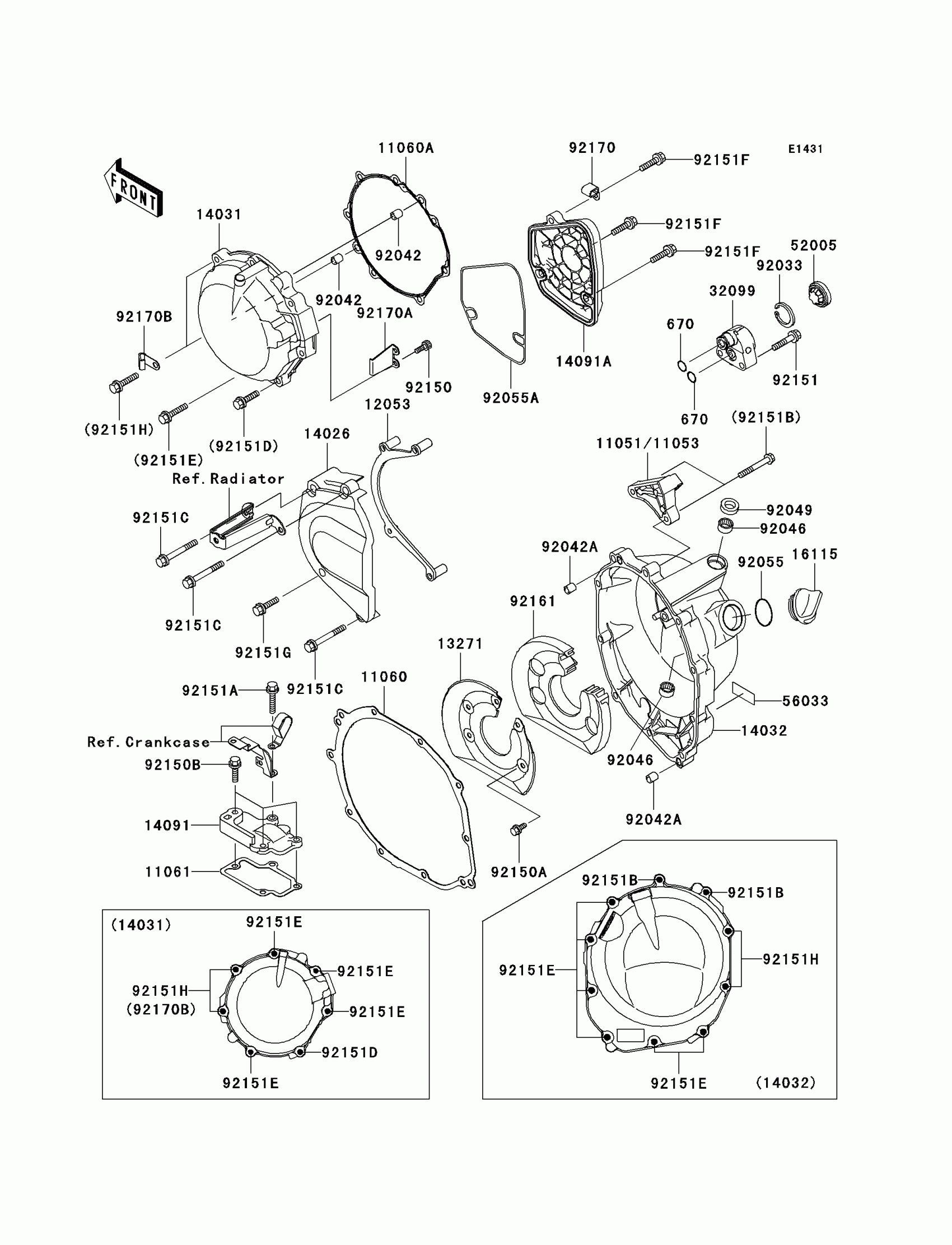

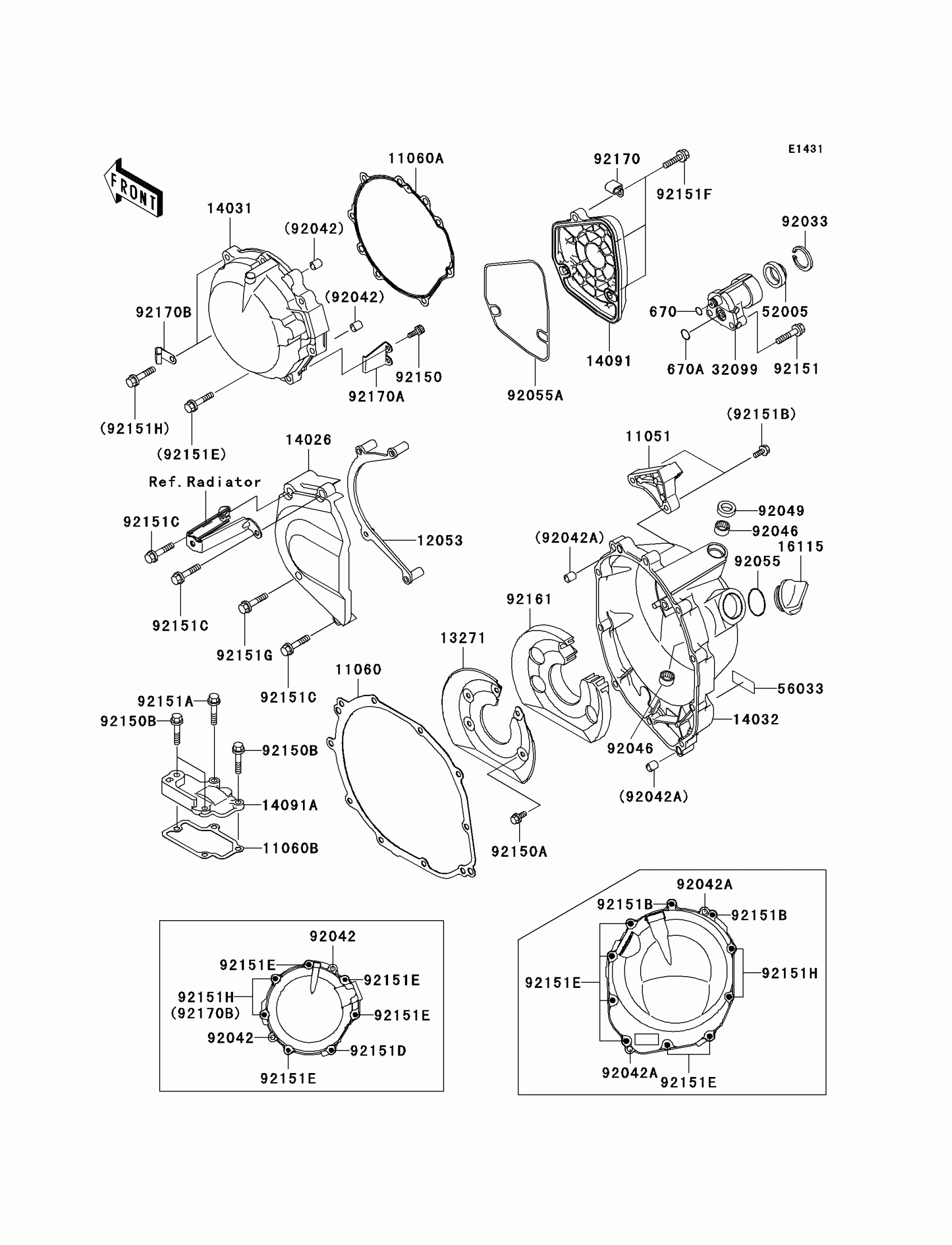

2000 Kawasaki Ninja® ZX™-12R Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

670

O RING,8MM

670D1508

1
Out of stock

670A

O RING,12MM

670D2012

1
Out of stock

11051

BRACKET,CABLE

11051-1933

1
Out of stock

11060

GASKET,CLUTCH COVER

11060-1910

1
Out of stock

11060A

GASKET,GENERATOR COVER

11060-1911

1
Out of stock

11060B

GASKET,BREATHER COVER

11060-1912

1
Out of stock

12053

GUIDE-CHAIN

12053-1434

1
Out of stock

13271

PLATE,SOUND ARRESTER

13271-1229

1
Out of stock

14026

COVER-CHAIN

14026-1266

1
Out of stock

14031

COVER-GENERATOR

14031-1369

1
Out of stock

14032

COVER-CLUTCH

14032-1498

1
Out of stock

14091

COVER,PULSING

14091-1128

1
Out of stock

14091A

COVER,BREATHER

14091-1129

1
Out of stock

16115

CAP-OIL FILLER

16115-1009

1
Out of stock

32099

CASE

32099-1205

1
Out of stock

52005

GAUGE

52005-1120

1
Out of stock

56033

LABEL-MANUAL,OIL CAPACITY

56033-1203

1
Out of stock

92033

RING-SNAP

92033-1305

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92042A

PIN,DOWEL,8X22

92042-044

1
Out of stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1
Out of stock

92055A

RING-O

92055-1601

1
Out of stock

92150

BOLT,SOCKET,5X14

92150-1180

1
Out of stock

92150A

BOLT,5X8

92150-1406

1
Out of stock

92150B

BOLT,6X22

92150-1846

1
Out of stock

92151

BOLT,6X30

92151-1134

1
Out of stock

92151A

BOLT,6X30

92151-1139

1
Out of stock

92151B

BOLT,FLANGED,6X45

92151-1521

1
Out of stock

92151C

BOLT,6X50

92151-1545

1
Out of stock

92151D

BOLT,FLANGED,6X25

92151-1546

1
Out of stock

92151E

BOLT,6X30

92151-1547

1
Out of stock

92151F

BOLT,6X25

92151-1556

1
Out of stock

92151G

BOLT

92151-1773

1
Out of stock

92151H

BOLT,6X30

92151-1883

1
Out of stock

92161

DAMPER,SOUND ARRESTER

92161-1056

1
Out of stock

92170

CLAMP

92170-1577

1
Out of stock

92170A

CLAMP

92170-1894

1
Out of stock

92170B

CLAMP,HARNESS

92170-1900

1
Out of stock
