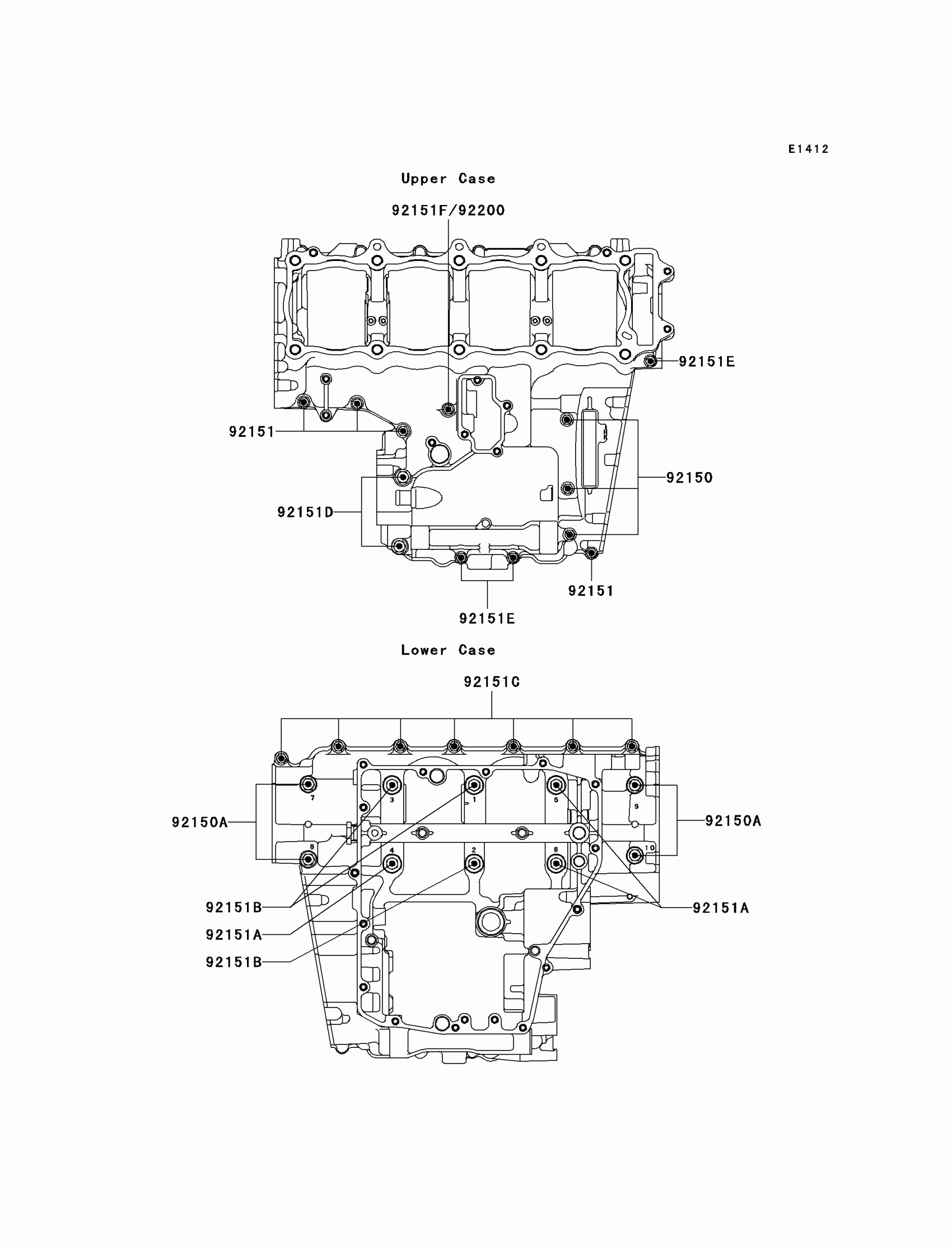

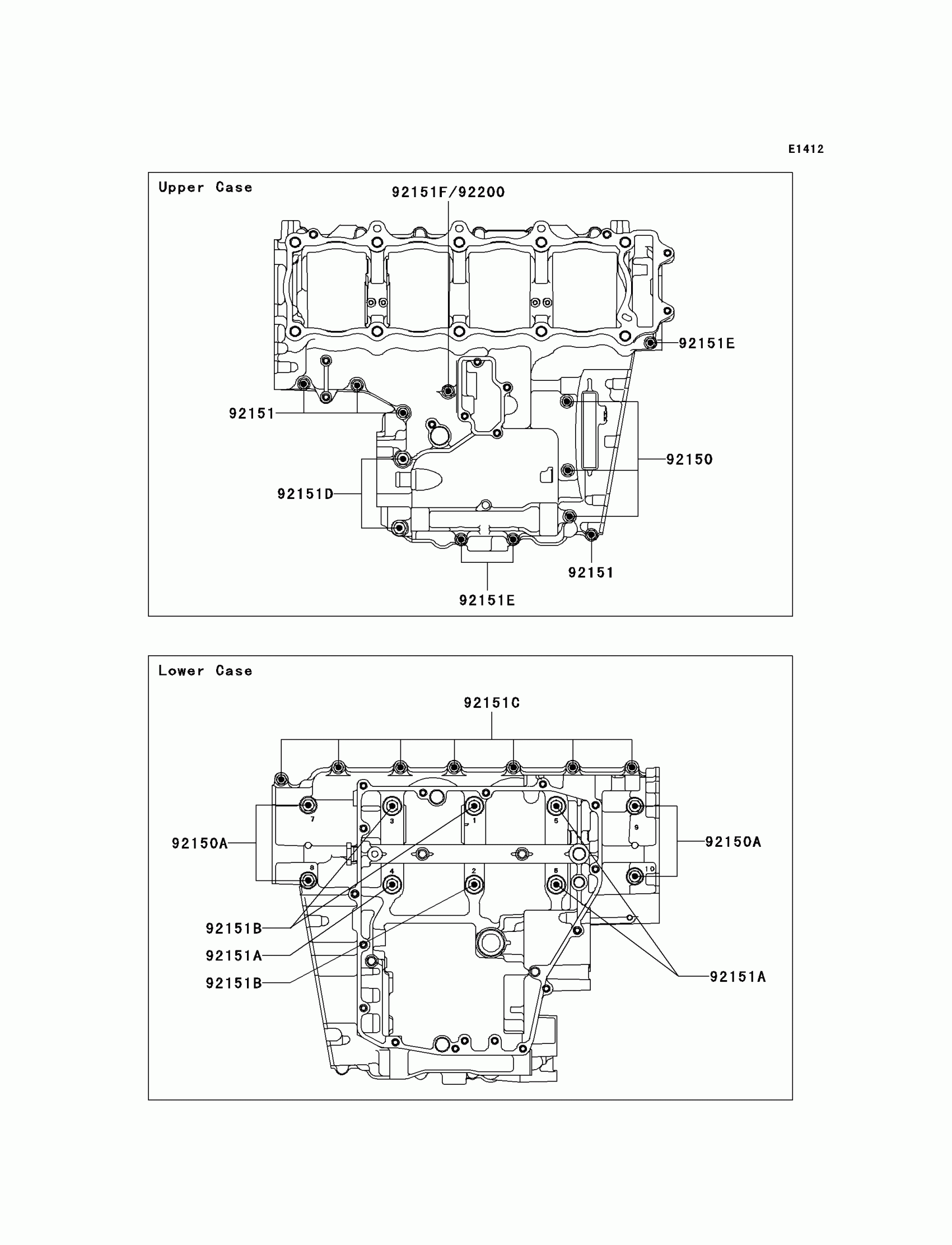

2000 Kawasaki Ninja® ZX™-12R Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 2000 Kawasaki Ninja® ZX™-12R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Kawasaki Ninja® ZX™-12R Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92150

BOLT,FLANGED,7X85

92150-1251

1

$10.63

In stock

92150A

BOLT,8X99

92150-1856

1

$11.47

In stock

92151

BOLT,FLANGED,7X50

92151-1223

1

$3.69

In stock

92151A

BOLT,10X85

92151-1515

1
Out of stock

92151B

BOLT,10X133

92151-1516

1

$14.63

In stock

92151C

BOLT,FLANGED,7X45

92151-1539

1

$3.69

In stock

92151D

BOLT,8X85

92151-1589

1
Out of stock

92151E

BOLT,7X95

92151-1590

1
Out of stock

92151F

BOLT,7X65

92151-1712

1

$4.75

In stock

92200

WASHER,7.2X14X2.3

92200-1521

1
Out of stock
