2000 Kawasaki Ninja® ZX™-12R Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2000 Kawasaki Ninja® ZX™-12R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

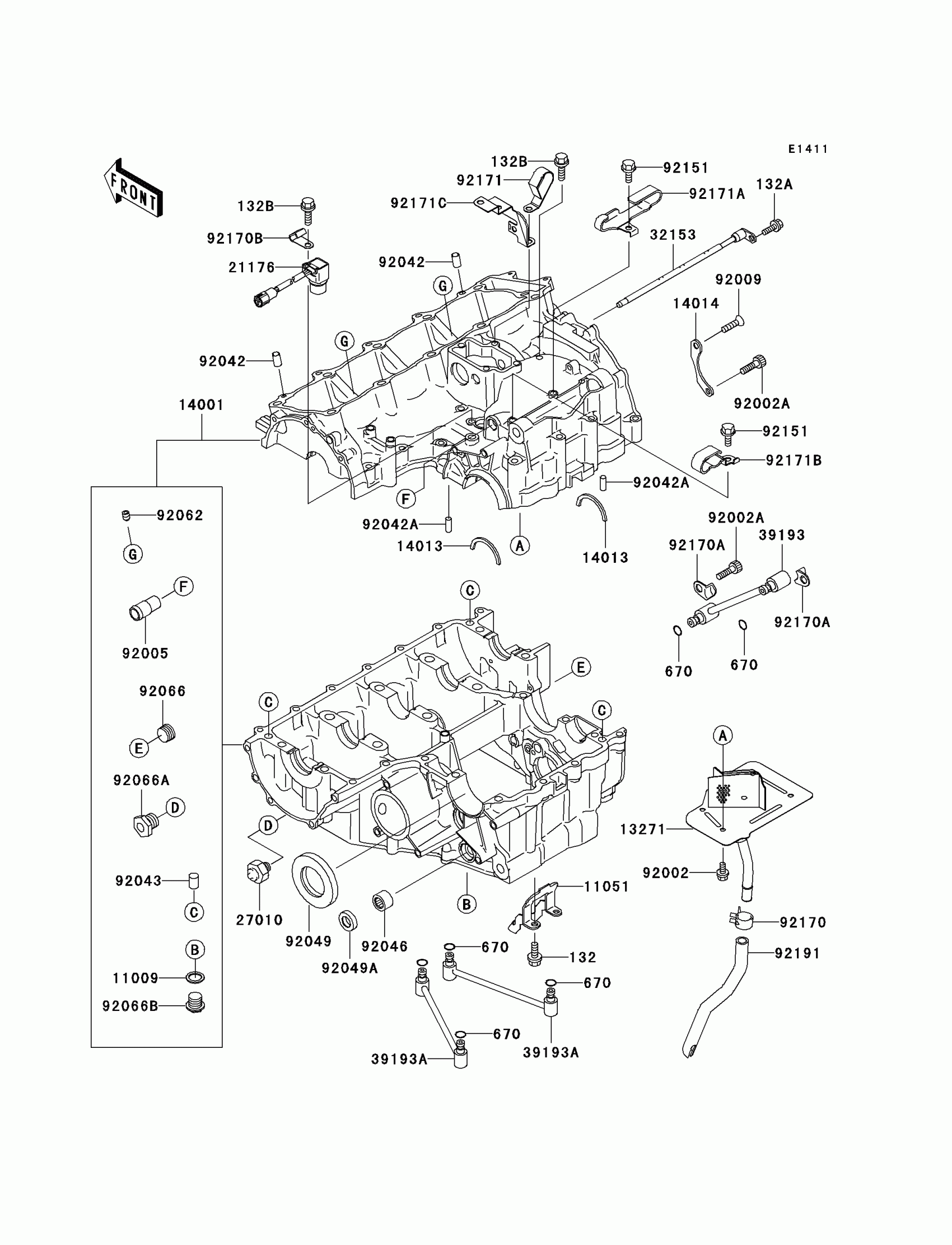

2000 Kawasaki Ninja® ZX™-12R Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X12

132H0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X14

132Y0614

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X16

132Y0616

1
Out of stock

670

O RING

670D1505

1
Out of stock

11009

GASKET,14X19.5X1.4

11009-1461

1
Out of stock

11051

BRACKET,TUBE

11051-1334

1
Out of stock

13271

PLATE,BREATHER

13271-1228

1
Out of stock

14001

SET-CRANKCASE

14001-1283

1
Out of stock

14013

RING-POSITION,T=1.98

14013-1004

1
Out of stock

14014

PLATE-POSITION

14014-1140

1
Out of stock

21176

SENSOR,SPEEDOMETER

21176-1106

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1313

1
Out of stock

32153

PIPE,OIL

32153-1139

1
Out of stock

39193

PIPE-OIL

39193-1020

1
Out of stock

39193A

PIPE-OIL,OIL PAN

39193-1047

1
Out of stock

92002

BOLT,6X10

92002-1449

1
Out of stock

92002A

BOLT,SOCKET,6X16

92002-1778

1
Out of stock

92005

FITTING,BREATHER

92005-1238

1
Out of stock

92009

SCREW,6X16

92009-1360

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92042A

PIN,DOWEL,6X16

92042-016

1
Out of stock

92043

PIN,10X14

92043-1506

1
Out of stock

92046

BEARING-NEEDLE,HK1312

92046-1148

1
Out of stock

92049

SEAL-OIL,SD40X62X8

92049-1510

1
Out of stock

92049A

SEAL-OIL,TC13225.5

92049-1519

1
Out of stock

92062

NOZZLE,5X6,SILVER

92062-1086

1
Out of stock

92066

PLUG,PT3/8X12

92066-1252

1
Out of stock

92066A

PLUG,PT3/8X3

92066-1513

1
Out of stock

92066B

PLUG,DRAIN

92066-2196

1
Out of stock

92151

BOLT,6X12

92151-1239

1
Out of stock

92170

CLAMP,BRAKE HOSE

92170-1434

1
Out of stock

92170A

CLAMP

92170-1578

1
Out of stock

92170B

CLAMP,HARNESS

92170-1900

1
Out of stock

92171

CLAMP

92171-1099

1
Out of stock

92171A

CLAMP

92171-1133

1
Out of stock

92171B

CLAMP

92171-1216

1
Out of stock

92171C

CLAMP

92171-1217

1
Out of stock

92191

TUBE,BREATHER

92191-1355

1
Out of stock
