2000 Kawasaki Ninja® ZX™-12R Balancer Diagram

← All diagrams

Find the part on the Balancer diagram for your 2000 Kawasaki Ninja® ZX™-12R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

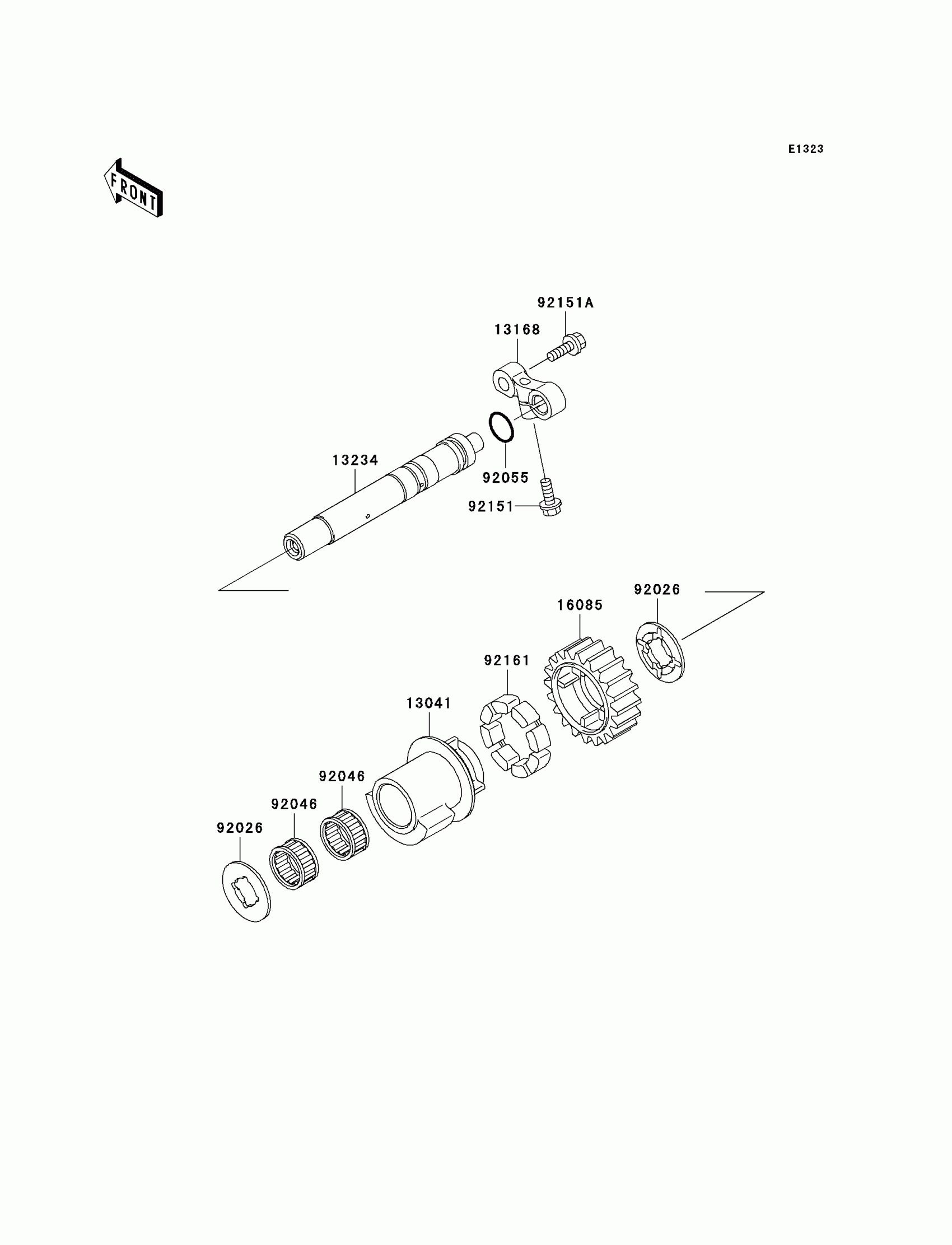

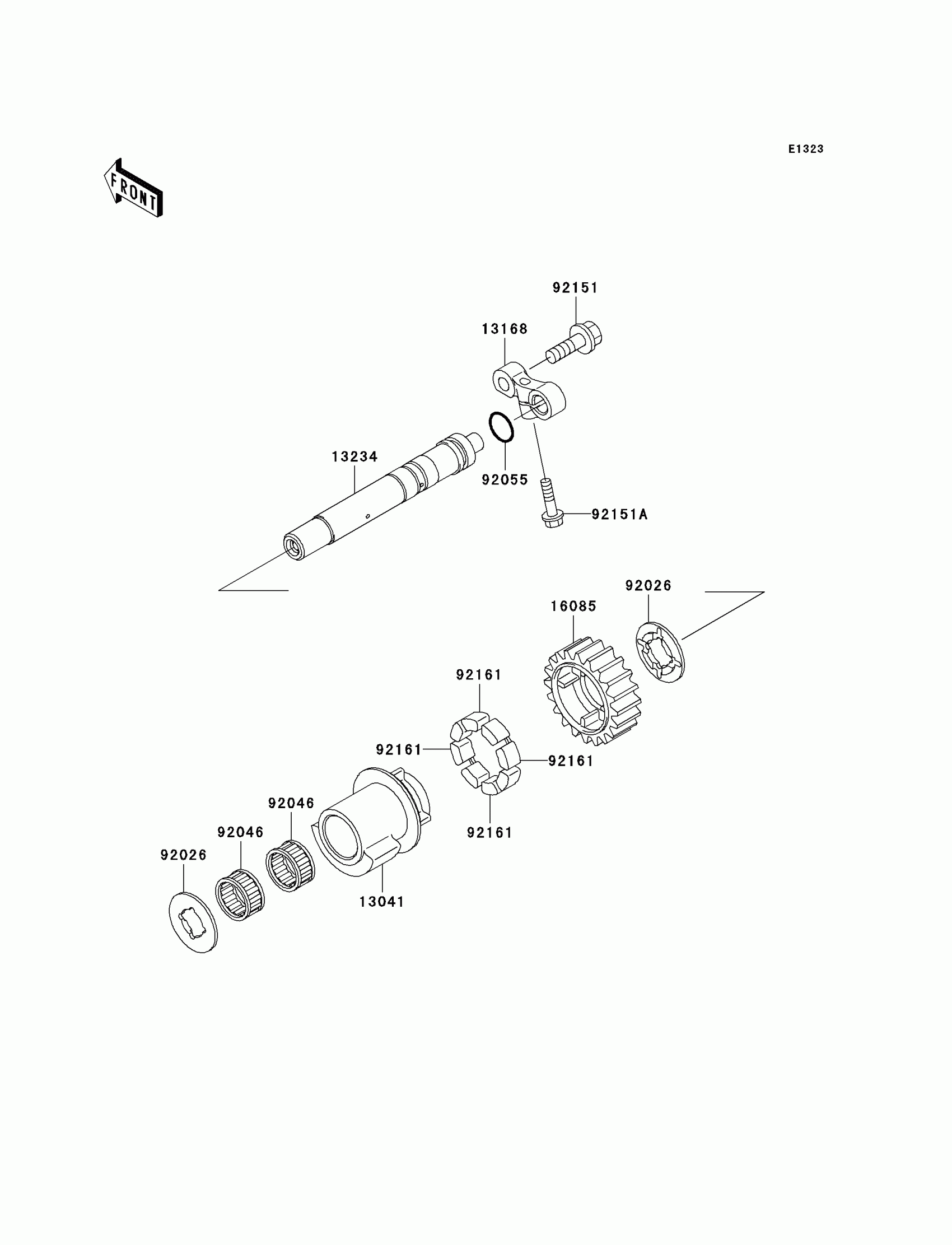

2000 Kawasaki Ninja® ZX™-12R Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13041

BALANCER

13041-1125

1
Out of stock

13168

LEVER

13168-1671

1
Out of stock

13234

SHAFT-COMP

13234-1109

1
Out of stock

16085

GEAR

16085-1324

1
Out of stock

92026

SPACER

92026-1540

1
Out of stock

92046

BEARING-NEEDLE

92046-1266

1
Out of stock

92055

RING-O,16.8X2.4

92055-1258

1
Out of stock

92151

BOLT,6X25

92151-1130

1
Out of stock

92151A

BOLT,8X25

92151-1527

1
Out of stock

92161

DAMPER

92161-1055

1
Out of stock
