1993 Kawasaki Ninja® ZX™-11 Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

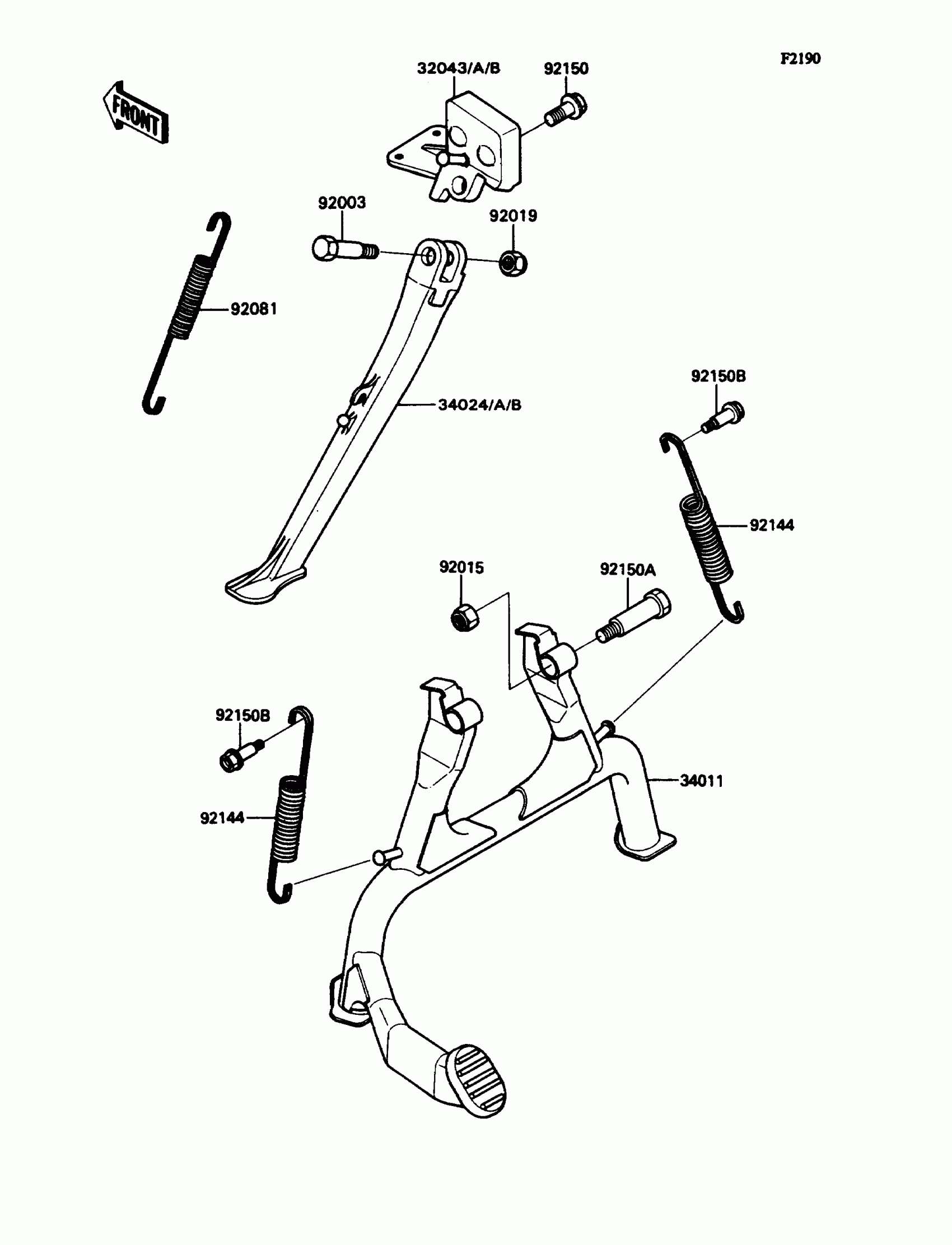

1993 Kawasaki Ninja® ZX™-11 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32043B

BRACKET-STAND,SIDE,BLACK

32043-1344-10

1

$93.00

In stock

34011

STAND-CENTER

34011-1145

1

$171.61

In stock

34024B

STAND-SIDE,BLACK

34024-1249-10

1

$149.68

In stock

92003

BOLT,SIDE STAND

92003-079

1
Out of stock

92015

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92019

NUT,LOCK,10MM

92019-021

1

$4.83

In stock

92081

SPRING,SIDE STAND

92081-1676

1

$11.19

In stock

92144

SPRING,CENTER STAND

92144-1334

1

$21.29

In stock

92150

BOLT,FLANGED,10X25

92150-1065

1
Out of stock

92150A

1

$15.02

In stock

92150B

BOLT,6MM

92150-1113

1

$7.56

In stock
← Seat Step →
