1993 Kawasaki Ninja® ZX™-11 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

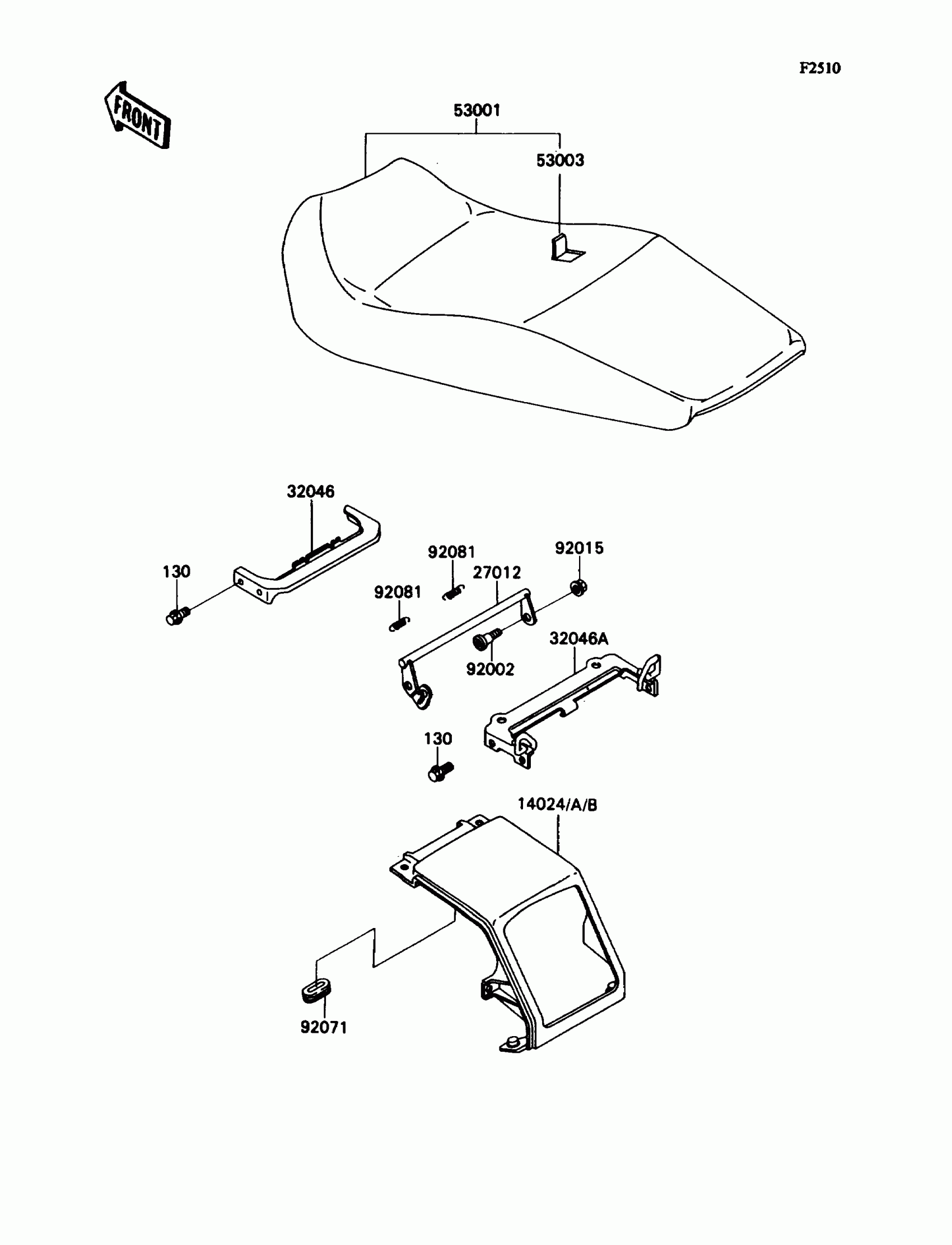

1993 Kawasaki Ninja® ZX™-11 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,TAIL,EBONY

14024-1867-H8

1
Out of stock

27012

HOOK,SEAT

27012-1422

1
Out of stock

32046

BRACKET-SEAT,FR

32046-1342

1
Out of stock

32046A

BRACKET-SEAT,RR

32046-1344

1
Out of stock

53001

SEAT-ASSY,DUAL,BLACK

53001-1596-MA

1
Out of stock

53003

LEATHER,SEAT,BLACK

53003-1231-MA

1
Out of stock

92002

BOLT,SOCKET,6MM

92002-1616

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92071

GROMMET

92071-1002

1
Out of stock

92081

SPRING,HOOK RETURN

92081-1580

1
Out of stock

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock
