1993 Kawasaki Ninja® ZX™-11 Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

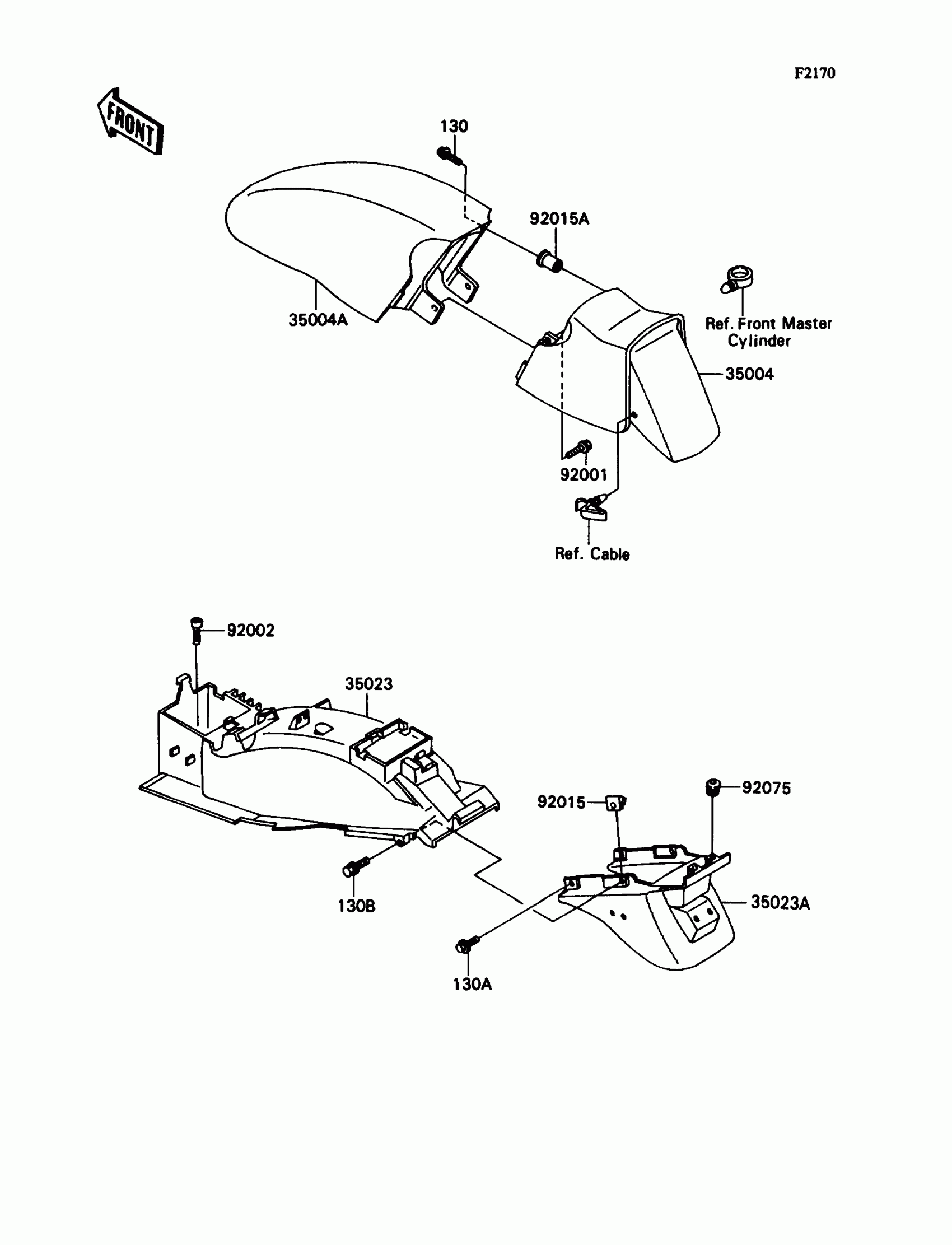

1993 Kawasaki Ninja® ZX™-11 Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,RR,EBONY

35004-1255-H8

1
Out of stock

35004A

FENDER-FRONT,FR,EBONY

35004-1275-H8

1
Out of stock

35023

FENDER-REAR,FR

35023-1257

1
Out of stock

35023A

FENDER-REAR,RR

35023-1258

1
Out of stock

92001

BOLT,W/SP,6X16

92001-1763

1
Out of stock

92002

BOLT,UPSET-WP,6X12

92002-1884

1
Out of stock

92015

NUT,6MM

92015-1094

1
Out of stock

92015A

NUT,WELL,5MM

92015-1757

1
Out of stock

92075

DAMPER,6X16X7

92075-1011

1
Out of stock

130

BOLT-FLANGED

130J0520

1
Out of stock

130A

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

130B

BOLT-FLANGED,6X35

130J0635

1
Out of stock
