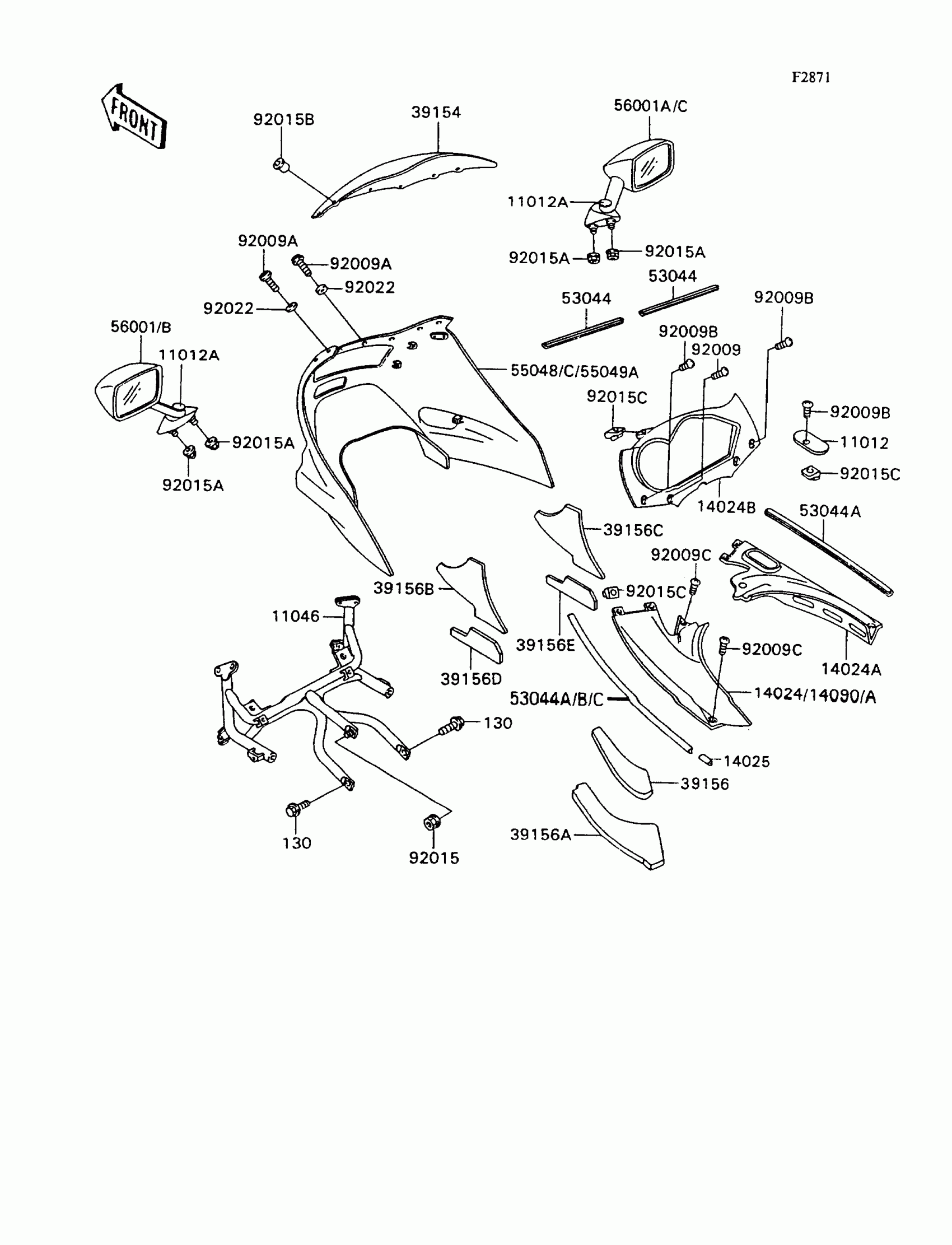

1993 Kawasaki Ninja® ZX™-11 Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki Ninja® ZX™-11 Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,INNER COWLING,RH

11012-1742

1
Out of stock

11012A

CAP,MIRROR,BLACK

11012-1751-6Z

1
Out of stock

11046

BRACKET,UPP COWLING

11046-1892

1
Out of stock

14024A

COVER,INNER COWLING,RH

14024-1869

1
Out of stock

14024B

COVER,INNER COWLING,FR

14024-1939

1
Out of stock

14090

COVER,INNER COWLING,LH

14090-1123

1
Out of stock

39154

WINDSHIELD

39154-1108

1
Out of stock

39156

PAD,INNER COWLING COVER,LH,IN

39156-1192

1
Out of stock

39156A

PAD,INNER COWLING COVER,LH,OUT

39156-1193

1
Out of stock

39156B

PAD,UPP COWLING,LH,UPP

39156-1194

1
Out of stock

39156C

PAD,UPP COWLING,RH,UPP

39156-1195

1
Out of stock

39156D

PAD,UPP COWLING,LH,LWR

39156-1196

1
Out of stock

39156E

PAD,UPP COWLING,RH,LWR

39156-1197

1
Out of stock

53044

TRIM,COWLING COVER

53044-1106

1
Out of stock

53044A

TRIM,L=760

53044-1240

1
Out of stock

53044B

TRIM,L=810

53044-1247

1
Out of stock

55049A

COWLING.,UPP,EBONY

55049-5061-H8

1
Out of stock

56001B

MIRROR-ASSY,LH,EBONY

56001-1390-H8

1
Out of stock

56001C

MIRROR-ASSY,RH,EBONY

56001-1391-H8

1
Out of stock

92009

SCREW,5X12,BLACK

92009-1182

1
Out of stock

92009A

SCREW,6X10

92009-1530

1
Out of stock

92009B

SCREW,5X14

92009-1653

1
Out of stock

92009C

SCREW,5X16,BLACK

92009-1654

1
Out of stock

92015

NUT,FLANGED,8MM,BLACK

92015-1183

1
Out of stock

92015A

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92015B

NUT,WELL,5MM

92015-1757

1
Out of stock

92015C

NUT,5MM

92015-1798

1
Out of stock

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

1
Out of stock

130

BOLT-FLANGED,8X12

130J0812

1
Out of stock
