1993 Kawasaki Ninja® ZX™-11 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

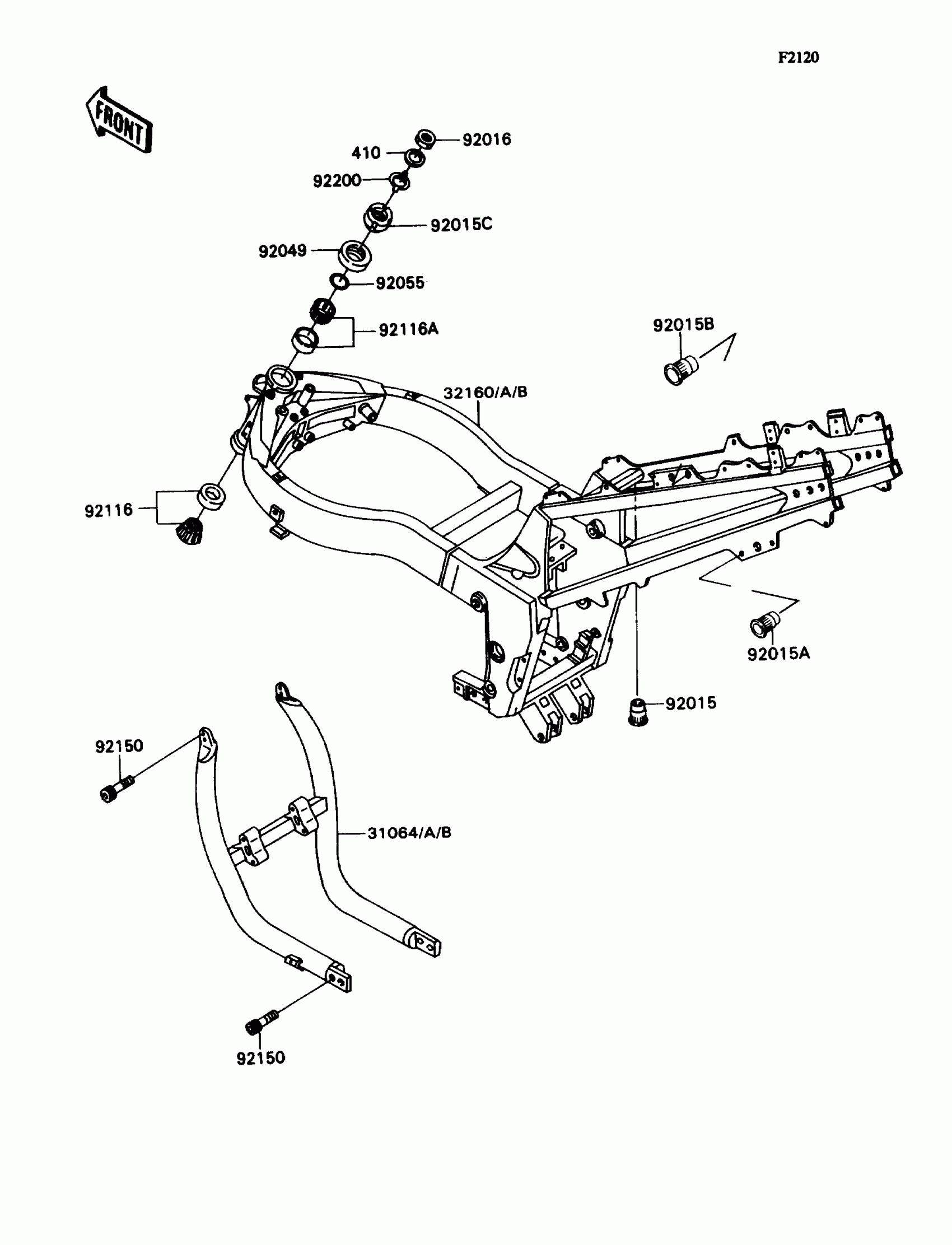

1993 Kawasaki Ninja® ZX™-11 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

31064B

1

$624.96

In stock

32160B

FRAME-COMP,BLACK

32160-1108-10

1

$3,435.95

In stock

92015

NUT,POP,6MM,L=15

92015-1791

1

$3.72

In stock

92015A

NUT,POP,6MM,L=16.5

92015-1792

1

$3.72

In stock

92015B

NUT,POP,8MM,L=18

92015-1794

1

$4.16

In stock

92015C

NUT,28MM

92015-1813

1

$28.22

In stock

92016

NUT,20MM

92016-028

1

$7.86

In stock

92049

SEAL-OIL

92049-1351

1
Out of stock

92055

RING-O

92055-1470

1

$3.48

In stock

92116

1

$76.75

In stock

92116A

1

$76.74

In stock

92150

BOLT,SOCKET,10X30

92150-1405

1

$7.58

In stock

92200

WASHER,CLAW,20.5X32X2.3

92200-1041

1
Out of stock

410

W-PLAIN-S,20MM

410F2000

1

$4.63

In stock
