Find the part on the Radiator diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

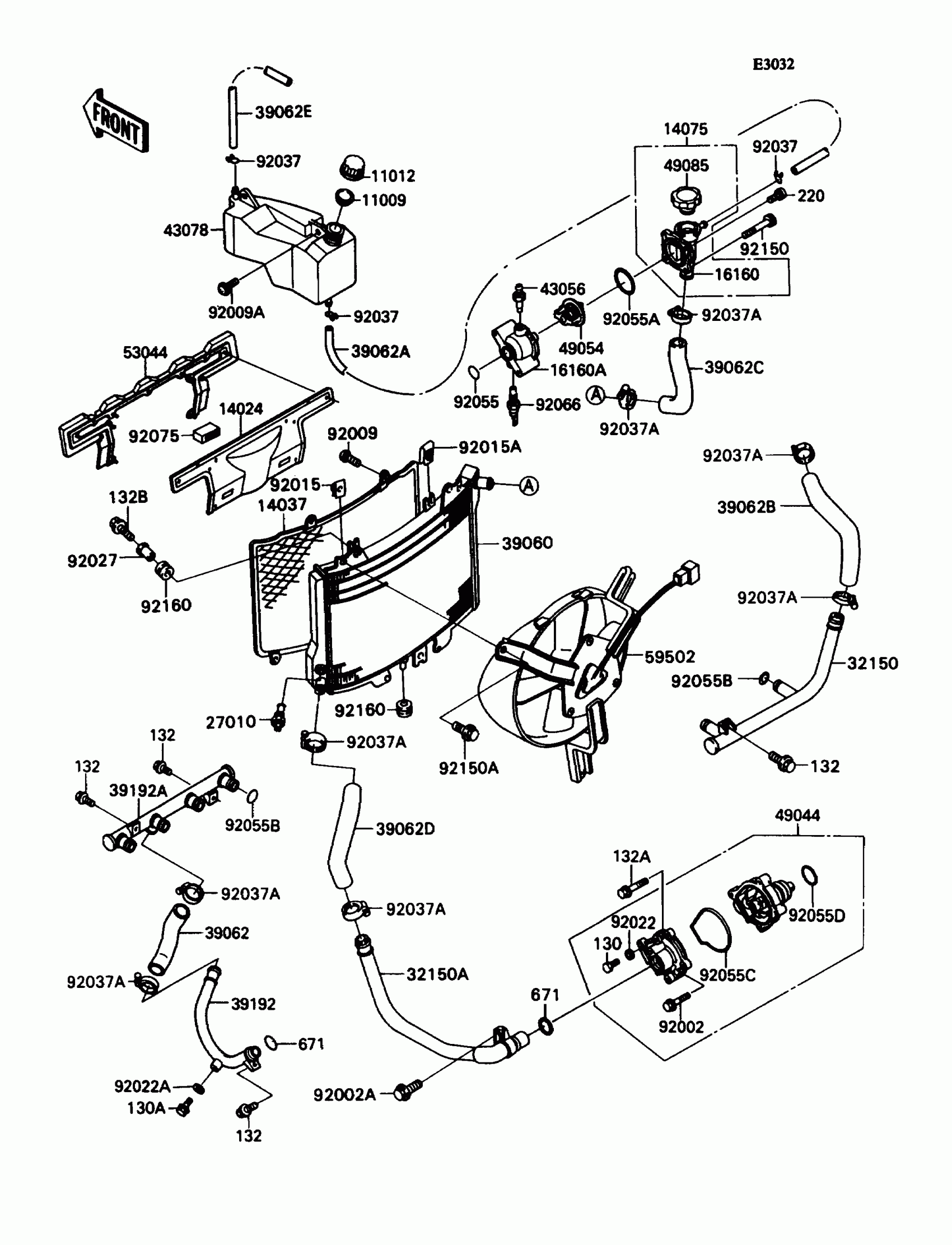

1993 Kawasaki Ninja® ZX™-11 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

14024

COVER,HEAT

14024-1627

1
Out of stock

14037

SCREEN,RADIATOR

14037-1125

1

$98.73

In stock

14075

CAP-ASSY

14075-1068

1

$174.32

In stock

16160

BODY,THERMOSTAT,UPP

16160-1116

1

$174.32

In stock

16160A

BODY,THERMOSTAT

16160-1147

1
Out of stock

27010

SWITCH,FAN

27010-1202

1

$91.74

In stock

32150

PIPE

32150-1482

1

$131.87

In stock

32150A

PIPE

32150-1483

1

$123.77

In stock

39060

RADIATOR

39060-1094

1

$1,041.40

In stock

39062

1

$41.57

In stock

39062A

1

$38.54

In stock

39062B

HOSE-COOLING

39062-1375

1
Out of stock

39062C

HOSE-COOLING

39062-1376

1
Out of stock

39062D

1

$38.58

In stock

39062E

HOSE-COOLING

39062-1430

1
Out of stock

39192

1

$79.65

In stock

39192A

PIPE-WATER,CYLINDER

39192-1031

1

$154.03

In stock

43056

BREATHER

43056-003

1

$22.74

In stock

43078

RESERVOIR

43078-1110

1
Out of stock

49044

PUMP-WATER

49044-1062

1

$301.81

In stock

49054

THERMOSTAT

49054-1051

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1054

1

$48.74

In stock

53044

TRIM

53044-1201

1

$57.17

In stock

59502

FAN-ASSY

59502-1093

1

$813.51

In stock

92002

BOLT,6X22

92002-1392

1

$4.19

In stock

92002A

BOLT,6X16

92002-1571

1
Out of stock

92009

SCREW,TAPPING,6MM

92009-1261

1
Out of stock

92009A

SCREW,6X14

92009-1662

1
Out of stock

92015

NUT

92015-1487

1

$3.80

In stock

92015A

NUT,6MM

92015-1758

1

$5.45

In stock

92022

WASHER,6MM

92022-1976

1
Out of stock

92022A

WASHER,6.2X11X1

92022-304

1
Out of stock

92027

1

$8.16

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037A

CLAMP,COOLING HOSE

92037-1985

1

$6.51

In stock

92055

RING-O,27.7X2.4

92055-091

1

$4.93

In stock

92055A

RING-O,53.5X2.6

92055-112

1

$5.25

In stock

92055B

RING-O

92055-1282

1

$4.16

In stock

92055C

1

$7.43

In stock

92055D

RING-O,33.2X2.4

92055-1424

1

$4.97

In stock

92066

PLUG,SENSOR WATER

92066-1183

1

$60.95

In stock

92075

DAMPER

92075-1446

1

$4.17

In stock

92150

BOLT,SOCKET,5X55

92150-1071

1
Out of stock

92150A

BOLT,6X12

92150-1186

1

$2.92

In stock

92160

DAMPER

92160-1007

1

$4.37

In stock

130

BOLT-FLANGED,6X10

130C0610

1
Out of stock

130A

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X40

132J0640

1
Out of stock

132B

BOLT-FLANGED-SMALL,8X25

132J0825

1
Out of stock

220

SCREW-PAN-CROS,5X14

220D0514

1
Out of stock

671

O RING,25MM

671B2525

1

$3.97

In stock
