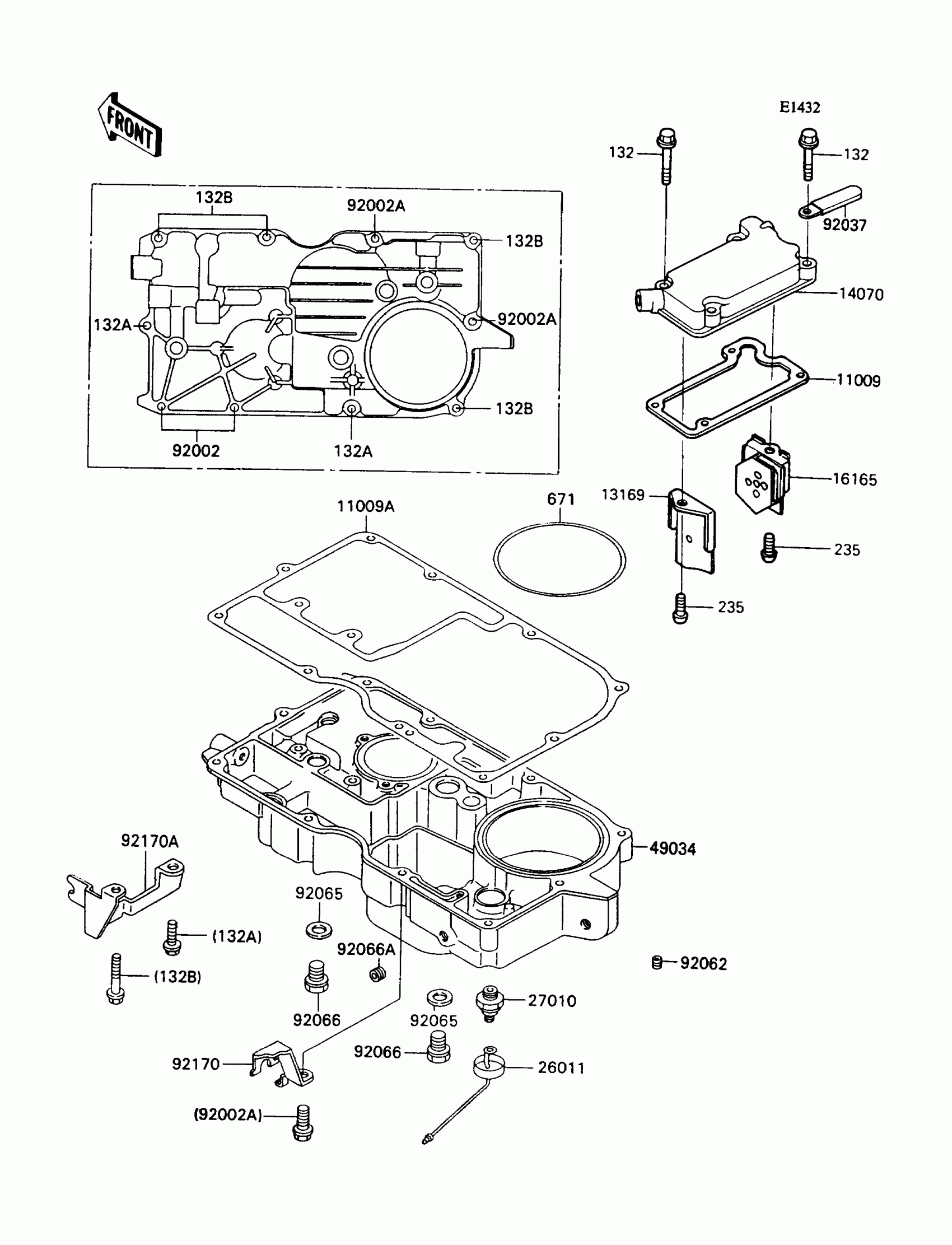

Kawasaki Ninja® ZX™-11 Breather Body/Oil Pan Diagram

Description

Price

11009

GASKET,BREATHER BODY

11009-1861

Unavailable

11009A

GASKET,OIL PAN

11009-1981

$22.69

13169

PLATE,BREATHER

13169-1967

$7.47

14070

BODY-BREATHER

14070-1072

$89.85

16165

SEPARATOR,OIL

16165-1053

$49.85

26011

WIRE-LEAD

26011-1371

$19.97

27010

SWITCH,OIL PRESSURE

27010-1155

$35.72

49034

PAN-OIL

49034-1087

$234.53

92002

BOLT,6X25

92002-1344

Unavailable

92002A

BOLT,6X40

92002-1345

$7.58

92037

CLAMP,L=45

92037-1539

$4.42

92062

NOZZLE,BLACK

92062-011

$8.37

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

92066A

PLUG,PT1/8X7

92066-1342

$5.66

92170

CLAMP,OIL TUBE

92170-1188

$8.63

92170A

CLAMP,OIL TUBE

92170-1189

$12.64

132

BOLT-FLANGED-SMALL,6X25

132E0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

132B

BOLT-FLANGED-SMALL,6X40

132J0640

Unavailable

235

SCREW-PAN-WP-CROS,6X10

235B0610

Unavailable

671

O RING,90MM

671B2590

$7.54
