1998 Kawasaki Ninja® ZX™-11 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1998 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

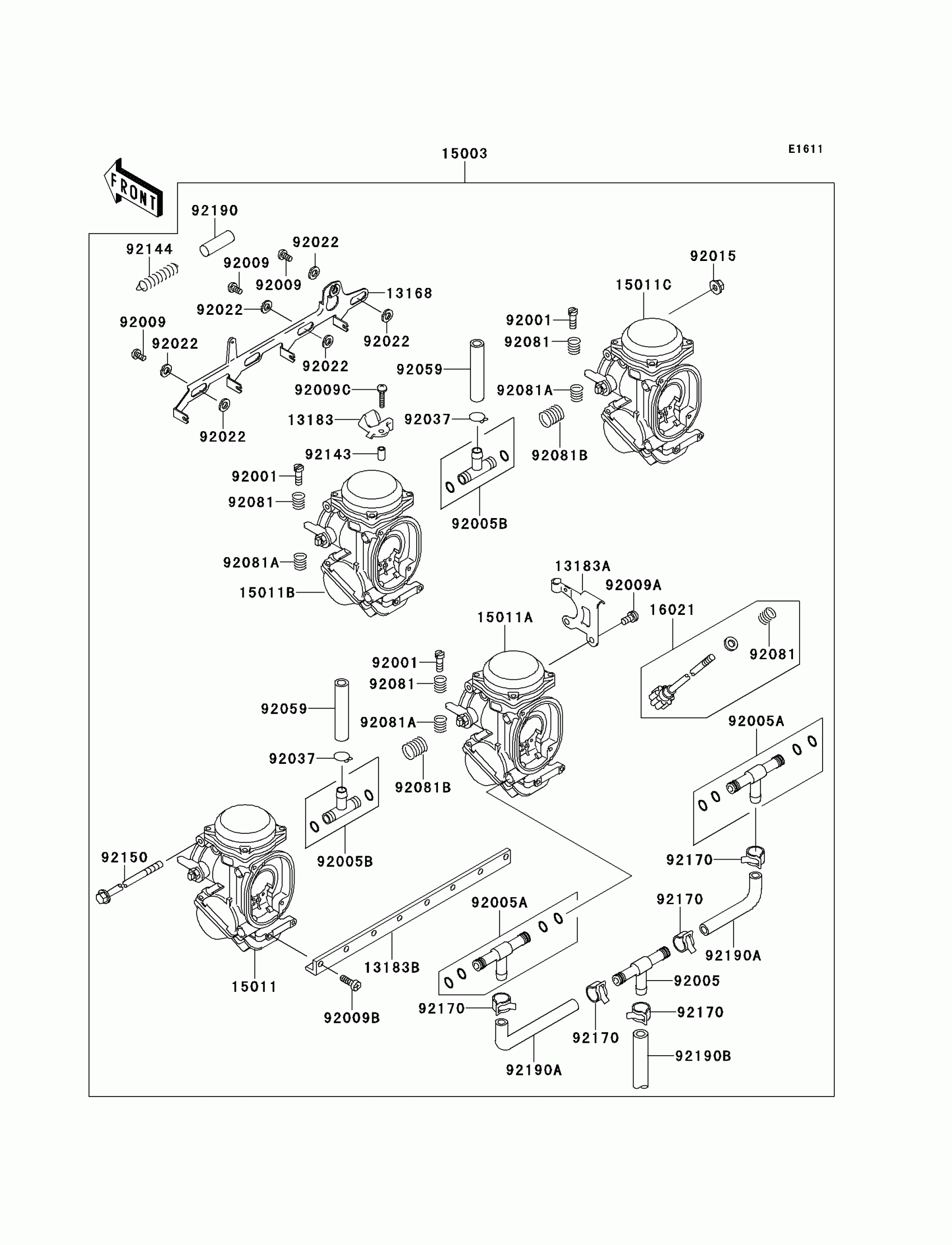

1998 Kawasaki Ninja® ZX™-11 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13168

LEVER,STARTER

13168-1405

1
Out of stock

13183

PLATE,STARTER CABLE

13183-1592

1
Out of stock

13183A

PLATE,THROTTLE CABLE

13183-1606

1
Out of stock

13183B

PLATE,CARBURETOR,STAY

13183-1321

1
Out of stock

15003B

CARBURETOR-ASSY

15003-1379

1
Out of stock

15011

CARBURETOR,LH,OUTSODE

15011-1395

1
Out of stock

15011A

CARBURETOR,LH,INSIDE

15011-1396

1
Out of stock

15011B

CARBURETOR,RH,INSIDE

15011-1397

1
Out of stock

15011C

CARBURETOR,RH,OUTSID

15011-1398

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1190

1
Out of stock

92001

BOLT,THROTTLE ADJUST

92001-1998

1
Out of stock

92005

FITTING,T-TYPE

92005-1119

1
Out of stock

92005A

FITTING

92005-1294

1
Out of stock

92005C

FITTING

92005-1338

1
Out of stock

92009

SCREW

92009-1262

1
Out of stock

92009A

SCREW,5X10

92009-1365

1
Out of stock

92009B

SCREW,5X14

92009-1591

1
Out of stock

92009C

SCREW,4X18

92009-1632

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

1
Out of stock

92037

CLAMP,TUBE

92037-1531

1
Out of stock

92059

TUBE,7X11X45

92059-1738

1
Out of stock

92081

SPRING

92081-1620

1
Out of stock

92081A

SPRING,THROTTLE ADJUST LWR

92081-1621

1
Out of stock

92081B

SPRING,THROTTLE ADJUST CNT

92081-1622

1
Out of stock

92143

COLLAR,4X5.2X9.6

92143-1265

1
Out of stock

92144

SPRING,STARTER LEVER

92144-1518

1
Out of stock

92150

BOLT,5X305

92150-1211

1
Out of stock

92170

CLAMP,TUBE

92170-1051

1
Out of stock

92190

TUBE,STARTER SPRING

92190-1157

1
Out of stock

92190A

TUBE,L=110

92190-1165

1
Out of stock

92190B

TUBE,7.3X12.5X89

92190-1466

1
Out of stock
