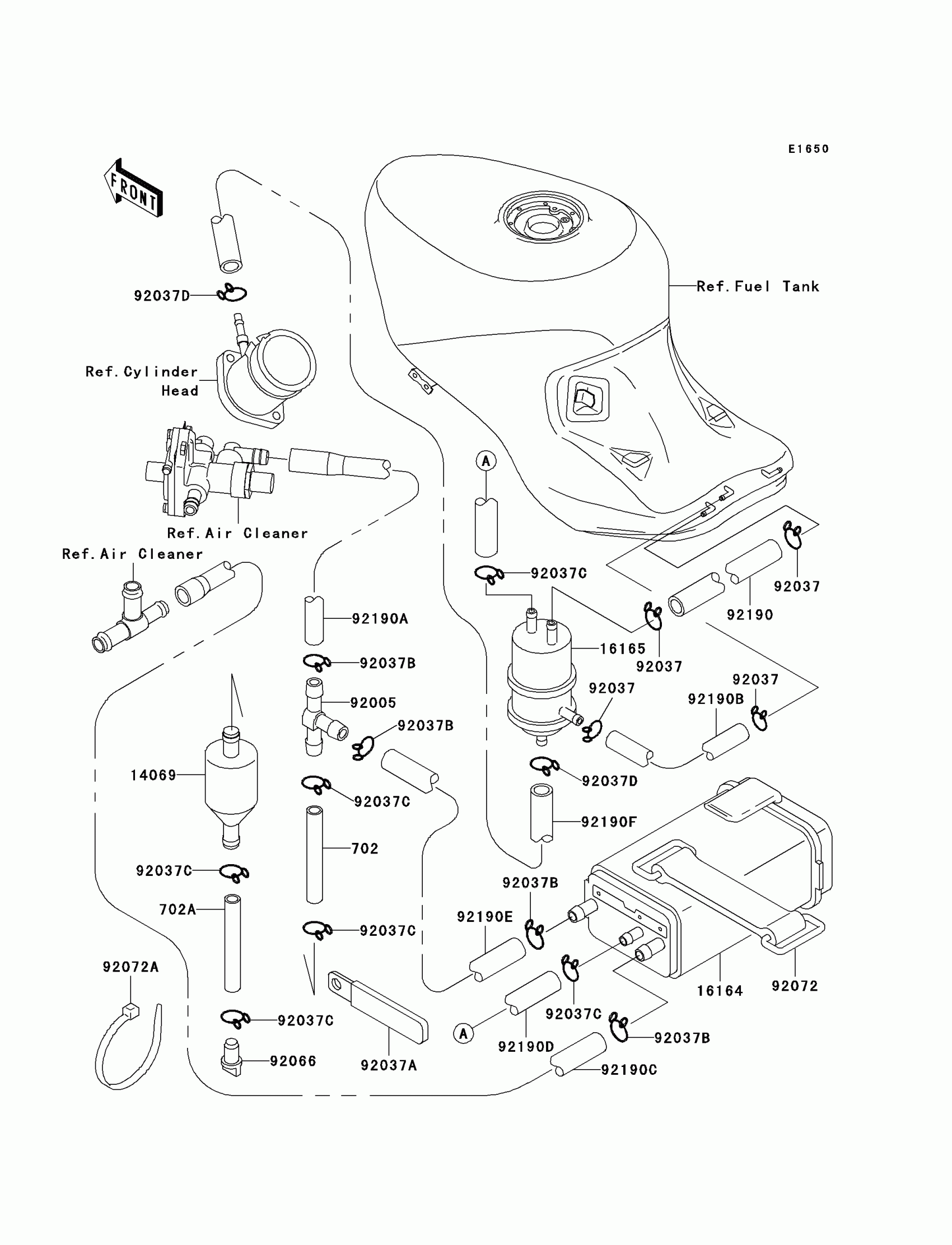

Kawasaki Ninja® ZX™-11 Fuel Evaporative System Diagram

Description

Price

702

TUBE-RUBBER

702A07150

$7.17

702A

TUBE-RUBBER

702A07330

Unavailable

14069

BREATHER

14069-1051

$7.76

16164

CANISTER

16164-1064

$148.51

16165

SEPARATOR

16165-1001

$79.83

92005

FITTING,T-TYPE

92005-1119

$23.15

92037

CLAMP,TUBE

92037-010

$2.99

92037A

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037B

CLAMP-HOSE

92037-1104

$1.09

92037C

CLAMP,TUBE

92037-147

$5.61

92037D

CLAMP

92037-1712

$3.81

92066

PLUG,DRAIN

92066-1211

$6.48

92072

BAND,BATTERY,L=105

92072-1173

$10.44

92072A

BAND,L=202

92072-1195

$1.16

92190

TUBE,TANK-SEPARATOR,BLUE

92190-1374

Unavailable

92190A

TUBE,VALVE-FITTING,YELLOW

92190-1376

Unavailable

92190B

TUBE,TANK-SEPARATOR,RED

92190-1377

Unavailable

92190C

TUBE,CANISTER-AIRFILTER,GREEN

92190-1378

Unavailable

92190D

TUBE,CANISTER-SEPARATOR,BLUE

92190-1379

$25.75

92190E

TUBE,FITTING-CANISTER,YELLOW

92190-1430

$23.41

92190F

TUBE,SEPARATOR-HOLDER,WHITE

92190-1431

Unavailable
