1993 Kawasaki Ninja® ZX™-11 Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

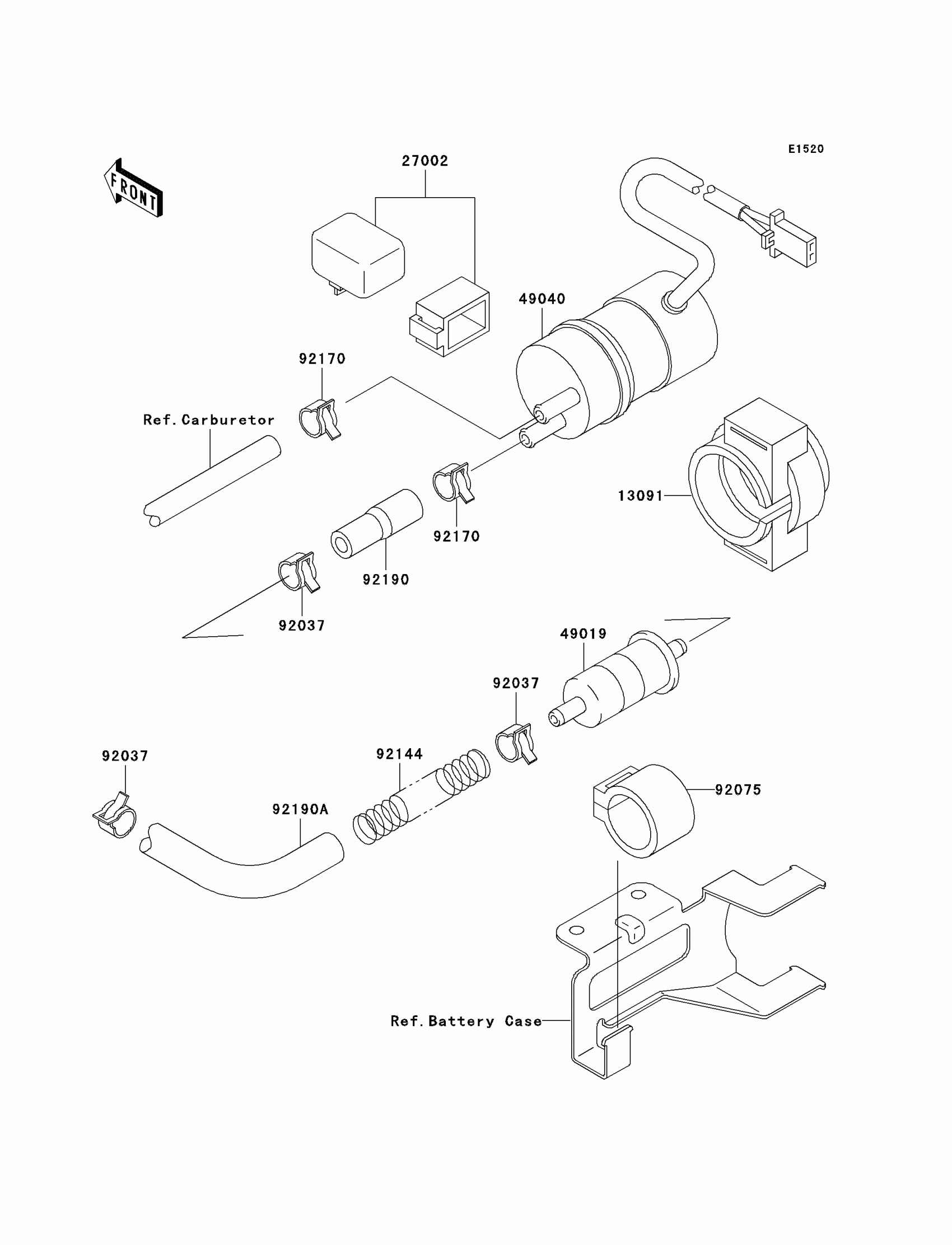

1993 Kawasaki Ninja® ZX™-11 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER

13091-1512

1
Out of stock

27002

RELAY-ASSY

27002-1065

1
Out of stock

49019

FILTER-FUEL

49019-1055

1
Out of stock

49040

PUMP-FUEL

49040-1061

1
Out of stock

92075

DAMPER,FUEL FILTER

92075-1853

1
Out of stock

92170

CLAMP,FUEL PUMP

92170-1185

1
Out of stock

92170A

CLAMP

92170-1201

1
Out of stock

92190

TUBE

92190-1153

1
Out of stock

92190A

TUBE

92190-1155

1
Out of stock
