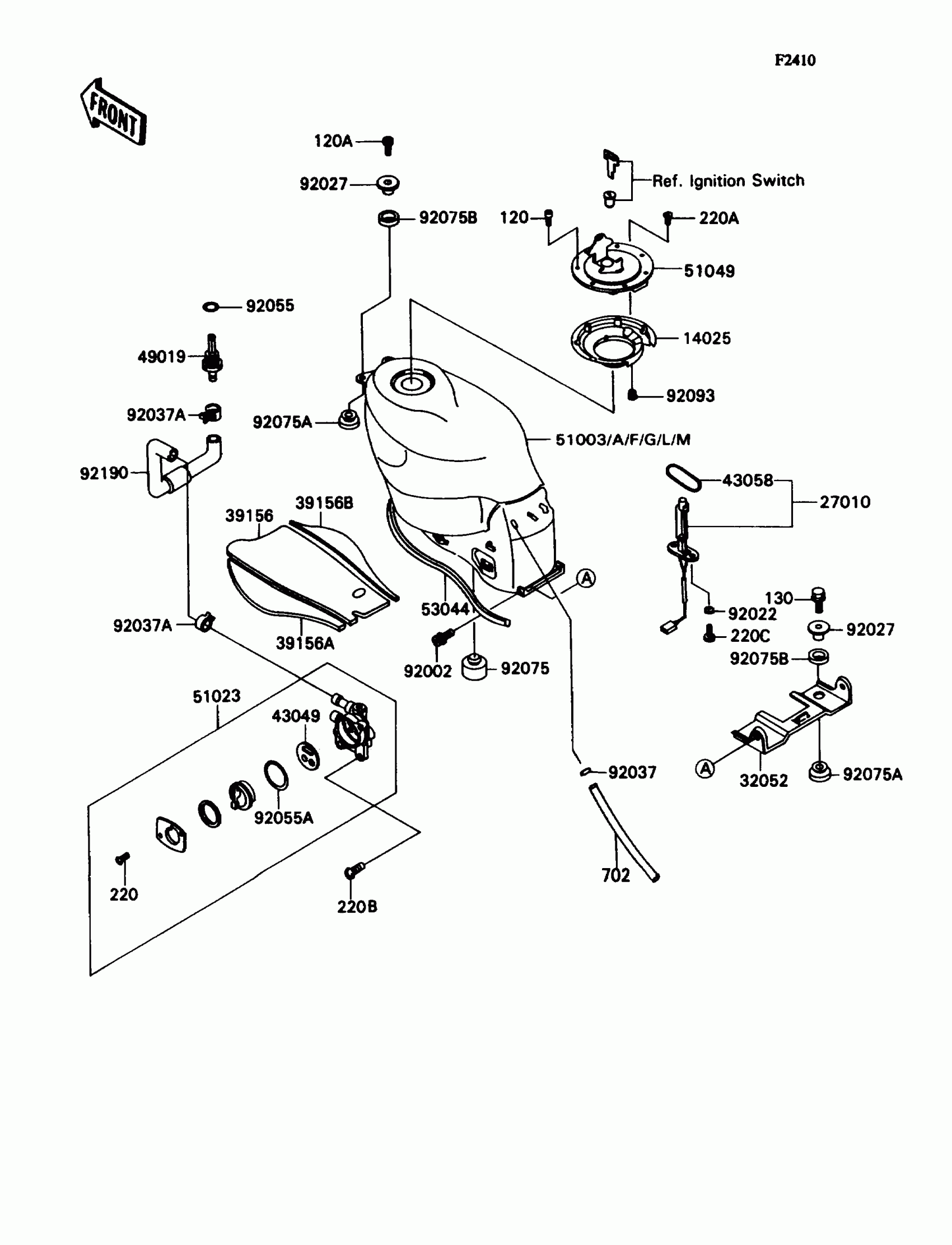

Kawasaki Ninja® ZX™-11 Fuel Tank Diagram

#

Description
Price

14025

COVER,TANK CAP

14025-1913

$17.42

27010

SWITCH,FUEL LEVEL

27010-1287

Unavailable

32052

BRACKET-TANK,RR

32052-1296

$23.98

39156

PAD,FUEL TANK,CNT

39156-1189

Unavailable

39156A

PAD,FUEL TANK,LH

39156-1190

Unavailable

39156B

PAD,FUEL TANK,RH

39156-1191

Unavailable

43049

PACKING,TAP VALVE

43049-1066

$5.54

43058

RING,FUEL LEVEL SWITCH

43058-1004

$6.13

49019

FILTER-FUEL

49019-1070

$13.93

51003L

TANK-COMP-FUEL,EBONY

51003-5396-H8

$1,385.41

51003M

TANK-COMP-FUEL,EBONY

51003-5400-H8

$550.56

51023

TAP-ASSY,FUEL

51023-1169

Unavailable

51049

CAP-TANK,FUEL

51049-1091

$117.85

53044

TRIM,FUEL TANK

53044-1236

Unavailable

92002

BOLT,SOCKET,6X14

92002-1175

$4.61

92022

WASHER,5.2X10X1.5

92022-1023

$2.99

92027

COLLAR,L=13.1

92027-251

Unavailable

92037

CLAMP,TUBE

92037-010

$2.99

92037A

CLAMP,HOSE CLIP

92037-1181

$2.31

92055

RING-O,11.5X1.5

92055-1387

$2.99

92055A

RING-O,TAP LEVER

92055-1419

$3.81

92075

DAMPER

92075-015

$3.81

92075A

RUBBER,FENDER COVER

92075-174

$3.65

92075B

DAMPER,FEMALE

92075-175

$3.35

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92190

TUBE,FUEL

92190-1117

$35.07

120

BOLT-SOCKET,5X12

120S0512

Unavailable

120A

BOLT-SOCKET,6X20

120S0620

Unavailable

130

BOLT-FLANGED

130J0620

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

220A

SCREW-PAN-CROSS

220C0508

Unavailable

220B

SCREW-PAN-CROS

220D0616

$2.12

220C

SCREW-PAN-CROS

220X0514

$2.41

702

TUBE-RUBBER,7X10X400

702A07400

$10.11
