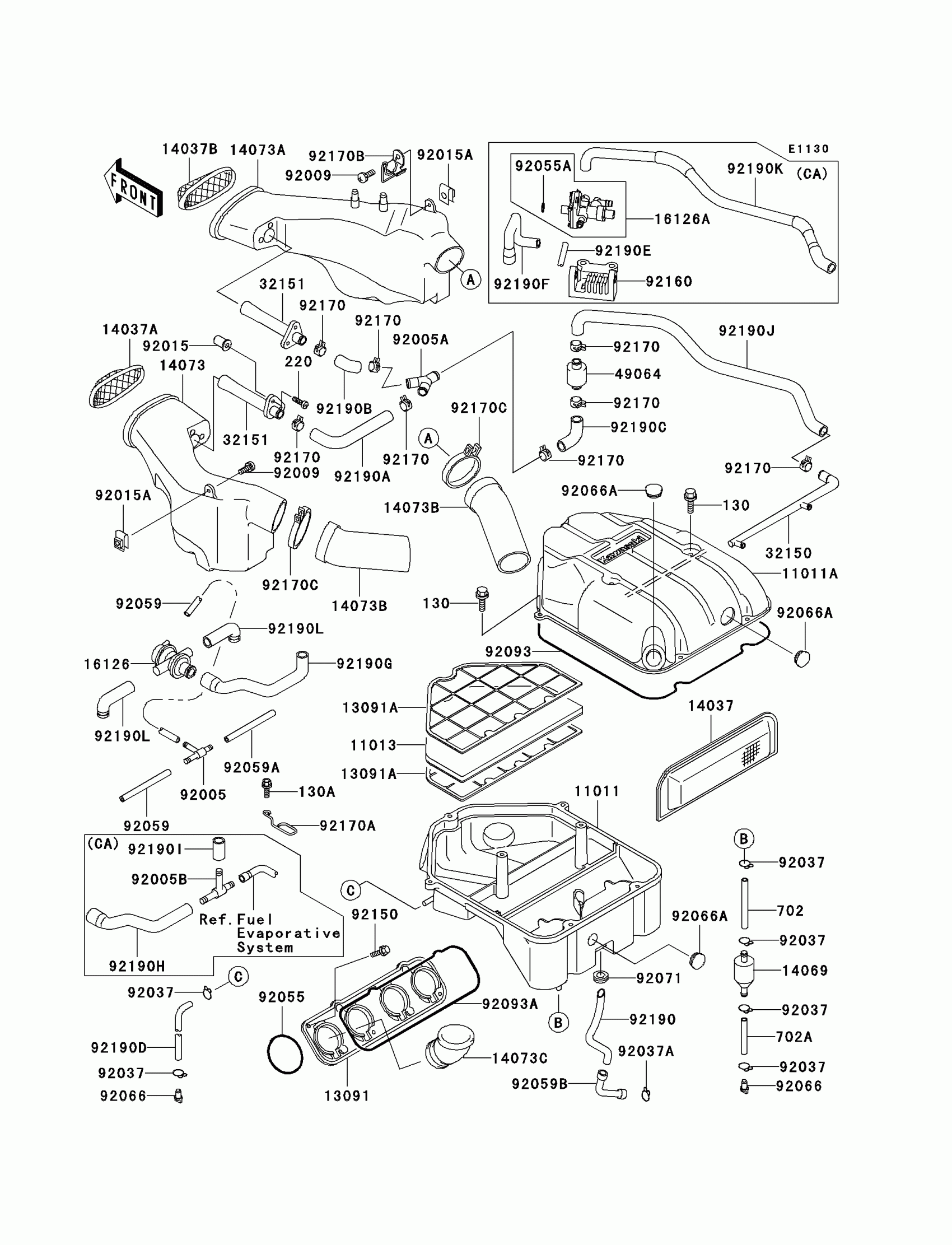

Kawasaki Ninja® ZX™-11 Air Cleaner Diagram

#

Description
Price

11011

CASE-AIR FILTER,LWR

11011-1396

$186.57

11011A

CASE-AIR FILTER,UPP

11011-1397

Unavailable

11013

ELEMENT-AIR FILTER

11013-1227

$26.07

13091

HOLDER,CARBURETOR

13091-1818

$74.69

13091A

HOLDER,ELEMENT

13091-1819

$32.45

14037

SCREEN,AIR FILTER

14037-1168

$36.44

14037A

SCREEN,AIR DUCT,LH

14037-1169

$39.91

14037B

SCREEN,AIR DUCT,RH

14037-1170

$47.96

14069

BREATHER

14069-1051

$7.76

14073

DUCT,AIR INTAKE,LH

14073-1552

$138.03

14073A

DUCT,AIR INTAKE,RH

14073-1553

Unavailable

14073B

DUCT,AIR FILTER

14073-1554

$40.04

14073C

DUCT,AIR FILTER

14073-1575

$31.13

16126

VALVE,AIR SWITCH

16126-1144

$204.57

32150

PIPE

32150-1820

$93.26

32151

PIPE,AIR VENT

32151-1478

$40.31

49064

FILTER-AIR

49064-1055

$21.88

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92005A

FITTING,Y-TIPE

92005-1250

$10.54

92009

SCREW,5X16,BLACK

92009-1654

$2.17

92015

NUT,WELL,5MM

92015-1640

$5.58

92015A

NUT,5MM

92015-1798

$5.12

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP,TUBE

92037-213

$3.29

92055

RING-O,67.7X3.1

92055-1434

$7.52

92059

TUBE,4X9X190

92059-1032

$14.40

92059A

TUBE,FUEL,4X9X140

92059-1230

$14.40

92059B

TUBE

92059-1551

$19.41

92066

PLUG,DRAIN

92066-1211

$6.48

92066A

PLUG

92066-1389

$3.25

92071

GROMMET

92071-1165

$9.47

92093

SEAL,AIR FILTER CASE

92093-1349

$14.88

92093A

SEAL,AIR FILTER

92093-1350

$14.88

92150

BOLT,5X16

92150-1363

$3.35

130

BOLT-FLANGED,6X16

130H0616

Unavailable

130A

BOLT-FLANGED

130J0610

Unavailable

220

SCREW-PAN-CROS

220C0520

$1.36

702

TUBE-RUBBER,7X10X200

702A07200

$10.11

702A

TUBE-RUBBER,7X10X280

702A07280

$10.11

92170

CLAMP

92170-1060

$7.93

92170A

CLAMP

92170-1191

Unavailable

92170B

CLAMP,AIR DUCT

92170-1390

Unavailable

92170C

CLAMP,65MM

92170-1526

$9.84

92190

TUBE,BLOWBY

92190-1077

$28.24

92190A

TUBE,AIR PIPE,LH

92190-1352

Unavailable

92190B

TUBE,AIR PIPE,RH

92190-1353

$4.63

92190C

TUBE,VALVE-HOLDER

92190-1354

Unavailable

92190D

TUBE,DIRT SIDE

92190-1372

$14.88

92190L

TUBE

92190-1436

Unavailable

16126A

VALVE,CANISTER

16126-1275

$182.26

92005B

FITTING,T-TYPE

92005-1252

$10.63

92055A

RING-O

92055-1524

$4.10

92160

DAMPER,VALVE

92160-1241

$21.97

92190E

TUBE,VALVE-HOLDER

92190-1380

$17.90

92190F

TUBE,FILTER-VALVE

92190-1381

Unavailable

92190G

TUBE,VALVE-AIR FILTER

92190-1419

$32.45

92190H

TUBE,SWITCH-FITTING

92190-1420

$32.65

92190I

TUBE,FITTING-FILTER CASE

92190-1421

$5.71

92190J

TUBE,FILTER-CARBURETOR

92190-1432

Unavailable

92190K

TUBE,VALVE-CARBURETOR

92190-1433

Unavailable
