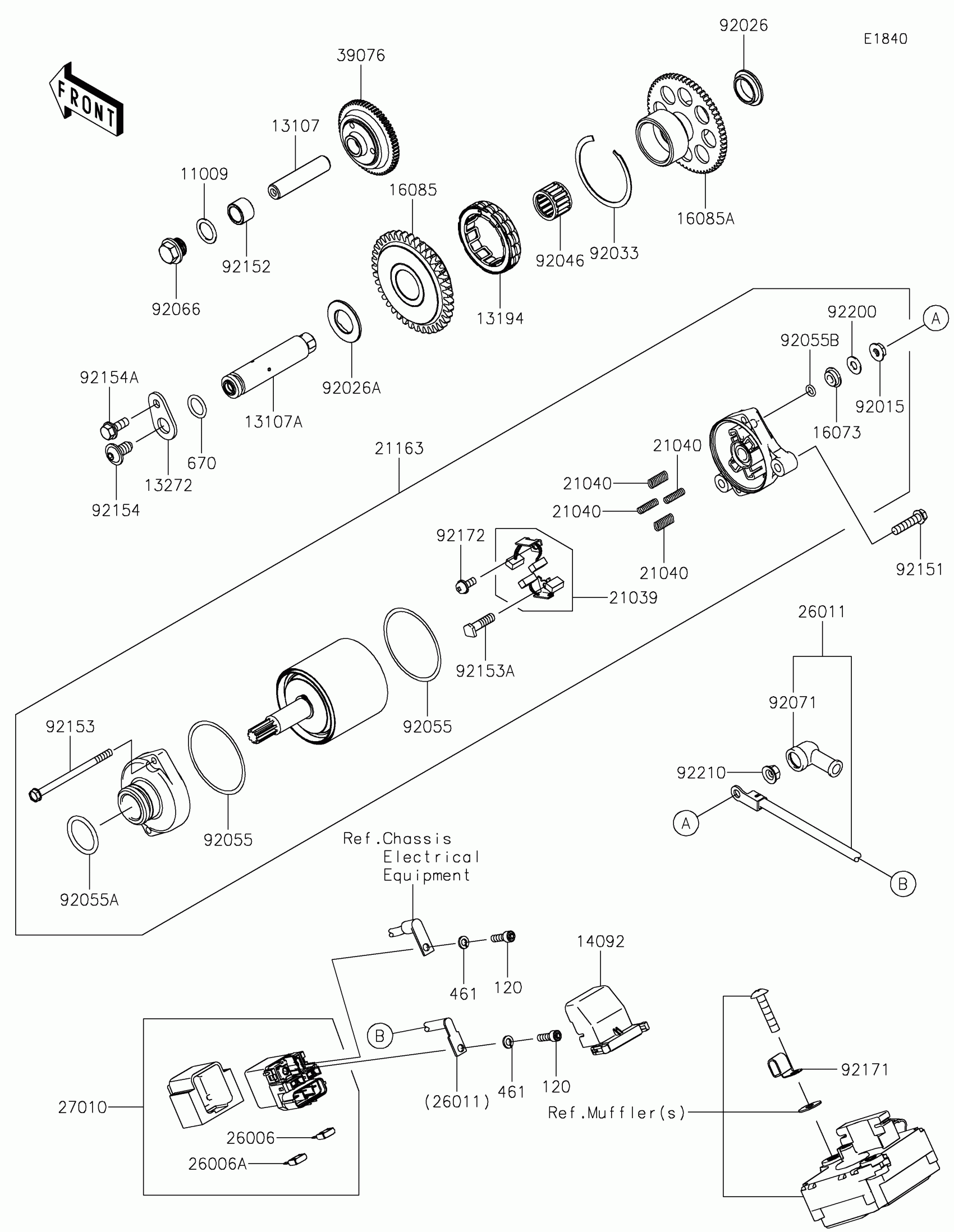

Kawasaki Ninja® ZX™-10RR (US) Starter Motor Diagram

#

Description
Price

11009

GASKET,14.3X20X1

11009-1238

$3.51

13107

SHAFT

13107-0231

$29.52

13107A

SHAFT,ONEWAY CLUTCH

13107-0837

$70.59

13194

CLUTCH-ONEWAY

13194-0553

$113.86

13272

PLATE

13272-1998

$5.24

14092

COVER

14092-0109

$9.22

16073

INSULATOR

16073-0053

$11.42

16085

GEAR,39T

16085-0650

$133.73

16085A

GEAR,62T

16085-0651

$209.91

21039

BRUSH,CARBON

21039-0004

$120.17

21040

SPRING-BRUSH

21040-0003

$9.47

21163

STARTER-ELECTRIC

21163-0064

$619.44

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26011

WIRE-LEAD

26011-0308

$40.60

27010

SWITCH

27010-0773

$138.72

39076

LIMITER

39076-0554

$148.54

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92026

SPACER,RH

92026-0157

$11.49

92026A

SPACER,LH

92026-0158

$30.18

92033

RING-SNAP

92033-3731

$5.37

92046

BEARING-NEEDLE,18X24X17

92046-0624

$25.93

92055

RING-O

92055-0136

$5.91

92055A

RING-O

92055-1276

$7.54

92055B

RING-O,4.5X2.0

92055-1370

$4.17

92066

PLUG,14X8

92066-0837

$7.88

92071

GROMMET

92071-0024

$9.86

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92152

COLLAR,12.2X17X12

92152-0870

$21.73

92153

BOLT

92153-1850

$11.42

92153A

BOLT

92153-1866

$4.14

92154

BOLT,SOCKET,8X16

92154-0397

$2.19

92154A

BOLT,FLANGED,6X16

92154-1851

$1.57

92171

CLAMP

92171-0534

$5.56

92172

SCREW

92172-0334

$4.14

92200

WASHER

92200-0386

$4.14

92210

NUT,6MM

92210-0188

$1.81

120

BOLT-SOCKET,5X10

120CB0510

$1.23

461

WASHER-SPRING,5MM

461DB0500

$1.29

670

O RING,14MM

670D2014

$4.18
