2021 Kawasaki Ninja® ZX™-10RR (US) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2021 Kawasaki Ninja® ZX™-10RR (US), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

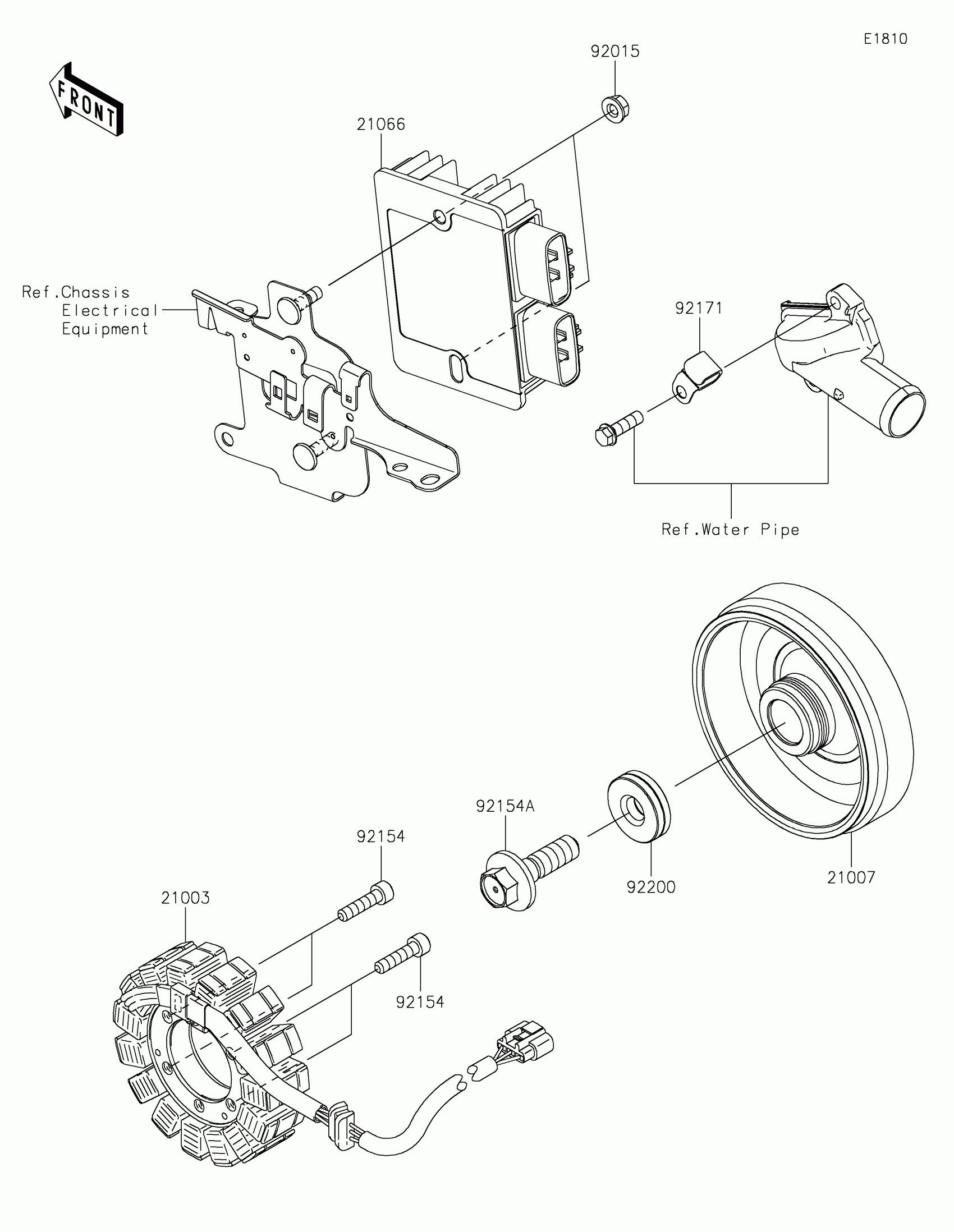

2021 Kawasaki Ninja® ZX™-10RR (US) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR

21003-0107

1
Out of stock

21007

ROTOR

21007-0591

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-0748

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92154

BOLT,SOCKET,6X25

92154-0477

1
Out of stock

92154A

BOLT,12X40

92154-1944

1
Out of stock

92171

CLAMP

92171-0534

1

$5.56

In stock

92200

WASHER,12X34X9

92200-0369

1
Out of stock
