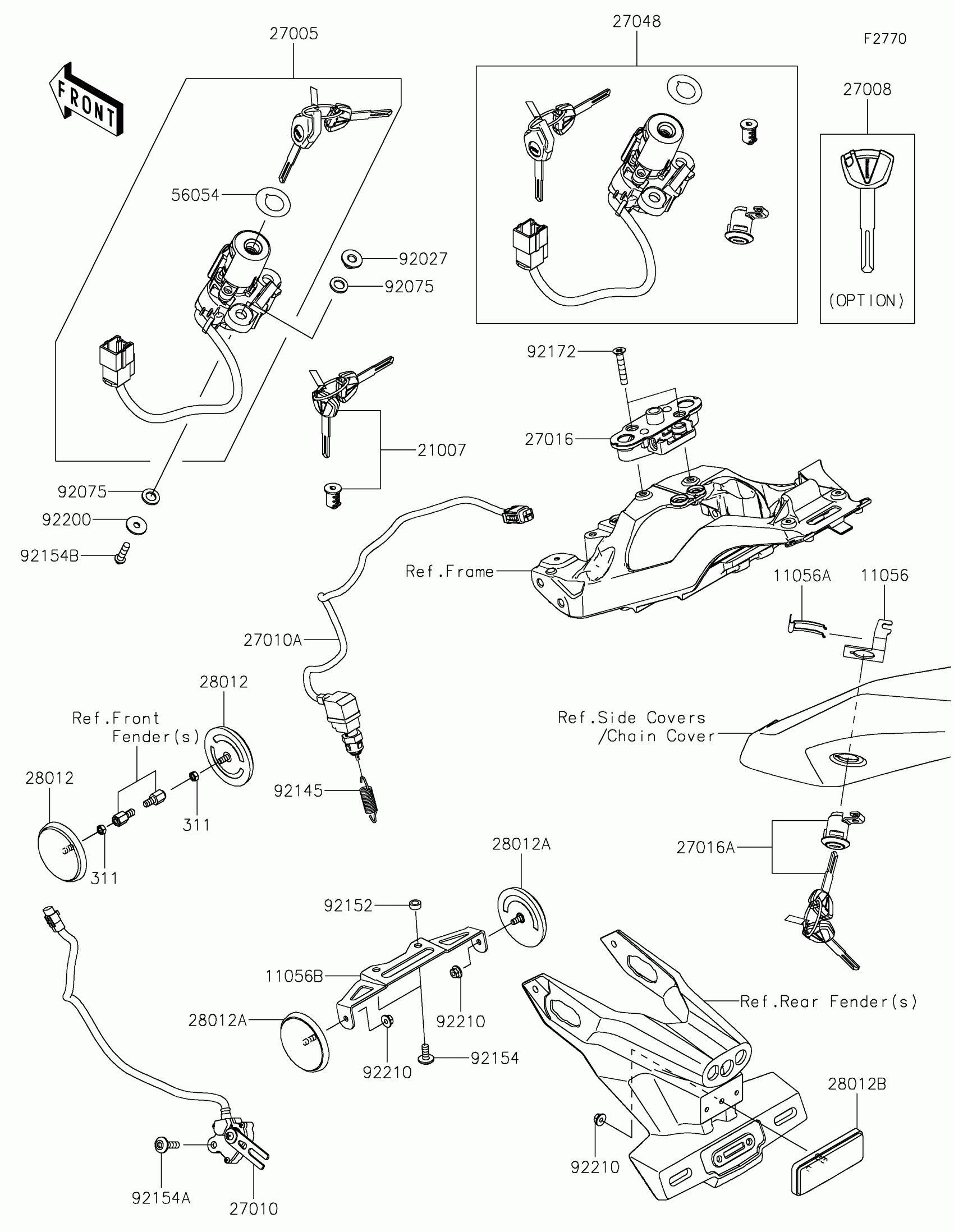

Kawasaki Ninja® ZX™-10RR (US) Ignition Switch/Locks/Reflectors Diagram

Description

Price

11056

BRACKET

11056-0237

$3.36

11056A

BRACKET,CLASP

11056-0238

$4.53

11056B

BRACKET,REFLECTOR

11056-4496

$15.81

21007

ROTOR,LOCK,TANK CAP

21007-5089

$130.14

27005

SWITCH-ASSY-IGNITION

27005-0700

$218.34

27008

KEY-LOCK,BLANK

27008-0662

$25.56

27010

SWITCH,SIDE STAND

27010-0003

$69.51

27010A

SWITCH,STOP

27010-0944

$80.55

27016

LOCK-ASSY,SEAT STRIKER

27016-0035

$65.38

27016A

LOCK-ASSY,SEAT

27016-5418

$137.11

27048

SWITCH-ASSY

27048-5263

$350.98

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$19.59

28012A

REFLECTOR-REFLEX

28012-0002

$19.59

28012B

REFLECTOR-REFLEX

28012-1077

$21.76

56054

MARK,IGNITION SWITCH

56054-2755

$10.49

92027

COLLAR

92027-1045

$4.18

92075

DAMPER

92075-1564

$4.15

92145

SPRING,REAR BRAKE SWITCH

92145-1972

$5.02

92152

COLLAR,6.5X10.5X4.5

92152-1348

$7.51

92154

BOLT,SOCKET,6X14

92154-0907

$1.44

92154A

BOLT,SOCKET,6X22

92154-1810

$2.95

92154B

BOLT,TORX,6X22

92154-1858

$3.01

92172

SCREW-CSK-CROS,6X35

92172-1432

$1.00

92200

WASHER,6X20X1.6

92200-0212

$2.31

92210

NUT,FLANGED,5MM

92210-0007

$1.90

311

NUT-HEX,5MM

311AB0500

$0.46
