2021 Kawasaki Ninja® ZX™-10RR (Us) Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2021 Kawasaki Ninja® ZX™-10RR (Us), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

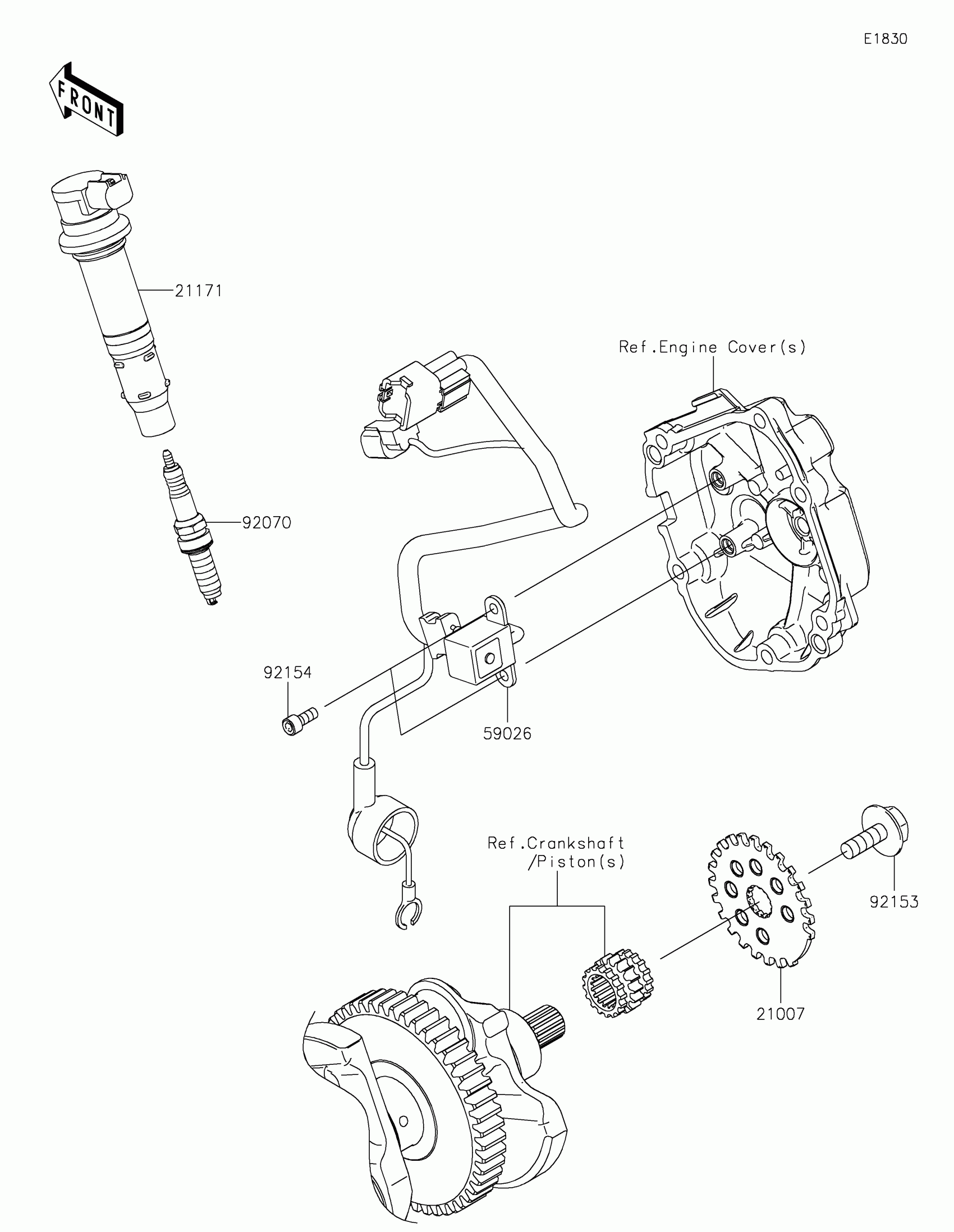

2021 Kawasaki Ninja® ZX™-10RR (Us) Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21007

ROTOR,PULSING

21007-0705

1
Out of stock

21171

COIL-ASSY-IGNITION

21171-0756

1
Out of stock

59026

COIL-PULSING

59026-0044

1
Out of stock

92070

PLUG-SPARK,SILMAR9B9(NGK)

92070-0047

1
Out of stock

92153

BOLT,FLANGED,8X23

92153-0549

1
Out of stock

92154

BOLT,SOCKET,5X12

92154-0503

1
Out of stock
