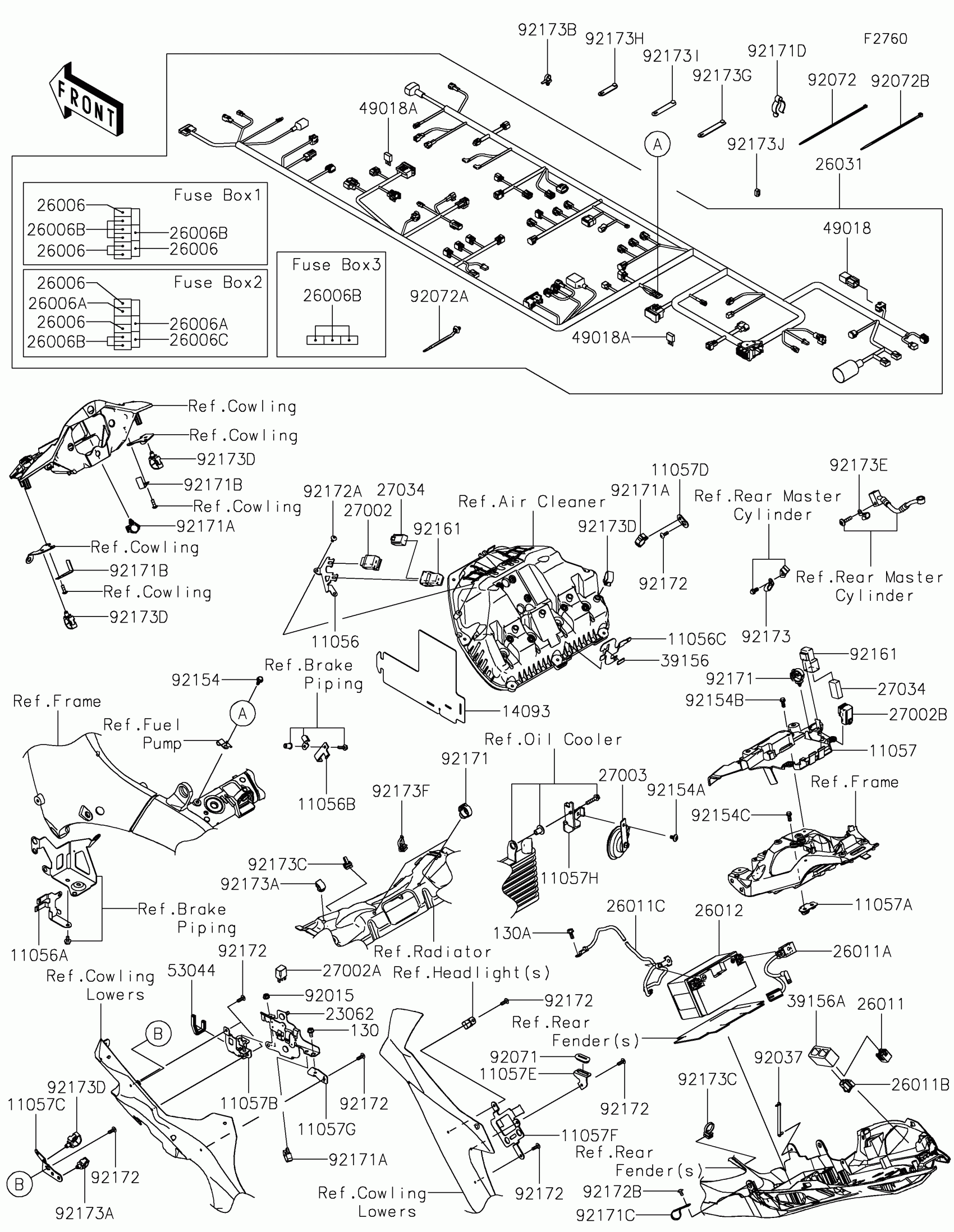

Kawasaki Ninja® ZX™-10RR (US) Chassis Electrical Equipment Diagram

#

Description
Price

11056

BRACKET,RELAY

11056-7706

$4.78

11056A

BRACKET,SHIFTER&GEAR POSITION

11056-7816

$5.98

11056B

BRACKET,FRAME,LH

11056-7828

$4.98

11056C

BRACKET,HARNESS

11056-7955

$7.24

11057

BRACKET,TOOL

11057-4222

$30.99

11057A

BRACKET,ECU

11057-4225

$4.90

11057B

BRACKET,FUSE

11057-4227

$8.53

11057C

BRACKET,SIDE COWL.,LH

11057-4228

$5.07

11057D

BRACKET,SIDE COWL.,RH

11057-4229

$3.49

11057E

BRACKET,REGULATOR UNDER

11057-4230

$5.27

11057F

BRACKET,HEAD LAMP ECU

11057-4231

Unavailable

11057G

BRACKET

11057-4232

$4.90

11057H

BRACKET,HORN

11057-4246

$47.92

14093

COVER,RELAY

14093-0476

$32.44

23062

BRACKET-COMP,REGULATOR

23062-1301

$16.47

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

$5.71

26006B

FUSE,MINI BLADE,10A,RED

26006-1078

$3.36

26006C

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26011

WIRE-LEAD,CONNECTOR COVER

26011-0275

$13.42

26011A

WIRE-LEAD,BATTERY(+)

26011-1889

$50.29

26011B

WIRE-LEAD,DIAG CONNECTOR

26011-1901

$33.04

26011C

WIRE-LEAD,BATTERY(-)

26011-1956

$55.57

26012

BATTERY,YTZ10S,12V 8.6AH

26012-0564

$210.21

26031

HARNESS,MAIN

26031-3737

$1,763.77

27002

RELAY-ASSY,SIGNAL LAMP

27002-0029

$84.96

27002A

RELAY-ASSY,HEAD LAMP

27002-0045

$43.03

27002B

RELAY-ASSY,STARTER

27002-0047

$37.62

27003

HORN

27003-0161

$82.34

27034

RELAY

27034-0012

$37.62

39156

PAD,HEAT GUARD

39156-0389

$1.80

39156A

PAD,DIAG CONNECTOR

39156-2620

$4.41

49018

DIODE

49018-0005

$41.75

49018A

DIODE

49018-0007

$41.91

53044

TRIM

53044-0018

$4.14

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92071

GROMMET

92071-1187

$3.78

92072

BAND,202X3.6

92072-0782

$1.68

92072A

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92072B

BAND,L=148

92072-3768

$2.99

92154

BOLT,FLANGED,6X16

92154-0551

$1.44

92154A

BOLT,SOCKET,6X10

92154-0774

$1.24

92154B

BOLT,FLANGED,6X14

92154-1864

$1.57

92154C

BOLT,FLANGED,6X12

92154-4349

$1.59

92161

DAMPER

92161-2290

$5.27

92171

CLAMP,CLIP,DIA=20

92171-0068

$2.29

92171A

CLAMP,BRAKE HOSE

92171-0316

$2.93

92171B

CLAMP,L=60

92171-0652

$1.85

92171C

CLAMP

92171-1279

$8.93

92171D

CLAMP,CABLE

92171-1283

$10.51

92172

SCREW,TAPPING,5X16

92172-0175

$1.32

92172A

SCREW,TAPPING,5X10

92172-0262

$1.04

92172B

SCREW,TAPPING,5X10

92172-0335

$1.57

92173

CLAMP

92173-0082

$5.42

92173A

CLAMP,12MM DIA.

92173-0736

$3.85

92173B

CLAMP

92173-0742

$6.99

92173C

CLAMP

92173-0791

$10.73

92173D

CLAMP

92173-0861

$2.11

92173E

CLAMP

92173-0982

$4.95

92173F

CLAMP

92173-1578

$7.90

92173G

CLAMP

92173-2194

$1.56

92173H

CLAMP

92173-2198

$1.32

92173I

CLAMP

92173-2199

$1.32

92173J

CLAMP

92173-2437

$1.93

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,6X14

130BA0614

$0.97
