2021 Kawasaki Ninja® ZX™-10RR (US) Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2021 Kawasaki Ninja® ZX™-10RR (US), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

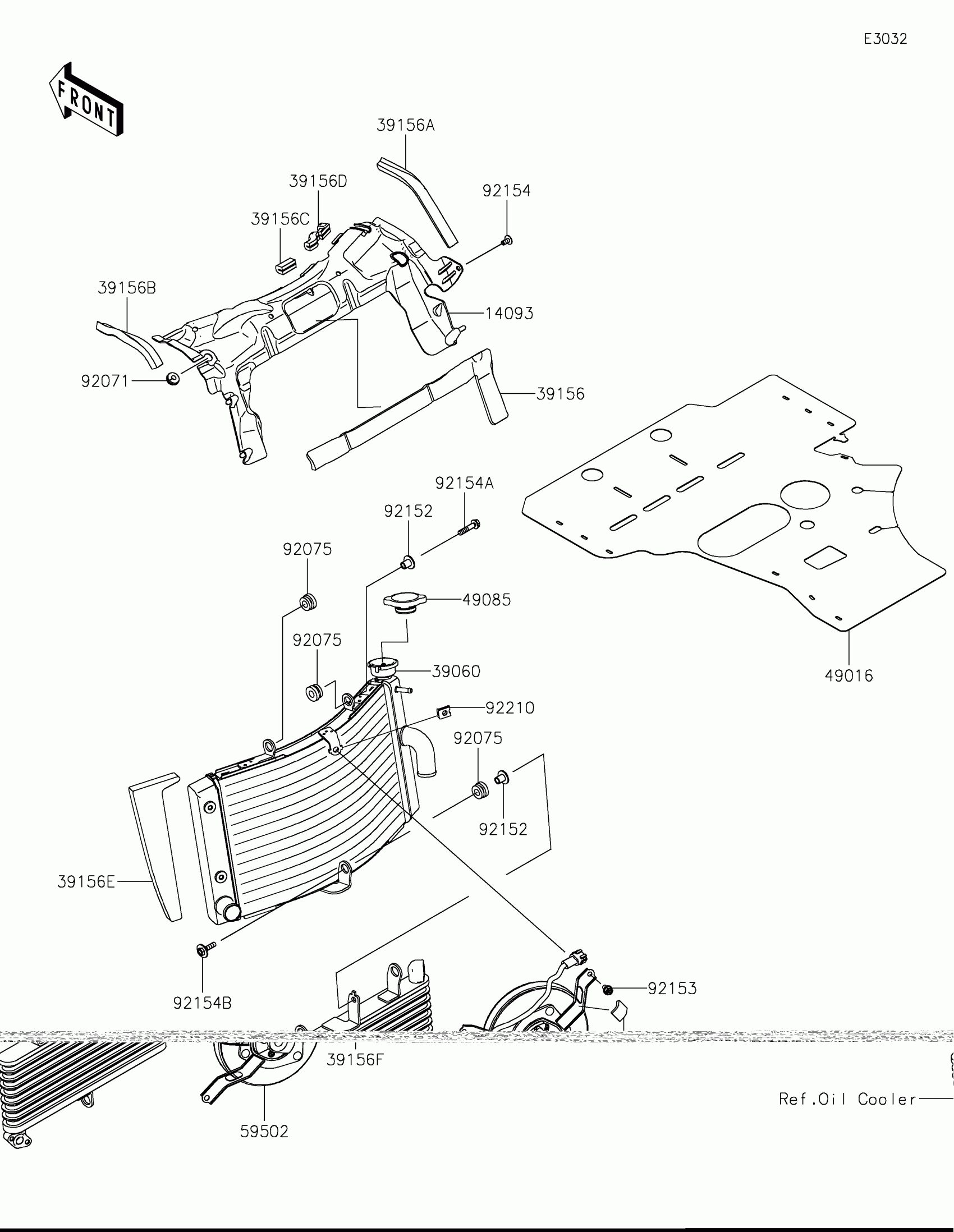

2021 Kawasaki Ninja® ZX™-10RR (US) Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER

14093-1060

1
Out of stock

39060

RADIATOR

39060-0743

1
Out of stock

39156

PAD

39156-0730

1

$5.97

In stock

39156A

PAD,15X163X10

39156-2615

1
Out of stock

39156B

PAD,15X104X10

39156-2643

1
Out of stock

39156C

PAD,20X26.5X5

39156-2644

1
Out of stock

39156D

PAD,13.5X64X5

39156-2645

1
Out of stock

39156E

PAD,RADIATOR LH

39156-2646

1
Out of stock

39156F

PAD,23X19X4

39156-2737

1
Out of stock

49016

COVER-SEAL,ENGINE RR

49016-0669

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-0006

1
Out of stock

59502

FAN-ASSY

59502-0631

1
Out of stock

92071

GROMMET

92071-0811

1
Out of stock

92075

DAMPER,RUBBER

92075-1123

1
Out of stock

92152

COLLAR

92152-1074

1
Out of stock

92153

BOLT

92153-0531

1
Out of stock

92154

BOLT,6X12

92154-1892

1
Out of stock

92154A

BOLT,FLANGED,15X30

92154-2119

1
Out of stock

92154B

BOLT,6X25

92154-4259

1
Out of stock

92210

NUT

92210-1323

1
Out of stock
