2021 Kawasaki Ninja® ZX™-10RR (US) Balancer Diagram

← All diagrams

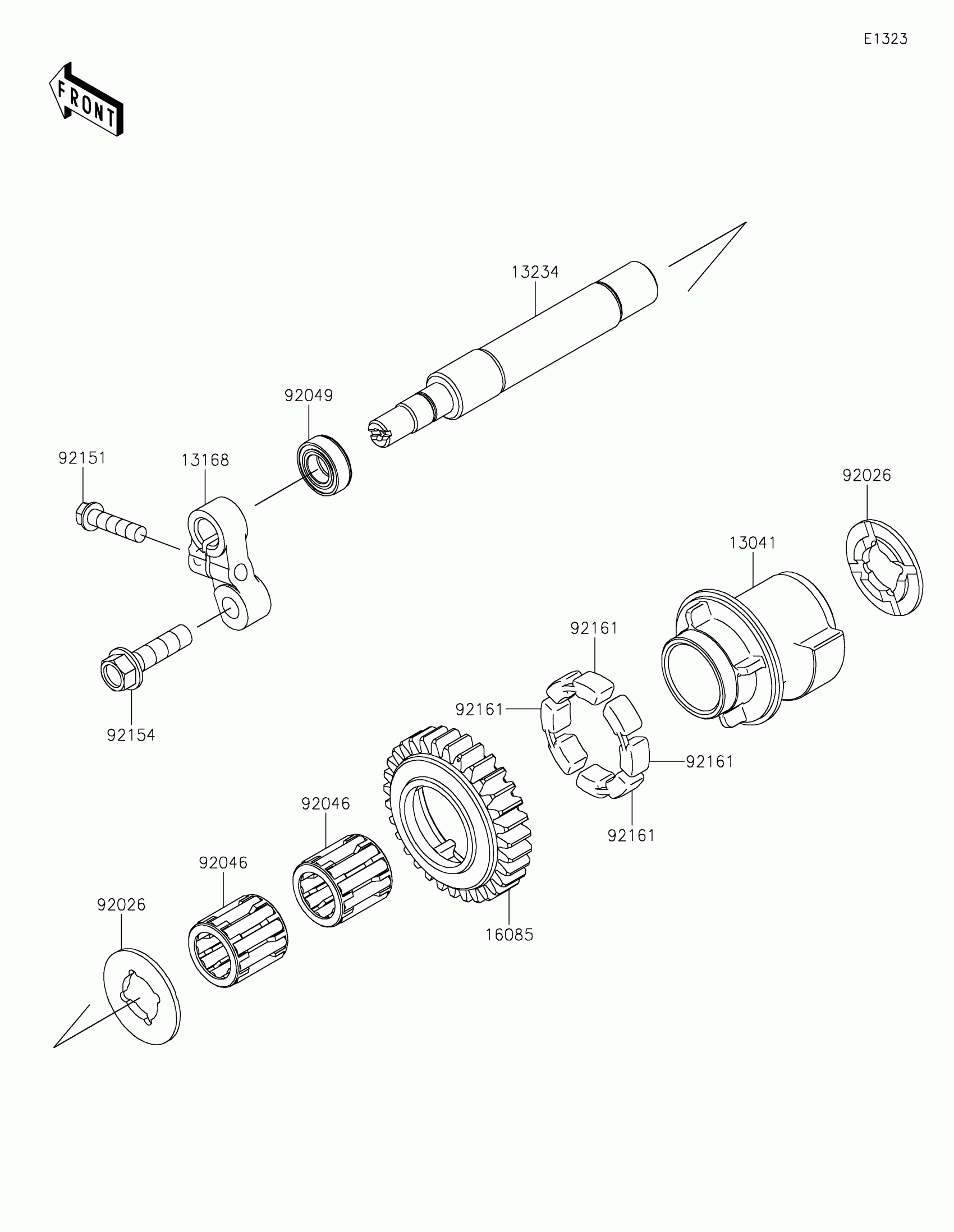

Find the part on the Balancer diagram for your 2021 Kawasaki Ninja® ZX™-10RR (US), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki Ninja® ZX™-10RR (US) Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13041

BALANCER

13041-0553

1
Out of stock

13168

LEVER,BACKLASH ADJUSTMENT

13168-0831

1
Out of stock

13234

SHAFT-COMP

13234-0589

1
Out of stock

16085

GEAR,BALANCER,31T

16085-0684

1
Out of stock

92026

SPACER

92026-0082

1
Out of stock

92046

BEARING-NEEDLE

92046-1266

1
Out of stock

92049

SEAL-OIL

92049-0720

1
Out of stock

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

1
Out of stock

92154

BOLT,FLANGED,8X30

92154-1796

1
Out of stock

92161

DAMPER

92161-1055

1
Out of stock
