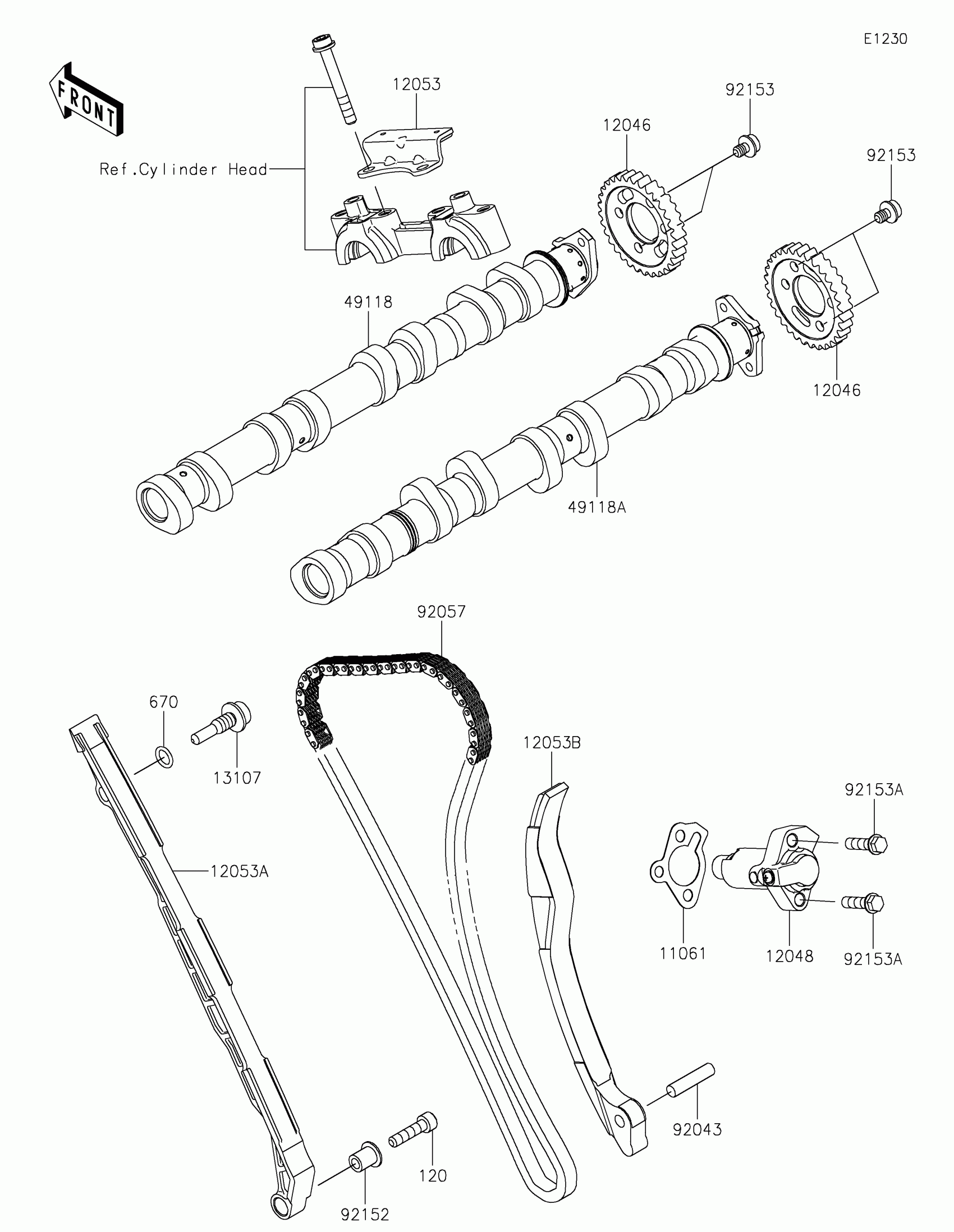

Kawasaki Ninja® ZX™-10RR (US) Camshaft(s)/Tensioner Diagram

Description

Price

11061

GASKET,TENSIONER

11061-0796

$1.87

12046

SPROCKET,32T

12046-0610

$72.43

12048

TENSIONER-ASSY

12048-0117

$170.13

12053

GUIDE-CHAIN,UPP

12053-0264

$67.90

12053A

GUIDE-CHAIN,FR

12053-0265

$67.24

12053B

GUIDE-CHAIN,RR

12053-0266

$107.79

13107

SHAFT,CHAIN GUIDE

13107-0157

$8.10

49118

CAMSHAFT-COMP,EXHAUST

49118-0967

$510.22

49118A

CAMSHAFT-COMP,INTAKE

49118-1228

$559.99

92043

PIN,7X30.7

92043-0062

$4.63

92057

CHAIN,98XRH2020-128N2

92057-0755

$153.69

92152

COLLAR

92152-0413

$8.46

92153

BOLT,FLANGED,6X8

92153-0455

$1.81

92153A

BOLT,FLANGED-SMALL,6X22

92153-1560

$1.81

120

BOLT-SOCKET,6X25

120CA0625

Unavailable

670

O RING,9MM

670D1509

$3.57
