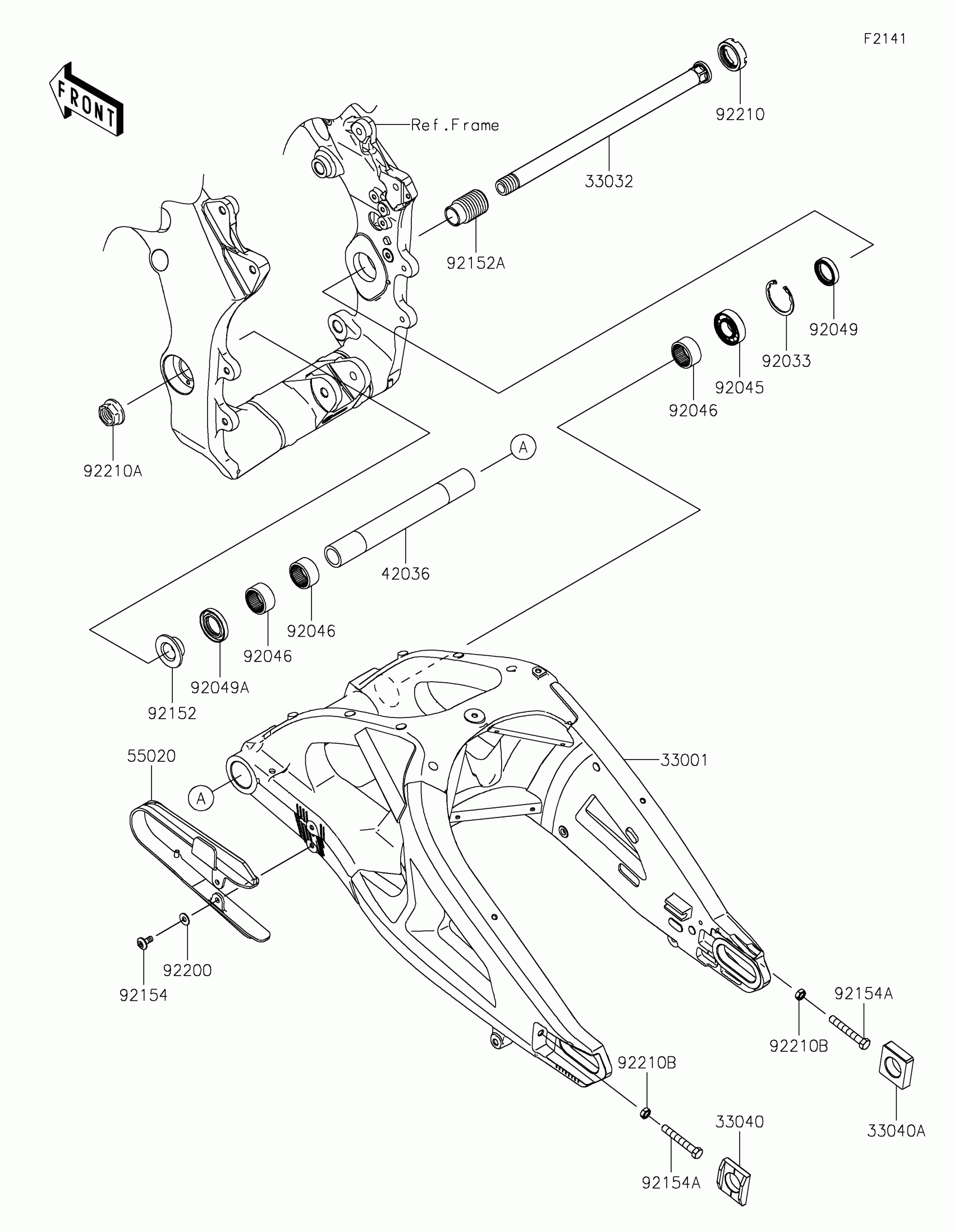

Kawasaki NINJA® ZX™-10RR Swingarm Diagram

Description

Price

33001

ARM-COMP-SWING

33001-0648

$1,623.50

33032

SHAFT-SWING ARM

33032-0048

Unavailable

33040

ADJUSTER-CHAIN,RH

33040-0027

$39.39

33040A

ADJUSTER-CHAIN,RH

33040-1114

$14.54

42036

SLEEVE,SWING ARM PIVOT,L=226

42036-1341

$70.15

55020

GUARD,CHAIN

55020-0561

$41.04

92033

RING-SNAP,42MM

92033-1041

$4.64

92045

BEARING-BALL,6004UL11

92045-0017

$10.93

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

$17.41

92049

SEAL-OIL,MHSA25X42X6

92049-1314

$10.44

92049A

SEAL-OIL,MHSA25X34X7

92049-1352

$7.08

92152

COLLAR,SWING ARM,L=47

92152-0154

$37.85

92152A

COLLAR,20.2X25X15

92152-2169

$30.18

92154

BOLT,SOCKET,6X14

92154-1807

$2.28

92154A

BOLT-SMALL,8X55

92154-1962

$4.29

92200

WASHER,6.2X15X1.2

92200-1762

$0.95

92210

NUT,30MM

92210-0134

$25.26

92210A

NUT,FLANGED,20MM

92210-0320

$9.07

92210B

NUT-HEX-SMALL,8MM

92210-1459

$3.01
