2018 Kawasaki Ninja® ZX™-10RR Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2018 Kawasaki Ninja® ZX™-10RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

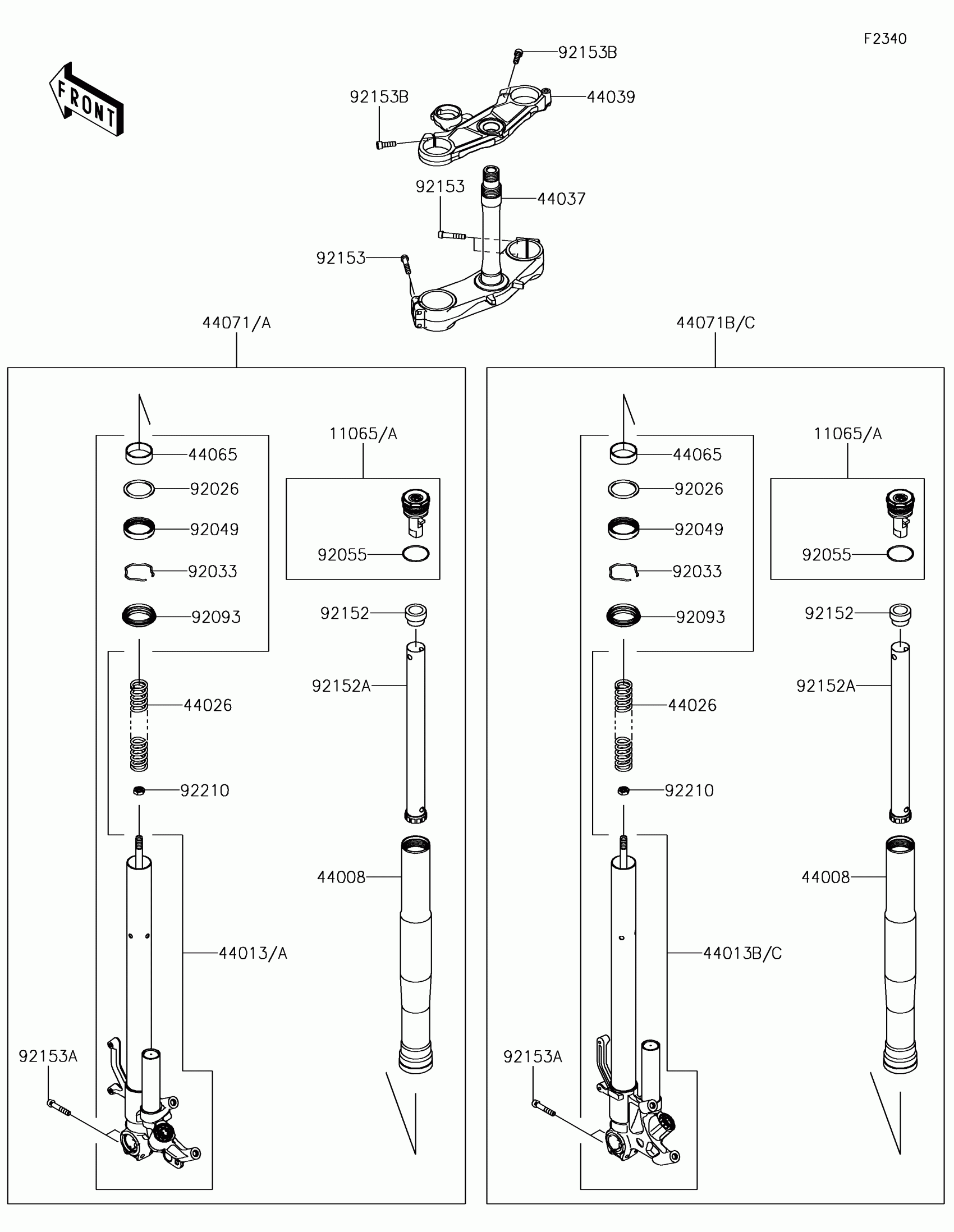

2018 Kawasaki Ninja® ZX™-10RR Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065A

CAP,G.B.GREEN

11065-0958-50Y

1

$235.85

In stock

44008

PIPE-FORK OUTER,BLACK

44008-0082-499

1

$426.46

In stock

44013A

PIPE-FORK INNER,LH,BLACK

44013-0311-59S

1

$2,432.02

In stock

44013C

PIPE-FORK INNER,RH,BLACK

44013-0312-59S

1

$2,432.02

In stock

44026

1

$74.29

In stock

44037

HOLDER-FORK UNDER

44037-0159

1

$556.57

In stock

44039

HOLDER-FORK UPPER

44039-0164

1

$237.69

In stock

44065

BUSHING-FRONT FORK

44065-0026

1

$23.28

In stock

44071A

DAMPER-ASSY,FORK,LH,BLACK

44071-1276-59R

1

$3,015.02

In stock

44071C

DAMPER-ASSY,FORK,RH,BLACK

44071-1277-59R

1

$3,015.02

In stock

92026

SPACER

92026-0165

1
Out of stock

92033

RING-SNAP

92033-1222

1

$5.15

In stock

92049

SEAL-OIL

92049-0064

1
Out of stock

92055

RING-O,FORK CAP

92055-1497

1

$4.69

In stock

92093

SEAL,DUST

92093-0042

1

$22.98

In stock

92152

COLLAR

92152-2238

1
Out of stock

92152A

COLLAR

92152-2239

1
Out of stock

92153

BOLT

92153-0853

1
Out of stock

92153A

BOLT,SOCKET,8X35

92153-0854

1
Out of stock

92153B

BOLT,SOCKET,8X25

92153-1625

1

$3.69

In stock

92210

NUT

92210-1506

1
Out of stock
