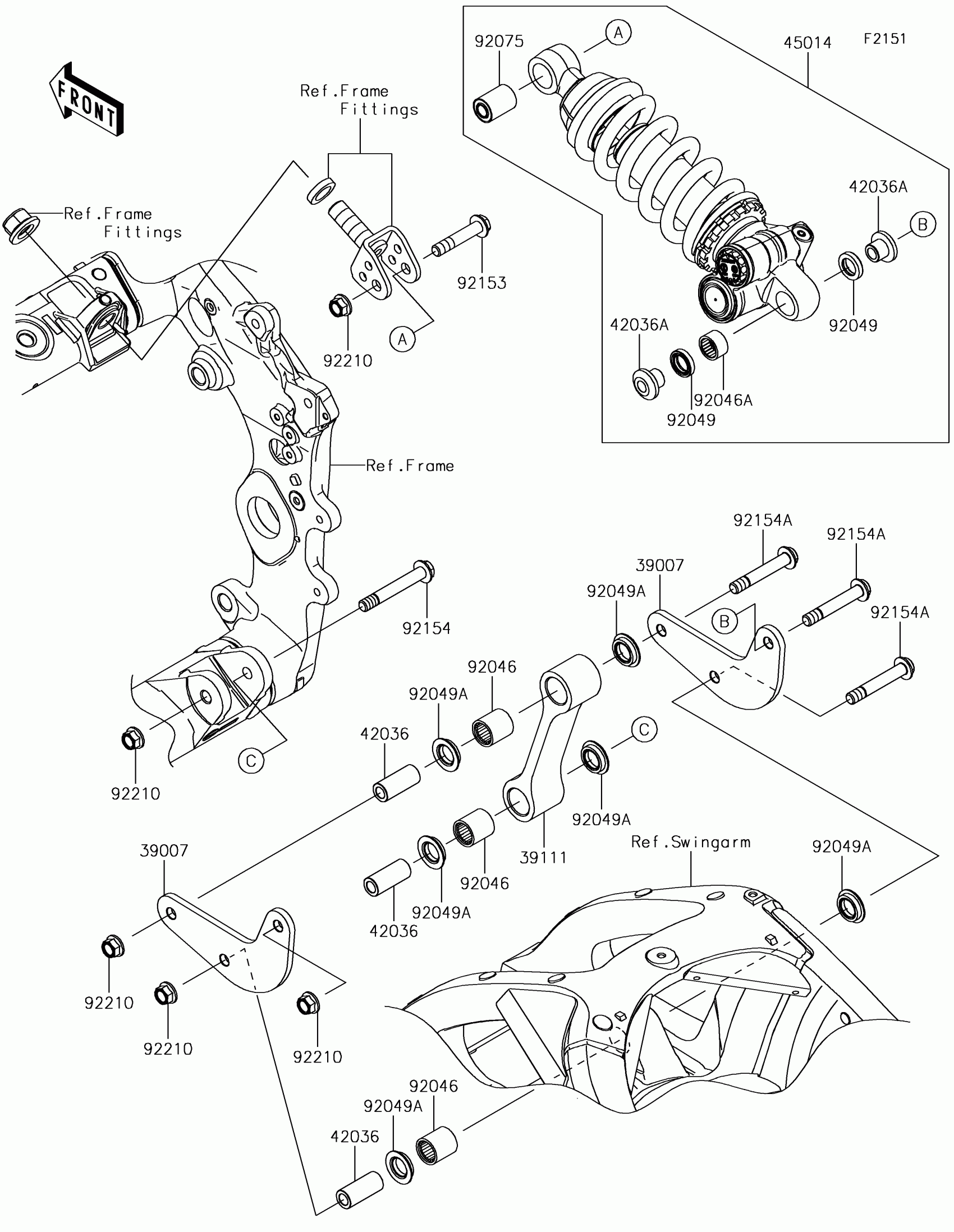

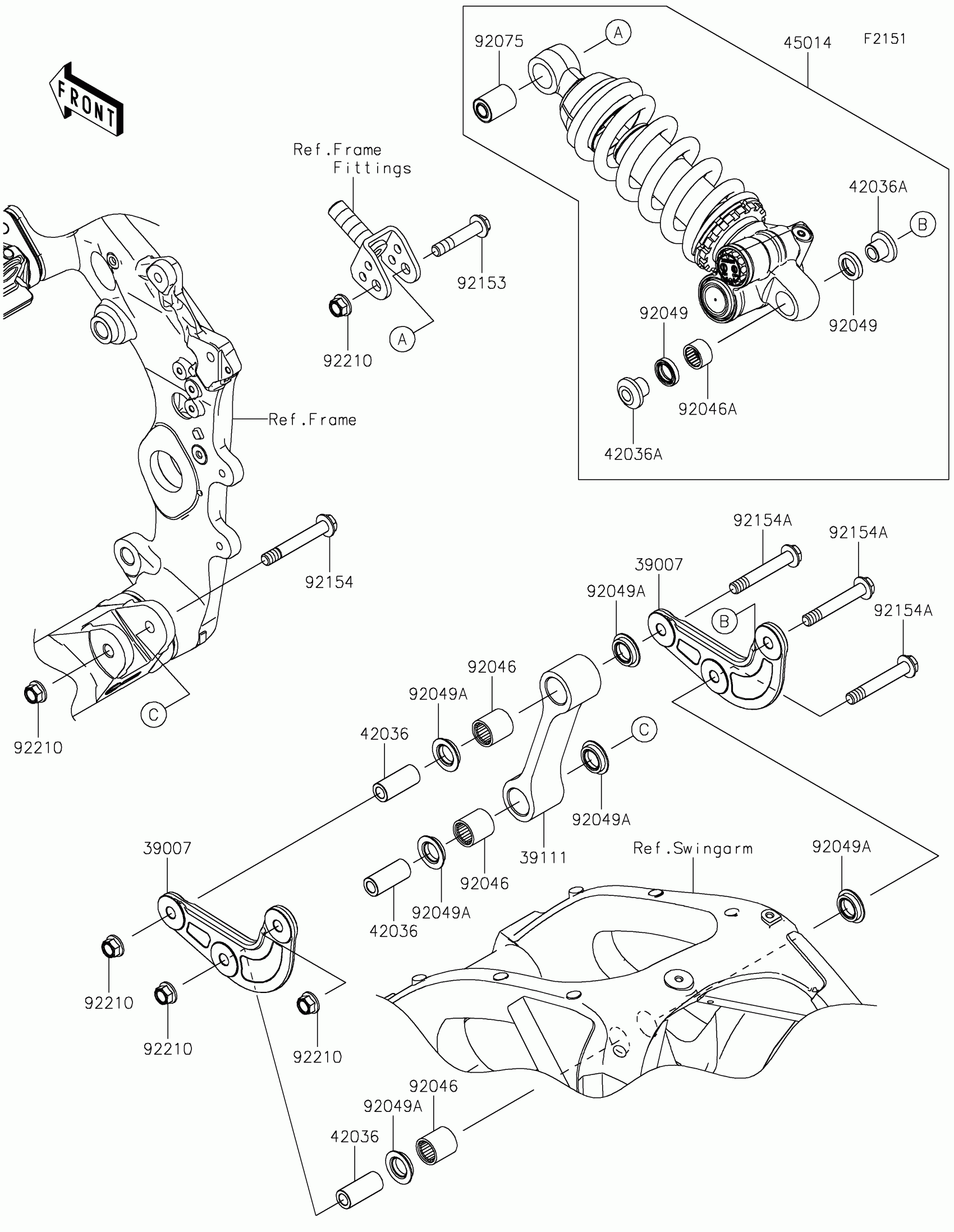

Kawasaki NINJA® ZX™-10RR Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP

39007-0395

$93.67

39111

ROD-TIE,SUSPENSION

39111-0337

$77.39

42036

SLEEVE,10.1X17X39

42036-0075

$13.61

42036A

SLEEVE

42036-0789

$117.84

45014

SHOCKABSORBER,GREEN/GRAY

45014-0515-52J

$2,658.18

92046

BEARING-NEEDLE,SFYZM172425

92046-1273

$13.34

92046A

BEARING-NEEDLE,7E-HVS16X22X12

92046-1301

$14.73

92049

SEAL-OIL

92049-0792

$11.76

92049A

SEAL-OIL,MHA17245.7F

92049-1223

$6.75

92075

DAMPER,SHOCKABSORBER

92075-1426

$11.76

92153

BOLT,FLANGED,10X51

92153-1545

$7.61

92154

BOLT,FLANGED,10X71

92154-0384

Unavailable

92154A

BOLT,FLANGED,10X63

92154-0398

$8.98

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90
