2018 Kawasaki Ninja® ZX™-10RR Steering Damper Diagram

← All diagrams

Find the part on the Steering Damper diagram for your 2018 Kawasaki Ninja® ZX™-10RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

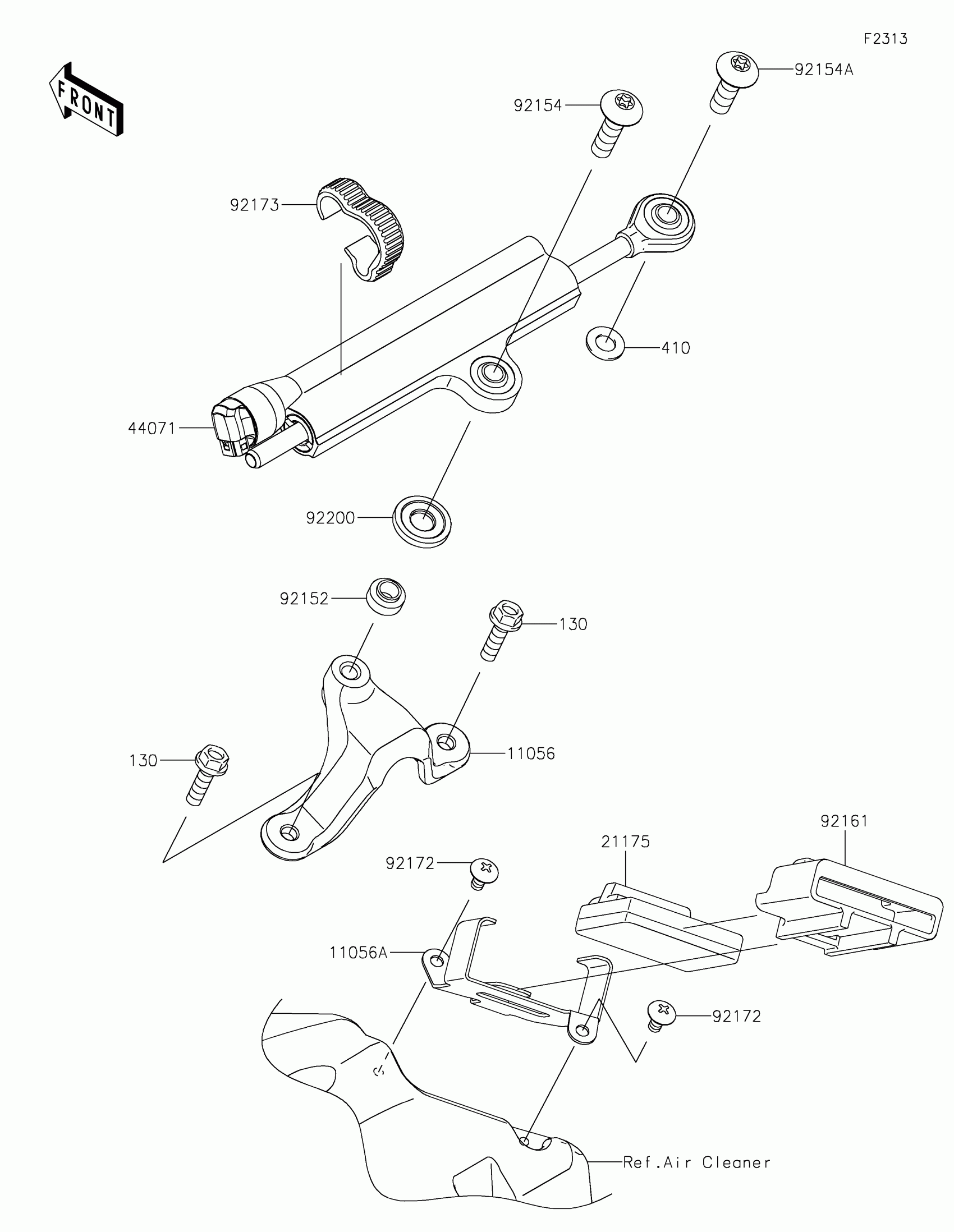

2018 Kawasaki Ninja® ZX™-10RR Steering Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,STEERING DAMPER

11056-0173

1
Out of stock

11056A

BRACKET,ECU

11056-7685

1
Out of stock

130

BOLT-FLANGED,6X20

130BA0620

1
Out of stock

21175

CONTROL UNIT-ELECTRONIC,OHLINS

21175-1155

1
Out of stock

410

WASHER-PLAIN-SMALL,8MM

410AA0800

1
Out of stock

44071

DAMPER-ASSY

44071-0857

1
Out of stock

92152

COLLAR,8X10X7.3

92152-2146

1
Out of stock

92154

BOLT,TORX,8X30

92154-1801

1
Out of stock

92154A

BOLT,TORX,8X26

92154-1897

1
Out of stock

92161

DAMPER,ECU

92161-1729

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-0262

1
Out of stock

92173

CLAMP

92173-1023

1
Out of stock

92200

WASHER

92200-0293

1
Out of stock
