2018 Kawasaki Ninja® ZX™-10RR Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2018 Kawasaki Ninja® ZX™-10RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

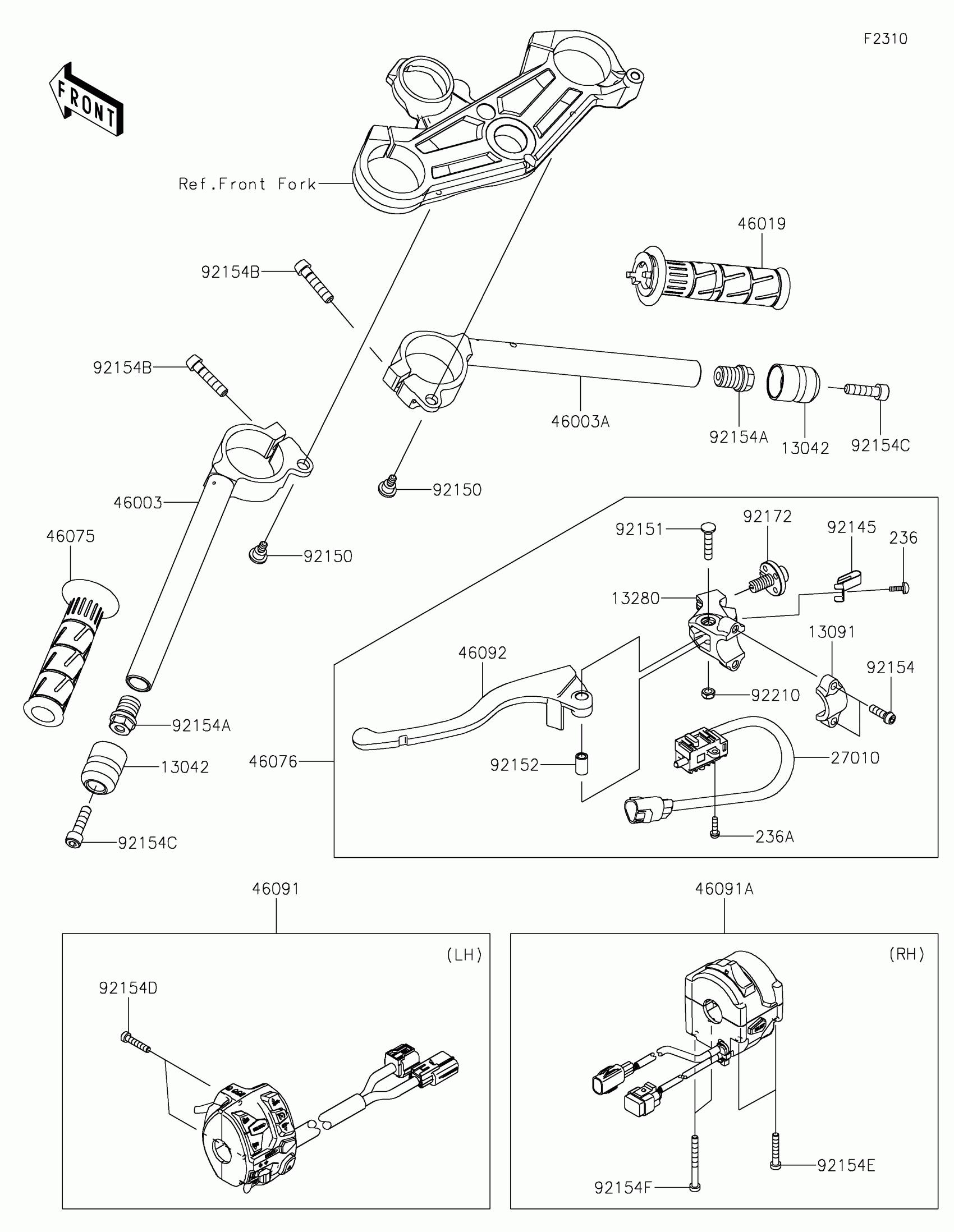

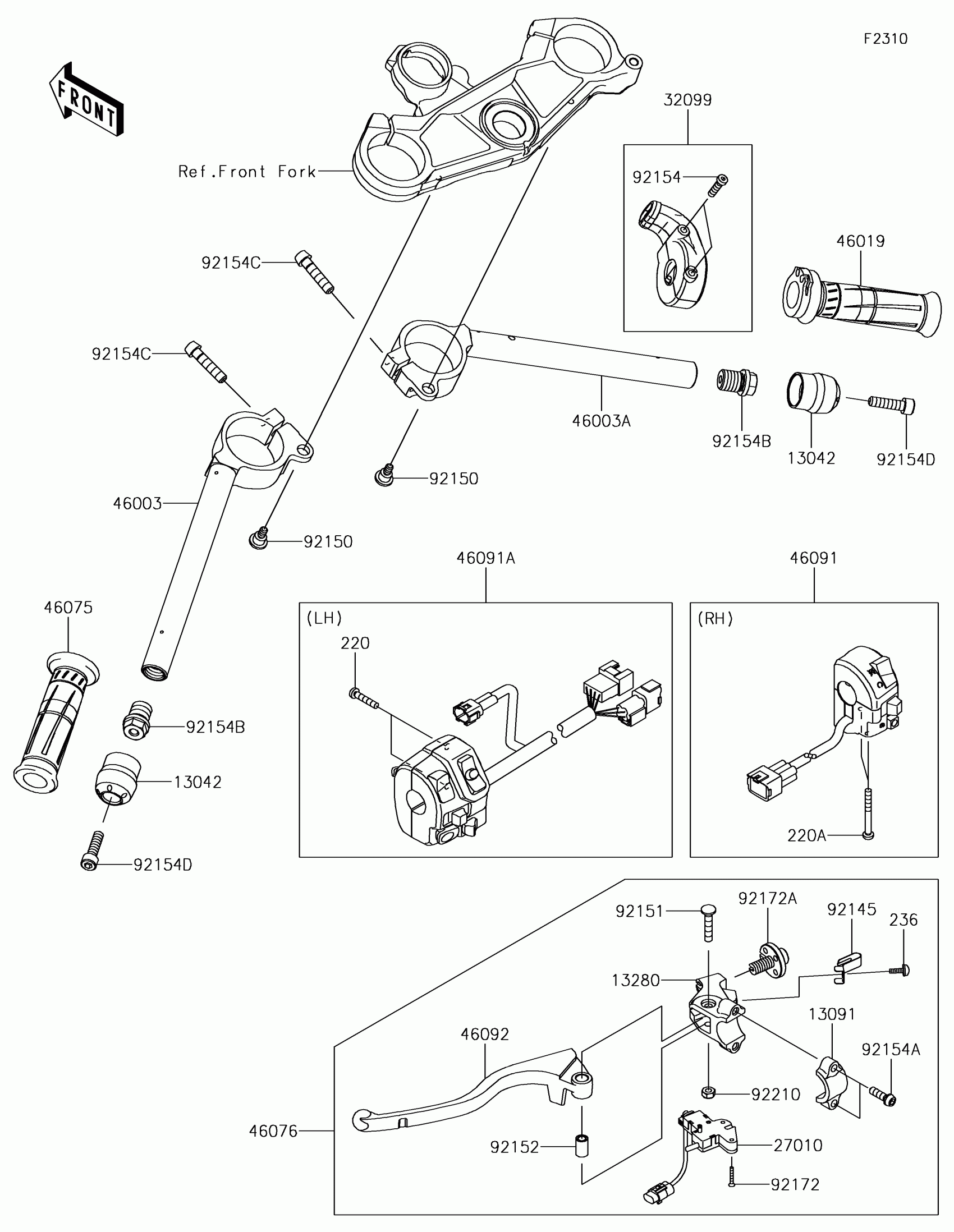

2018 Kawasaki Ninja® ZX™-10RR Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042

WEIGHT,HANDLE

13042-5009

1
Out of stock

13091

HOLDER,CLUTCH LEVER

13091-1624

1

$36.55

In stock

13280

HOLDER,CLUTCH LEVER

13280-1160

1

$48.11

In stock

220

SCREW-PAN-CROS,5X25

220AB0525

1
Out of stock

220A

SCREW-PAN-CROS,5X45

220C0545

1
Out of stock

236

SCREW-PAN-WSP-CROS,4X10

236AB0410

1
Out of stock

27010

SWITCH,CLUTCH

27010-0827

1
Out of stock

32099

CASE,THROTTLE

32099-0766

1
Out of stock

46003

HANDLE,LH

46003-0657

1
Out of stock

46003A

HANDLE,RH

46003-0658

1
Out of stock

46019

GRIP-ASSY,THROTTLE

46019-0020

1

$38.86

In stock

46075

GRIP,LH

46075-0068

1

$14.87

In stock

46076

1

$111.36

In stock

46091

HOUSING-ASSY-CONTROL,RH

46091-0322

1
Out of stock

46091A

HOUSING-ASSY-CONTROL,LH

46091-0323

1
Out of stock

46092

LEVER-GRIP

46092-0565

1
Out of stock

92145

SPRING

92145-1286

1
Out of stock

92150

BOLT,6MM

92150-1090

1
Out of stock

92151

BOLT

92151-1523

1
Out of stock

92152

COLLAR

92152-0103

1
Out of stock

92154

BOLT,SOCKET,5X35

92154-1530

1
Out of stock

92154A

BOLT,SOCKET,6X20

92154-1644

1
Out of stock

92154B

BOLT,17X18

92154-1902

1
Out of stock

92154C

BOLT,SOCKET,8X35

92154-1969

1
Out of stock

92154D

BOLT,SOCKET,8X30

92154-1970

1
Out of stock

92172

SCREW,3X16

92172-0183

1
Out of stock

92172A

SCREW,ADJUST NUT

92172-1060

1
Out of stock

92210

NUT,LOCK,6MM

92210-0006

1
Out of stock
