2004 Kawasaki Ninja® ZX™-10R Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2004 Kawasaki Ninja® ZX™-10R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

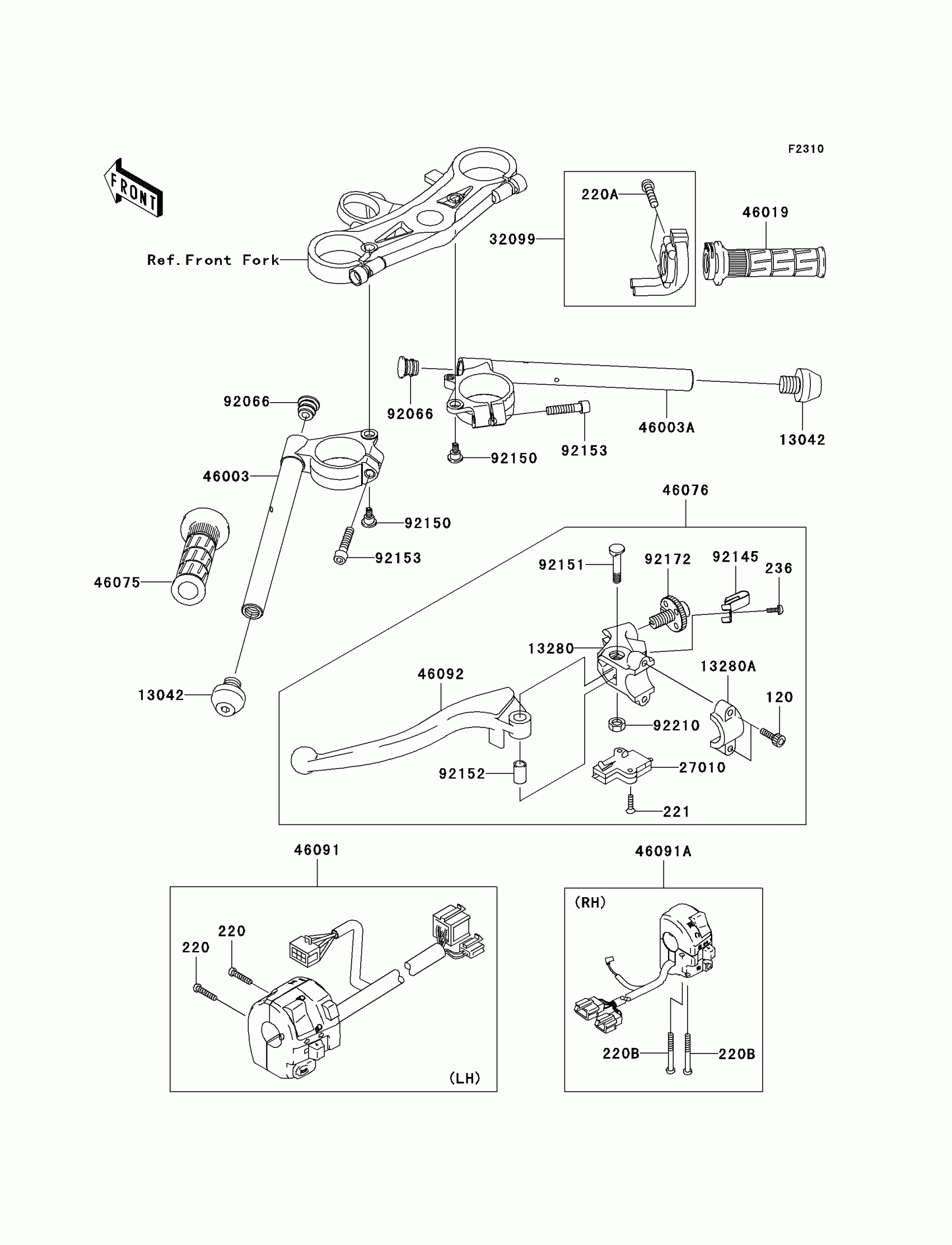

2004 Kawasaki Ninja® ZX™-10R Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X20

120S0620

1
Out of stock

220

SCREW-PAN-CROS,5X25

220C0525

1
Out of stock

220A

SCREW-PAN-CROS,5X35

220C0535

1
Out of stock

220B

SCREW-PAN-CROS,5X45

220C0545

1
Out of stock

221

SCREW-CSK-CROS

221C0316

1
Out of stock

236

SCREW-PAN-WSP-CROS,4X10

236C0410

1
Out of stock

13042

WEIGHT,HANDLE

13042-0010

1
Out of stock

13280

HOLDER,CLUTCH LEVER

13280-0034

1
Out of stock

13280A

HOLDER,CLUTCH LEVER

13280-0035

1
Out of stock

27010

SWITCH,CLUTCH

27010-1492

1
Out of stock

32099

CASE,THROTTLE CABLE

32099-1193

1
Out of stock

46003

HANDLE,LH

46003-0045

1
Out of stock

46003A

HANDLE,RH

46003-0046

1
Out of stock

46019

GRIP-ASSY,THROTTLE

46019-0001

1
Out of stock

46075

GRIP,HANDLE,LH

46075-1144

1
Out of stock

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0012

1
Out of stock

46091

HOUSING-ASSY-CONTROL,LH

46091-0021

1
Out of stock

46091A

HOUSING-ASSY-CONTROL,RH

46091-0040

1
Out of stock

46092

LEVER-GRIP,CLUTCH

46092-0006

1
Out of stock

92066

PLUG

92066-1550

1
Out of stock

92145

SPRING

92145-1286

1
Out of stock

92150

BOLT,6MM

92150-1090

1
Out of stock

92151

BOLT

92151-1523

1
Out of stock

92152

COLLAR

92152-0103

1
Out of stock

92153

BOLT,SOCKET,8X35

92153-1228

1
Out of stock

92172

SCREW,ADJUST NUT

92172-1060

1
Out of stock

92210

NUT,LOCK,6MM

92210-0006

1
Out of stock
