2004 Kawasaki Ninja® ZX™-10R Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2004 Kawasaki Ninja® ZX™-10R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

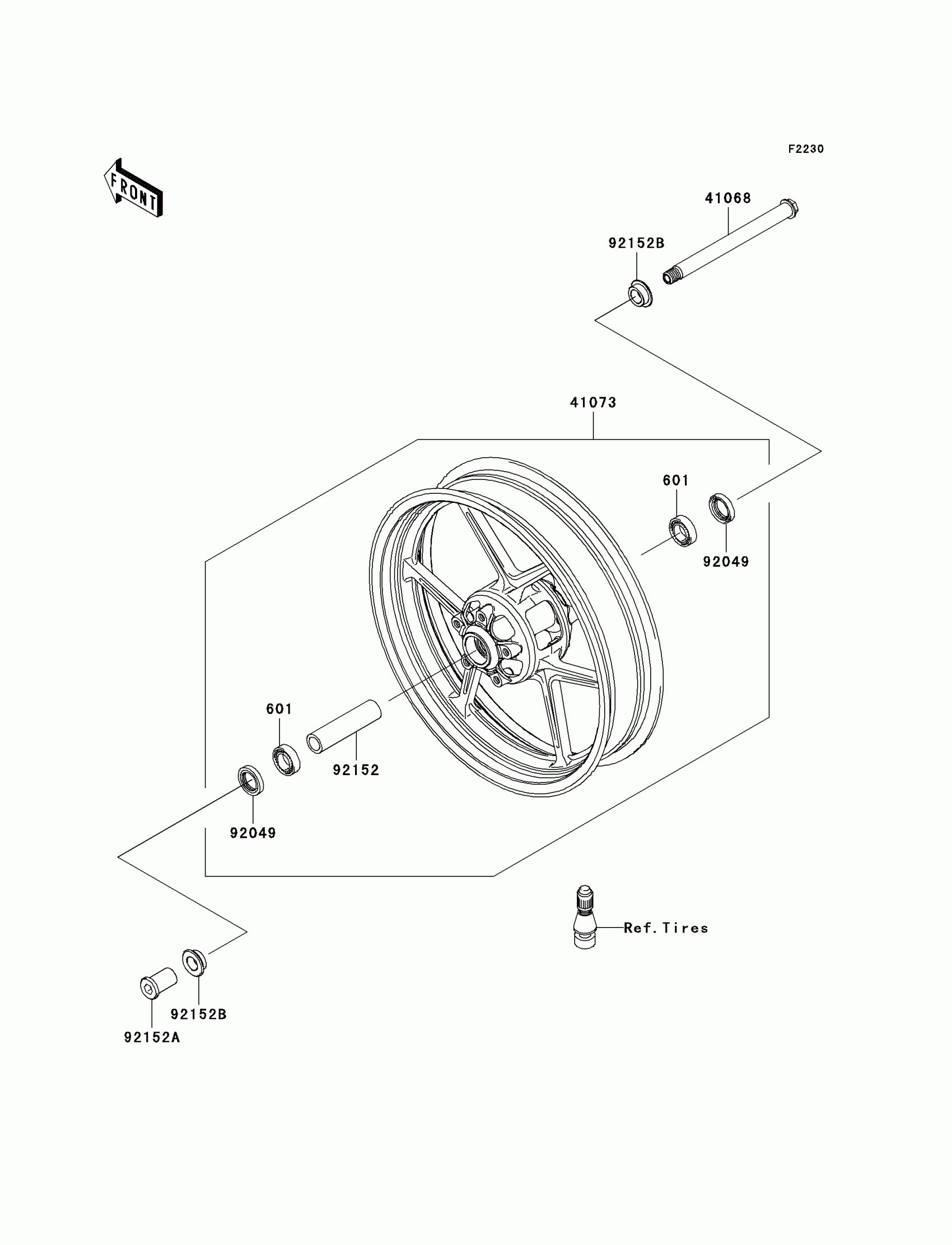

2004 Kawasaki Ninja® ZX™-10R Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

1

$26.40

In stock

41068

AXLE,FR

41068-0011

1
Out of stock

41073

WHEEL-ASSY,FR,BLACK

41073-0012-R2

1

$948.86

In stock

92049

SEAL-OIL,BJN30427-C3

92049-1057

1
Out of stock

92152

COLLAR,FR HUB,L=115

92152-0087

1

$40.82

In stock

92152A

1

$41.77

In stock

92152B

COLLAR,FR AXLE,L=13

92152-0210

1

$33.30

In stock
