2004 Kawasaki Ninja® ZX™-10R Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2004 Kawasaki Ninja® ZX™-10R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

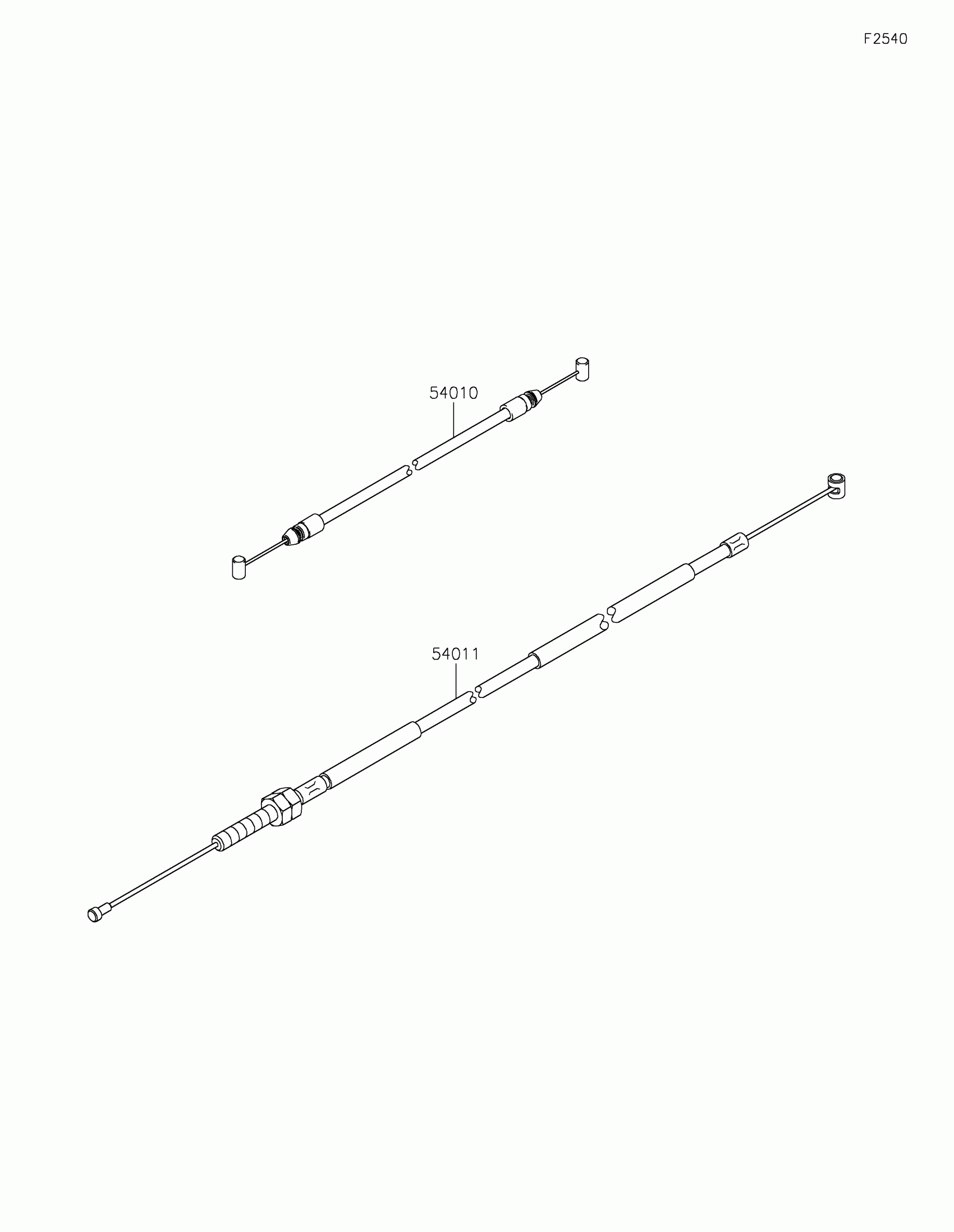

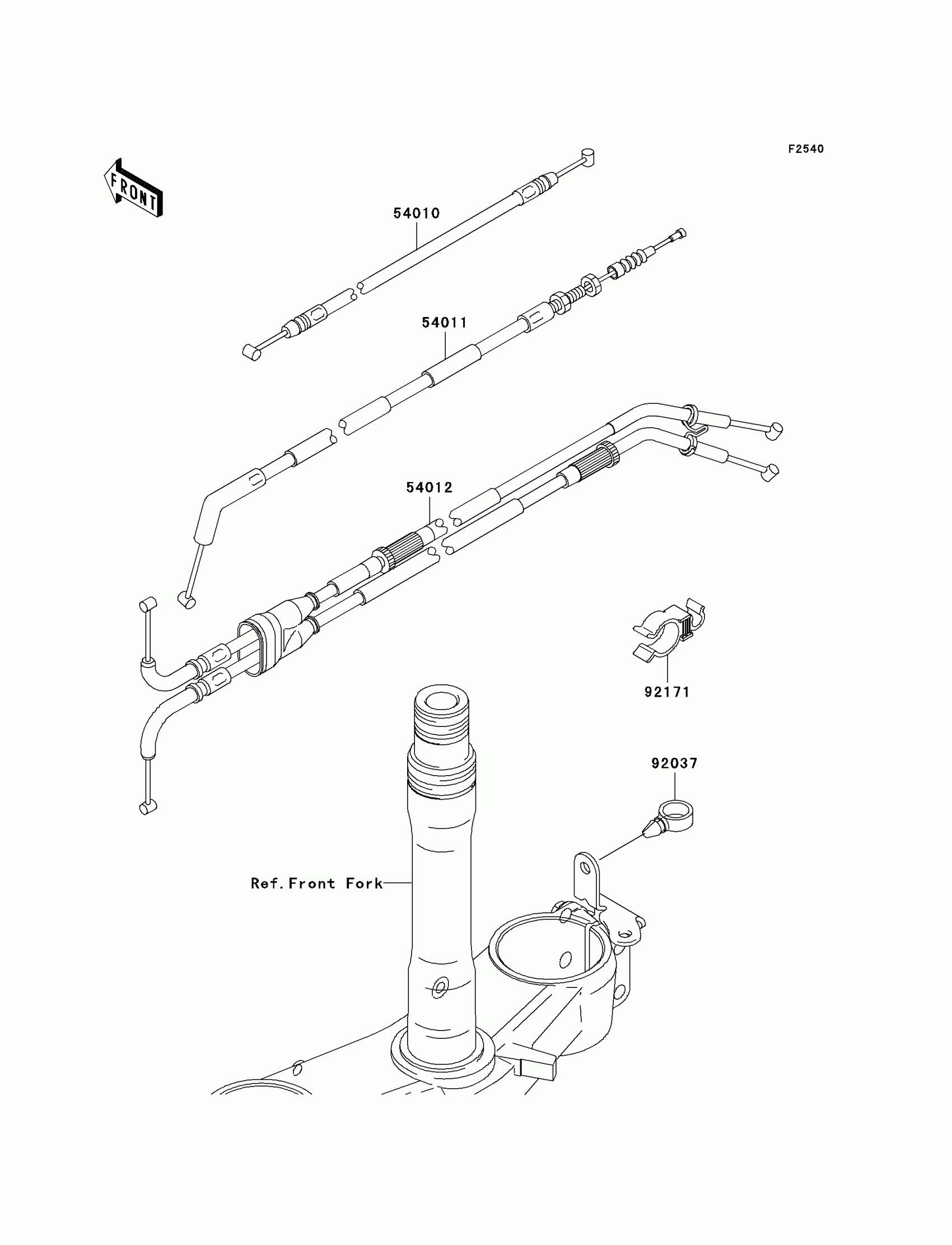

2004 Kawasaki Ninja® ZX™-10R Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

54010

CABLE,SEAT LOCK

54010-1101

1
Out of stock

54011

CABLE-CLUTCH

54011-0034

1

$31.28

In stock

54012

CABLE-THROTTLE

54012-0131

1
Out of stock

92037

CLAMP,HOSE

92037-1827

1

$5.93

In stock

92171

CLAMP,CABLE

92171-0347

1

$4.90

In stock
