2004 Kawasaki Ninja® ZX™-10R Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2004 Kawasaki Ninja® ZX™-10R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

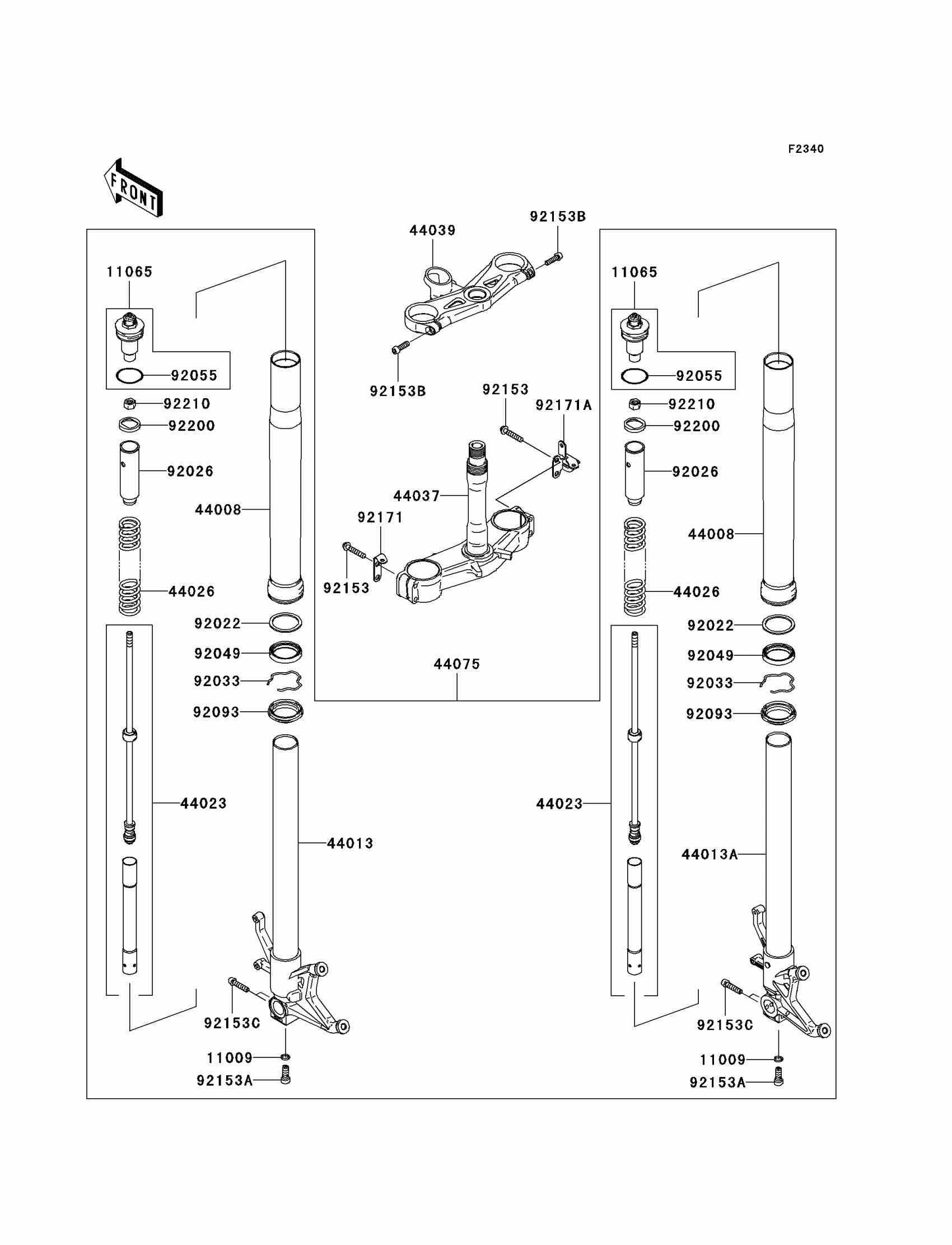

2004 Kawasaki Ninja® ZX™-10R Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X15X1.5

11009-1325

1
Out of stock

11065

CAP

11065-0038

1

$199.21

In stock

44008

PIPE-FORK OUTER

44008-0007

1

$1,064.24

In stock

44013

PIPE-FORK INNER,LH

44013-0005

1

$689.79

In stock

44013A

PIPE-FORK INNER,RH

44013-0006

1

$689.79

In stock

44023

CYLINDER-SET-FORK

44023-0019

1

$442.31

In stock

44026

SPRING-FRONT FORK

44026-0027

1

$89.45

In stock

44037

HOLDER-FORK UNDER

44037-0019

1

$825.38

In stock

44039

HOLDER-FORK UPPER

44039-0005

1

$351.67

In stock

44075

DAMPER-SET-FORK

44075-0053

1

$1,866.55

In stock

92022

WASHER

92022-1299

1

$6.82

In stock

92026

SPACER,FORK

92026-0045

1
Out of stock

92033

RING-SNAP

92033-1077

1

$3.94

In stock

92049

SEAL-OIL,FORK OUTER TUBE

92049-1522

1
Out of stock

92055

1

$4.75

In stock

92093

1

$14.61

In stock

92153

BOLT,FLANGED,8X40

92153-0484

1
Out of stock

92153A

BOLT,SOCKET,10X25

92153-0548

1
Out of stock

92153B

BOLT,SOCKET,8X27

92153-0768

1
Out of stock

92153C

BOLT,SOCKET,8X35

92153-1228

1
Out of stock

92171

CLAMP,LH

92171-0247

1

$5.44

In stock

92171A

CLAMP,HARNESS&CABLE

92171-0396

1

$10.88

In stock

92200

WASHER

92200-0085

1
Out of stock

92210

NUT

92210-0100

1
Out of stock
