1989 Kawasaki Ninja® ZX™-10 Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 1989 Kawasaki Ninja® ZX™-10, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

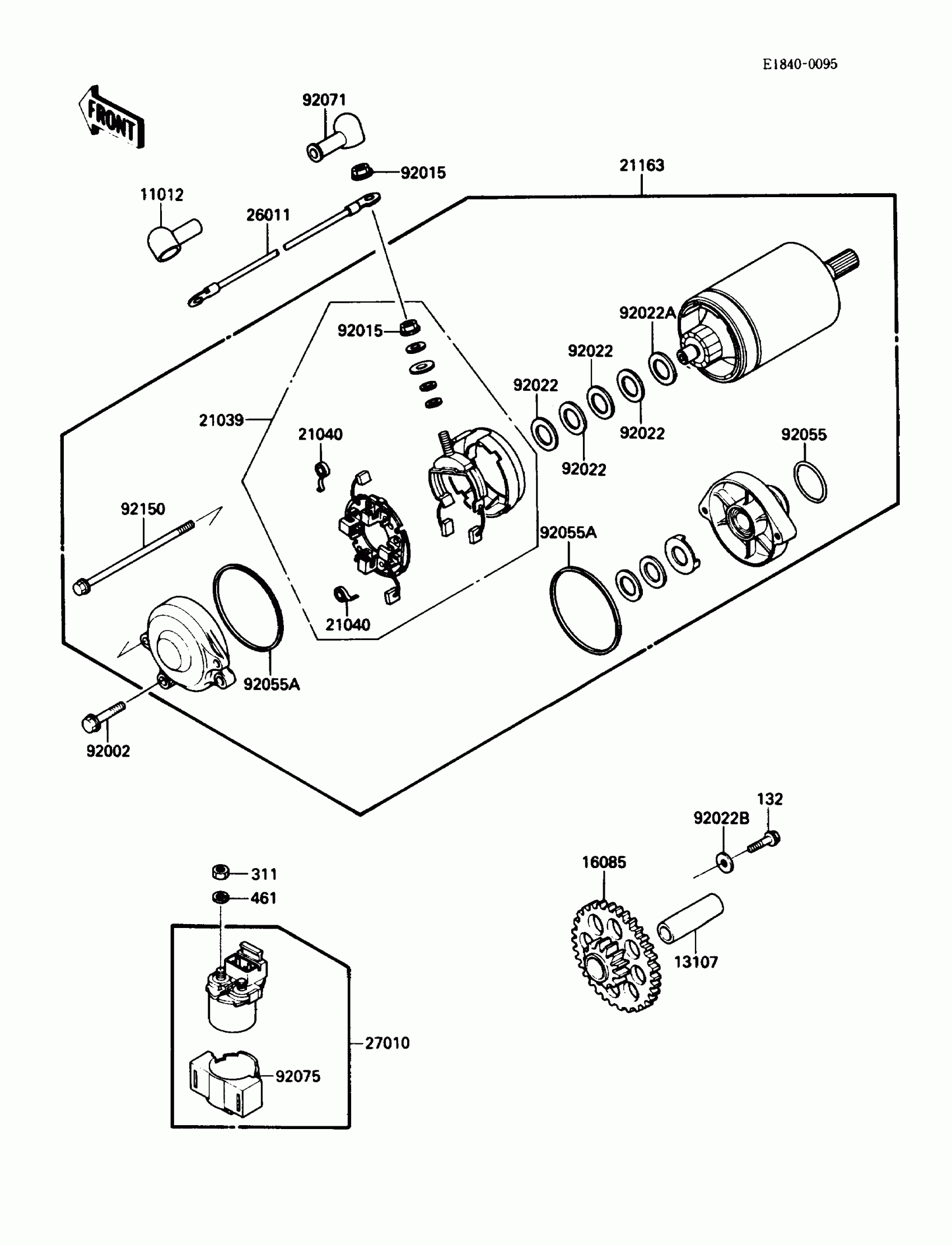

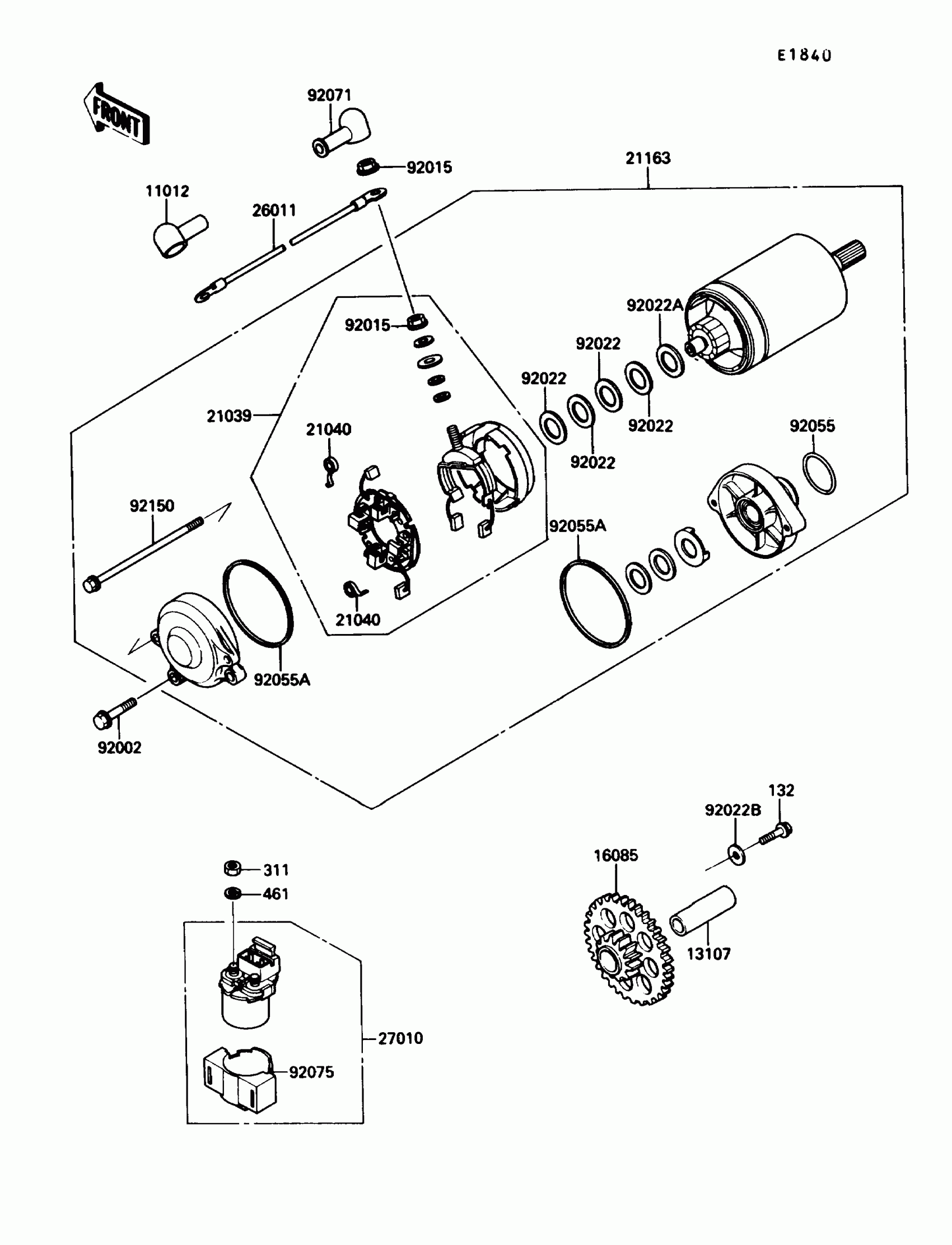

1989 Kawasaki Ninja® ZX™-10 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

11012

CAP,TERMINAL

11012-1354

1
Out of stock

13107

SHAFT,IDLE GEAR

13107-1106

1
Out of stock

16085

GEAR,IDLE

16085-1104

1
Out of stock

21039

BRUSH,CARBON

21039-1060

1
Out of stock

21040

SPRING-BRUSH

21040-1055

1
Out of stock

21163

STARTER-ELECTRIC

21163-1126

1
Out of stock

26011

WIRE-LEAD,MOTOR

26011-1424

1
Out of stock

27010

SWITCH,MAGNETIC

27010-1254

1
Out of stock

92002

BOLT,6X20

92001-1947

1
Out of stock

92015

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92022

WASHER,9.1X18X0.2

21025-011

1
Out of stock

92022A

WASHER,9.1X18X0.8

92022-1132

1
Out of stock

92022B

WASHER,6X19.5X2

92022-1517

1
Out of stock

92055

RING-O

92055-1276

1
Out of stock

92055A

RING-O,STARTER MOTOR

92055-1381

1
Out of stock

92071

GROMMET,STARTER TERMINAL

21017-017

1
Out of stock

92075

DAMPER,MAGNETIC SWITCH

92075-1863

1
Out of stock

92150

BOLT,5X110

92150-1143

1
Out of stock
