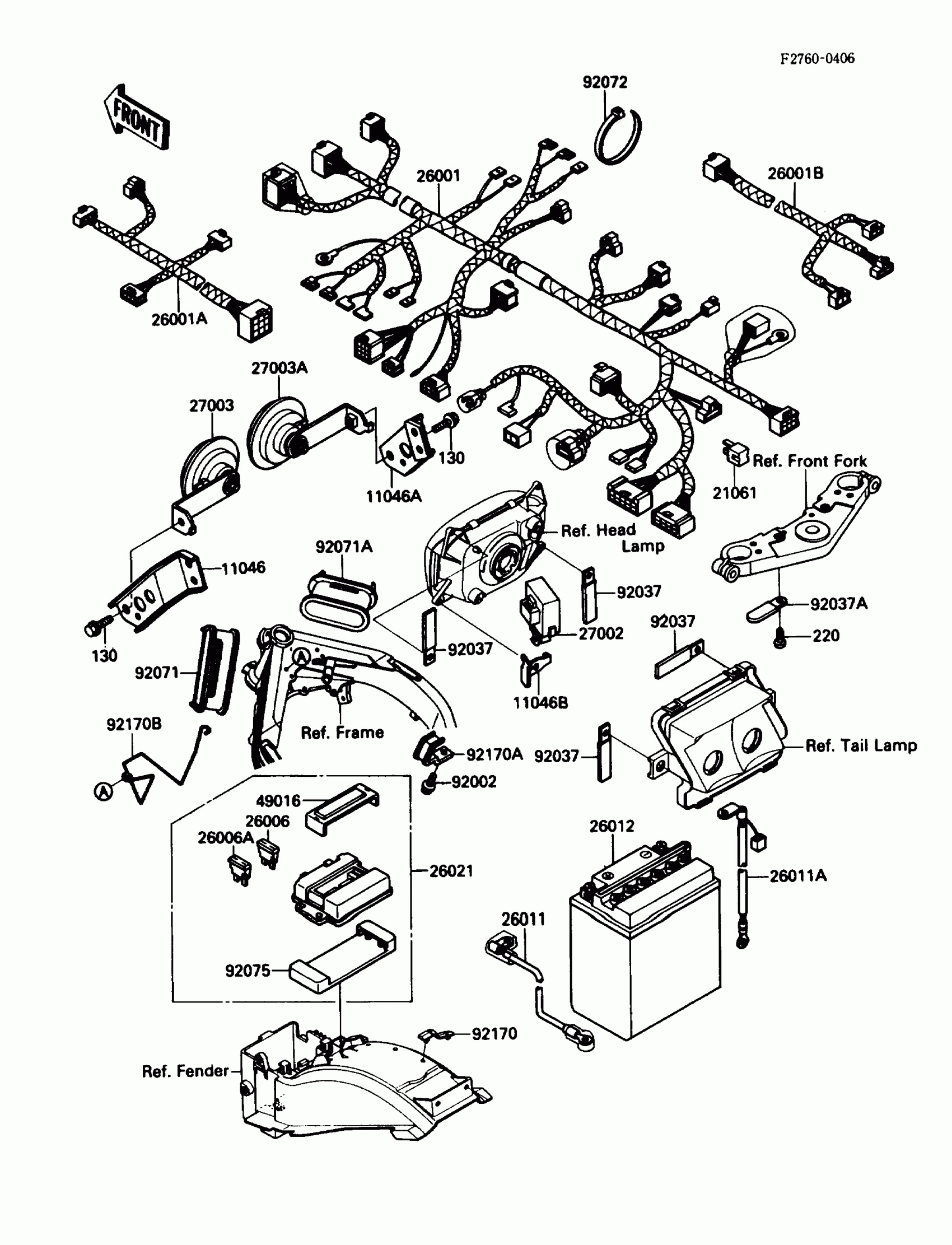

Kawasaki Ninja® ZX™-10 Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,8X12

130J0812

Unavailable

220

SCREW-PAN-CROS,5X10

220C0510

Unavailable

11046

BRACKET,HORN,LH

11046-1255

Unavailable

11046A

BRACKET,HORN,RH

11046-1256

Unavailable

11046B

BRACKET,RELAY

11046-1373

Unavailable

21061

RECTIFIER

21061-1003

$30.17

26001

HARNESS,MAIN

26001-1896

Unavailable

26001A

HARNESS,FR

26001-1897

Unavailable

26001B

HARNESS,RR

26001-1920

Unavailable

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.39

26006A

FUSE,BLADE,10A,RED

26006-1007

$3.78

26011

WIRE-LEAD,BATTERY(+)

26011-1427

$39.41

26011A

WIRE-LEAD,BATTERY(-)

26011-1428

Unavailable

26012

BATTERY,12V 15AH,FB14L-A2(K)

26012-1224

Unavailable

26021

JUNCTION BOX

26021-1071

Unavailable

27002

RELAY-ASSY,SIGNAL LAMP

27002-1063

$73.74

27003

HORN,LH

27003-1299

$78.45

27003A

HORN,RH

27003-1300

$78.45

49016

COVER-SEAL,FUSE

49016-1125

Unavailable

92002

BOLT,6X10

92002-1628

$4.24

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,L=45

92037-1539

$4.42

92071

GROMMET,HARNESS,LH

92071-1169

$22.76

92071A

GROMMET,HARNESS,RH

92071-1170

$20.58

92072

BAND,L=202

92072-1195

$1.16

92075

DAMPER,JUNCTION BOX

92075-1688

$13.64

92170

CLAMP,HARNESS

92170-1015

Unavailable

92170A

CLAMP,HARNESS

92170-1024

$4.22

92170B

CLAMP,HARNESS

92170-1029

$10.31
