1989 Kawasaki Ninja® ZX™-10 Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1989 Kawasaki Ninja® ZX™-10, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

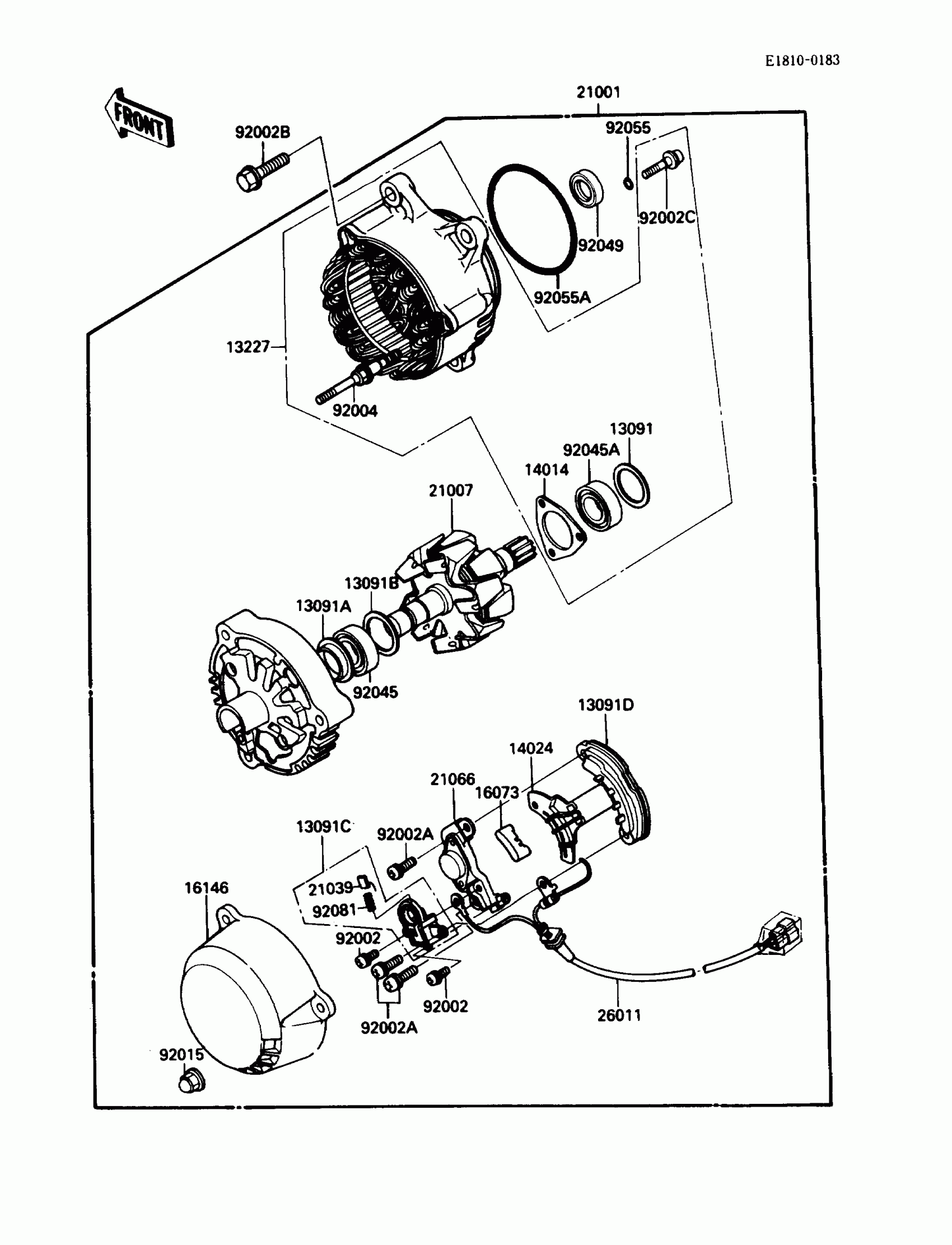

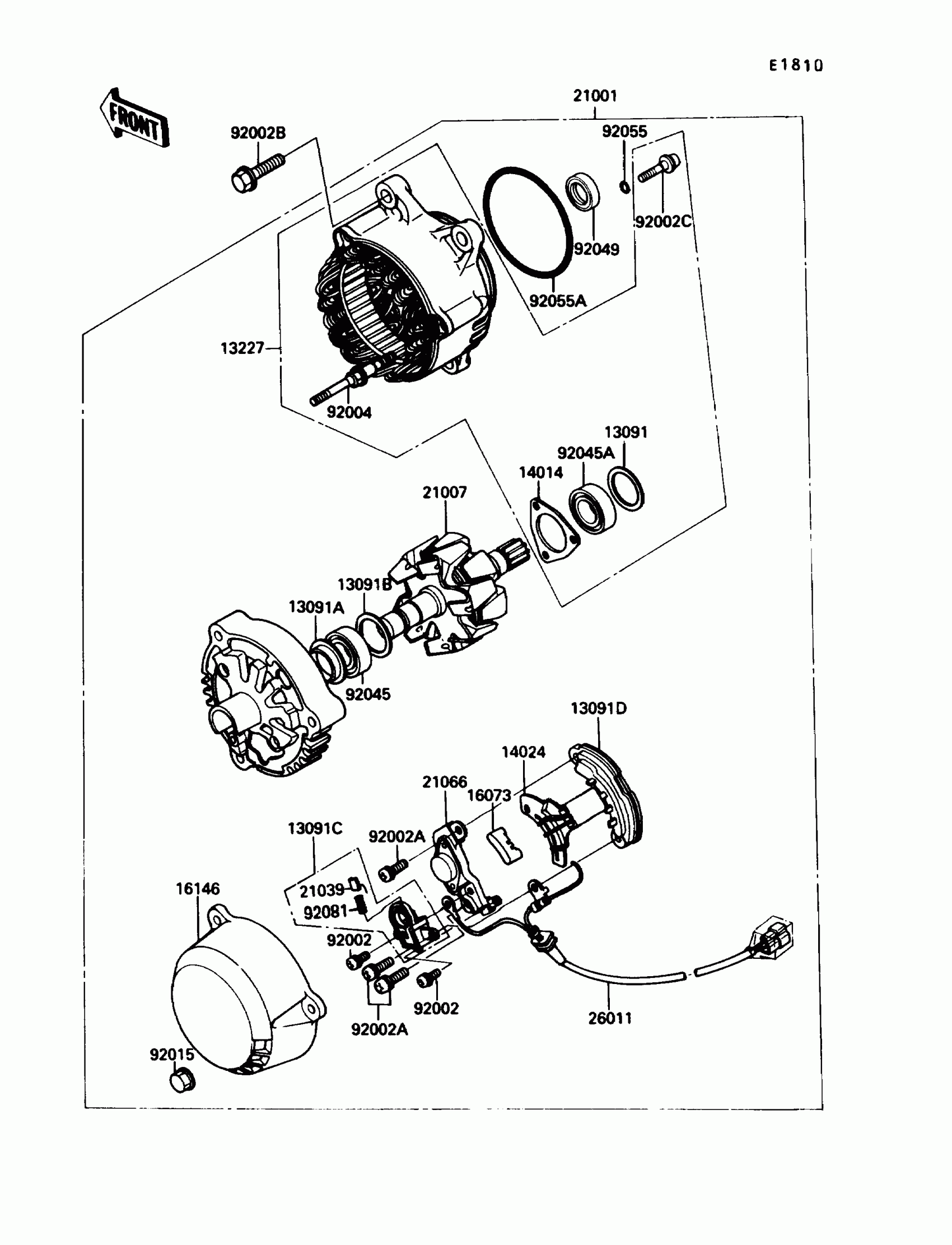

1989 Kawasaki Ninja® ZX™-10 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,BEARING

13091-1326

1

$13.64

In stock

13091A

HOLDER,COVER

13091-1327

1

$18.17

In stock

13091B

HOLDER,BEARING

13091-1328

1

$12.90

In stock

13091C

HOLDER,BRUSH

13091-1465

1

$113.58

In stock

13091D

RECTIFIER

13091-1466

1

$522.25

In stock

13227

HOUSING,GENERATOR

13227-1073

1
Out of stock

14014

PLATE-POSITION

14014-1065

1
Out of stock

14024

COVER,RECTIFIER

14025-1942

1

$10.61

In stock

16073

INSULATOR

16073-1062

1

$20.58

In stock

16146

1

$167.15

In stock

21001

GENERATOR

21001-1091

1

$1,313.88

In stock

21007

ROTOR,GENERATOR

21007-1174

1

$661.43

In stock

21039

BRUSH,CARBON

21039-1052

1

$29.01

In stock

21066

REGULATOR-VOLTAGE

21066-1056

1

$424.45

In stock

26011

WIRE-LEAD,GENERATOR

26011-1432

1

$89.46

In stock

92002

SCREW,4X8

92002-1379

1

$4.61

In stock

92002A

SCREW,5X17.5

92002-1380

1

$4.46

In stock

92002B

BOLT,8X32

92002-1400

1
Out of stock

92002C

SCREW

92002-1856

1
Out of stock

92004

STUD

92004-1167

1
Out of stock

92015

NUT

92015-1625

1

$2.20

In stock

92045

1

$54.40

In stock

92045A

BEARING-BALL,#6002

92045-1185

1
Out of stock

92049

SEAL-OIL

92049-1200

1
Out of stock

92055

RING-O,3.5MM

92055-1264

1

$3.21

In stock

92055A

RING-O,70.6X2.4

92055-1366

1

$29.82

In stock

92081

SPRING,BRUSH

92081-1759

1

$7.88

In stock
