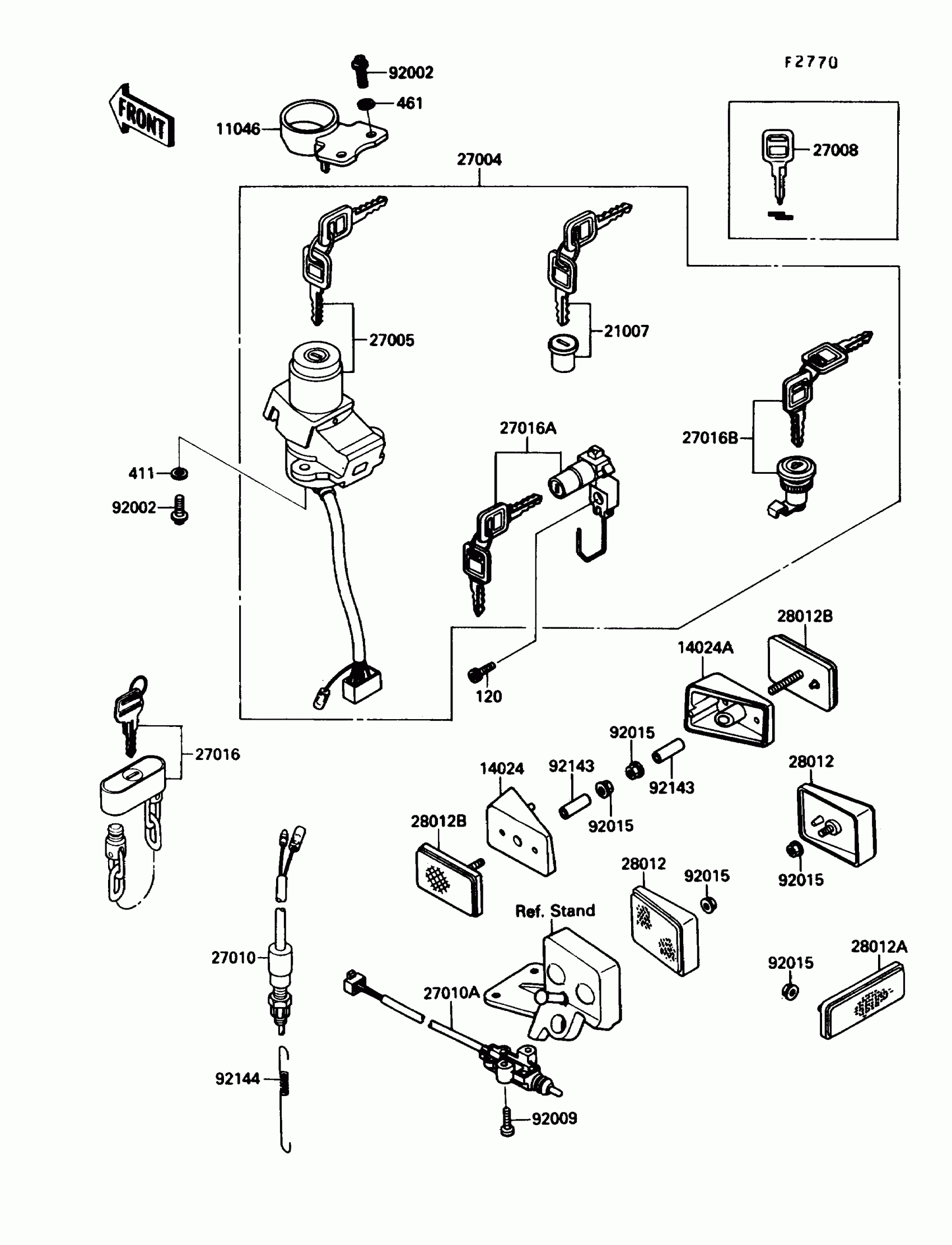

Kawasaki Ninja® ZX™-10 Ignition Switch/Locks/Reflectors Diagram

Description

Price

120

BOLT-SOCKET,6X12

120S0612

Unavailable

411

WASHER-PLAIN,6MM

411E0600

$1.03

461

WASHER-SPRING

461L0600

$0.66

11046

BRACKET,IGNITION SWITCH

11046-1399

Unavailable

14024

COVER,REFLECTOR,LH

14024-1665

Unavailable

14024A

COVER,REFLECTOR,RH

14024-1666

Unavailable

21007

ROTOR,LOCK,TANK CAP

21007-5027

$94.15

27004

SWITCH-ASSY

27004-5338

Unavailable

27005

SWITCH-ASSY-IGNITION

27005-5081

$251.72

27008

KEY-LOCK,BLANK

27008-1103

$16.44

27010

SWITCH,BRAKE LAMP

27010-1093

$26.58

27010A

SWITCH,SIDE STAND

27010-1226

$73.52

27016

LOCK-ASSY,WHEEL

27016-1051

$134.03

27016A

LOCK-ASSY,HELMET

27016-5143

$49.56

27016B

LOCK-ASSY,TOOL BOX

27016-5144

Unavailable

28012

REFLECTOR-REFLEX,RR

28012-1056

$24.63

28012A

REFLECTOR-REFLEX

28012-1057

$21.76

28012B

REFLECTOR-REFLEX

28012-1064

Unavailable

92002

BOLT,TORX,6X16

92002-1333

$1.85

92009

SCREW,5X20

92009-1459

$3.92

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92143

COLLAR,5.6X8X25

92143-1231

$4.68

92144

SPRING,REAR BRAKE SWITCH

92144-1283

$5.47
