1989 Kawasaki Ninja® ZX™-10 Battery Case Diagram

← All diagrams

Find the part on the Battery Case diagram for your 1989 Kawasaki Ninja® ZX™-10, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

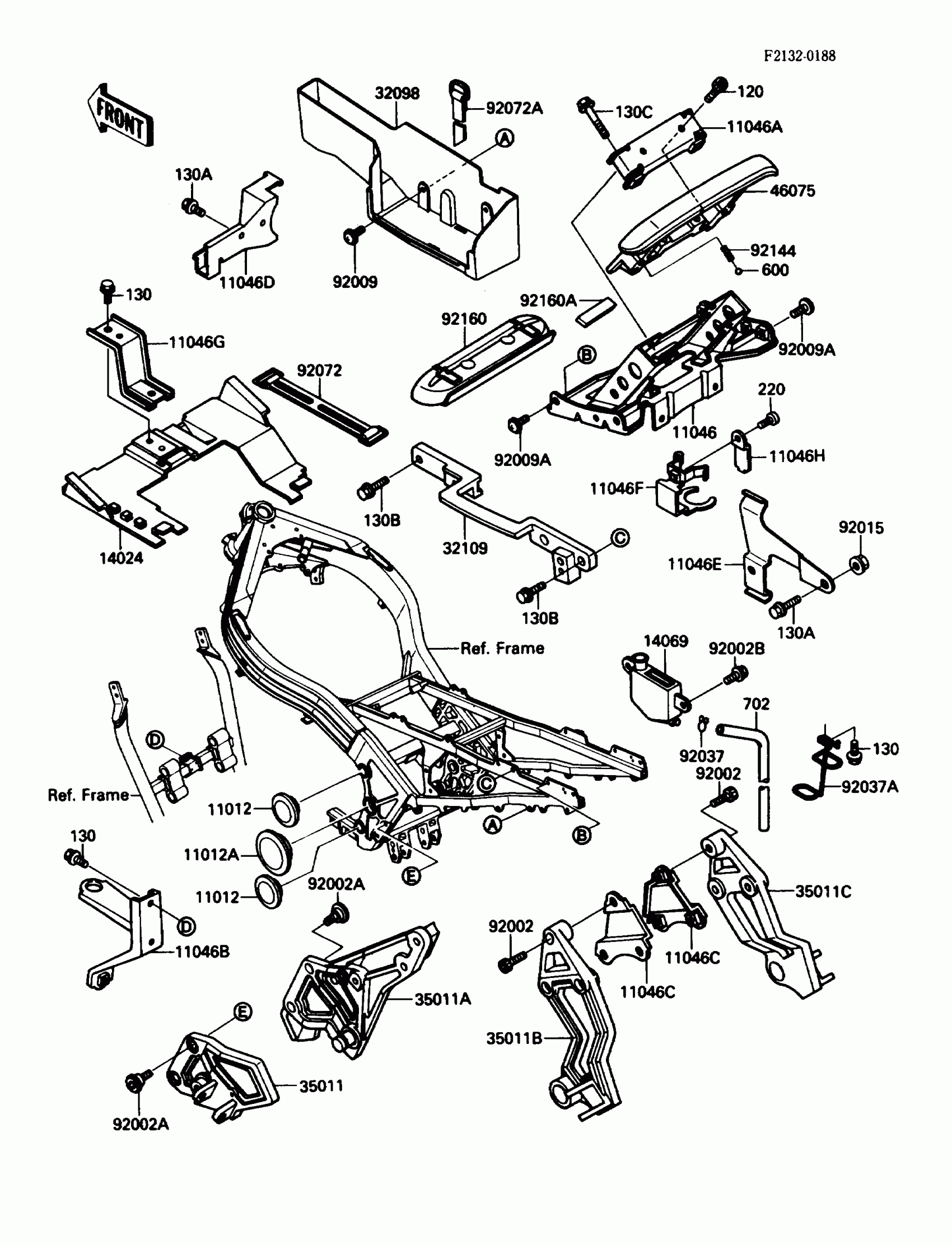

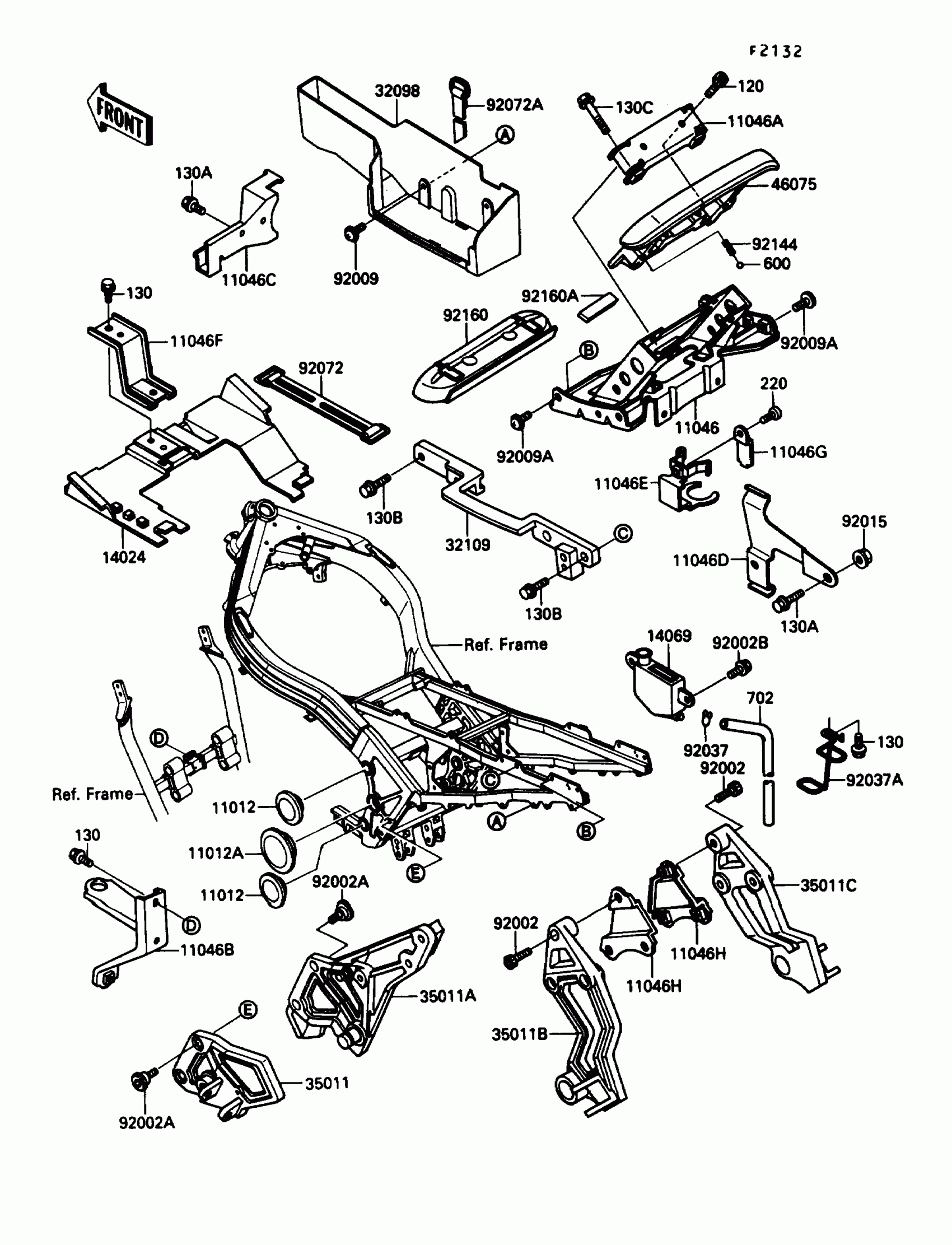

1989 Kawasaki Ninja® ZX™-10 Battery Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET

120S0814

1
Out of stock

130

BOLT-FLANGED

130J0610

1
Out of stock

11012

CAP

11012-1460

1

$10.92

In stock

11012A

CAP

11012-1657

1

$15.12

In stock

11046

BRACKET,TAIL GRIP

11046-1239

1
Out of stock

11046A

BRACKET,TAIL GRIP

11046-1240

1
Out of stock

11046B

BRACKET,OIL COOLER

11046-1260

1
Out of stock

11046C

BRACKET,MUFFLER STAY

11046-1261

1
Out of stock

11046D

BRACKET,FUEL PUMP

11046-1262

1
Out of stock

11046G

BRACKET,BATTERY CASE

11046-1369

1
Out of stock

14024

COVER,RR

14024-1693

1
Out of stock

14069

BREATHER

14069-1054

1
Out of stock

32098

CASE-TOOL

32098-1081

1

$44.42

In stock

32109

GRIP-FRAME,LH

32109-1171

1

$71.33

In stock

35011

STAY,STEP HOLDER,LH,SILVER

35011-1416-CE

1
Out of stock

35011A

STAY,STEP HOLDER,RH,SILVER

35011-1417-CE

1
Out of stock

35011B

1

$115.40

In stock

35011C

1

$115.40

In stock

46075

GRIP,TAIL,BLACK

46075-1076-10

1
Out of stock

92002

BOLT,SOCKET,8X22

92002-1334

1

$4.17

In stock

92002A

BOLT,SOCKET,8X20

92002-1493

1

$1.81

In stock

92002B

BOLT,UPSET-WP,6X12

92002-1884

1
Out of stock

92009

SCREW,6X18,BLACK

92009-1181

1
Out of stock

92009A

SCREW,8X16

92009-1556

1
Out of stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037A

CLAMP,HOSE

92037-1875

1

$11.02

In stock

92072

BAND,L=146.9

92072-054

1

$14.53

In stock

92072A

BAND,L=300

92072-1235

1

$20.37

In stock

92144

SPRING

92144-3708

1
Out of stock

92160

DAMPER,TAIL GRIP

92160-1054

1
Out of stock

92160A

DAMPER

92160-1099

1

$3.81

In stock

130B

BOLT-FLANGED,8X20

130J0820

1
Out of stock

130C

BOLT-FLANGED,8X40

130J0840

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock

702

1

$10.53

In stock

130A

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

130A

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

11046E

BRACKET,CANISTER

11046-1277

1
Out of stock

11046F

BRACKET,SEPARATOR

11046-1278

1
Out of stock

11046H

BRACKET,SEPARATOR

11046-1372

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

220

SCREW-PAN-CROS,5X10

220C0510

1
Out of stock
