1985 Kawasaki Ninja® Stands Diagram

← All diagrams

Find the part on the Stands diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

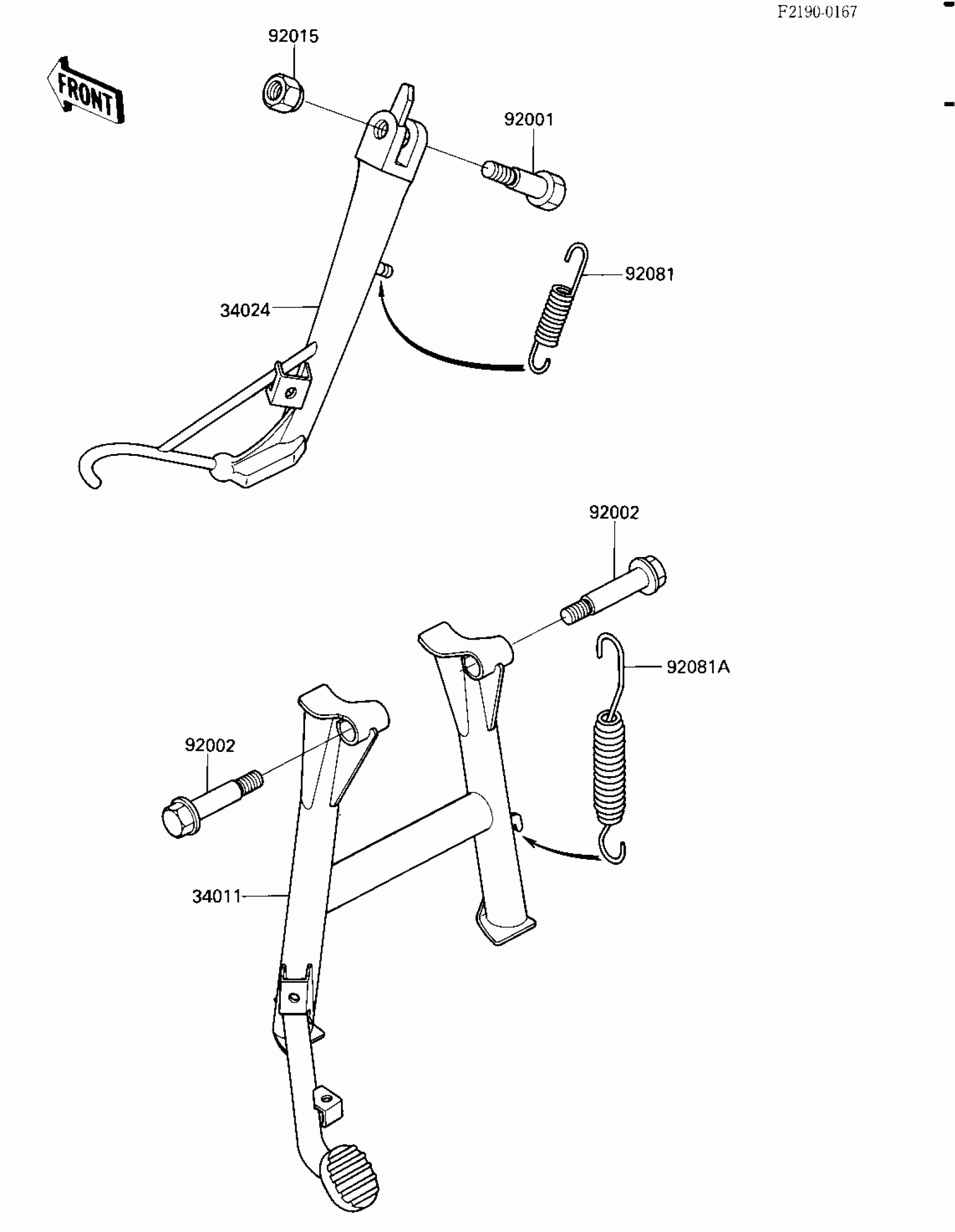

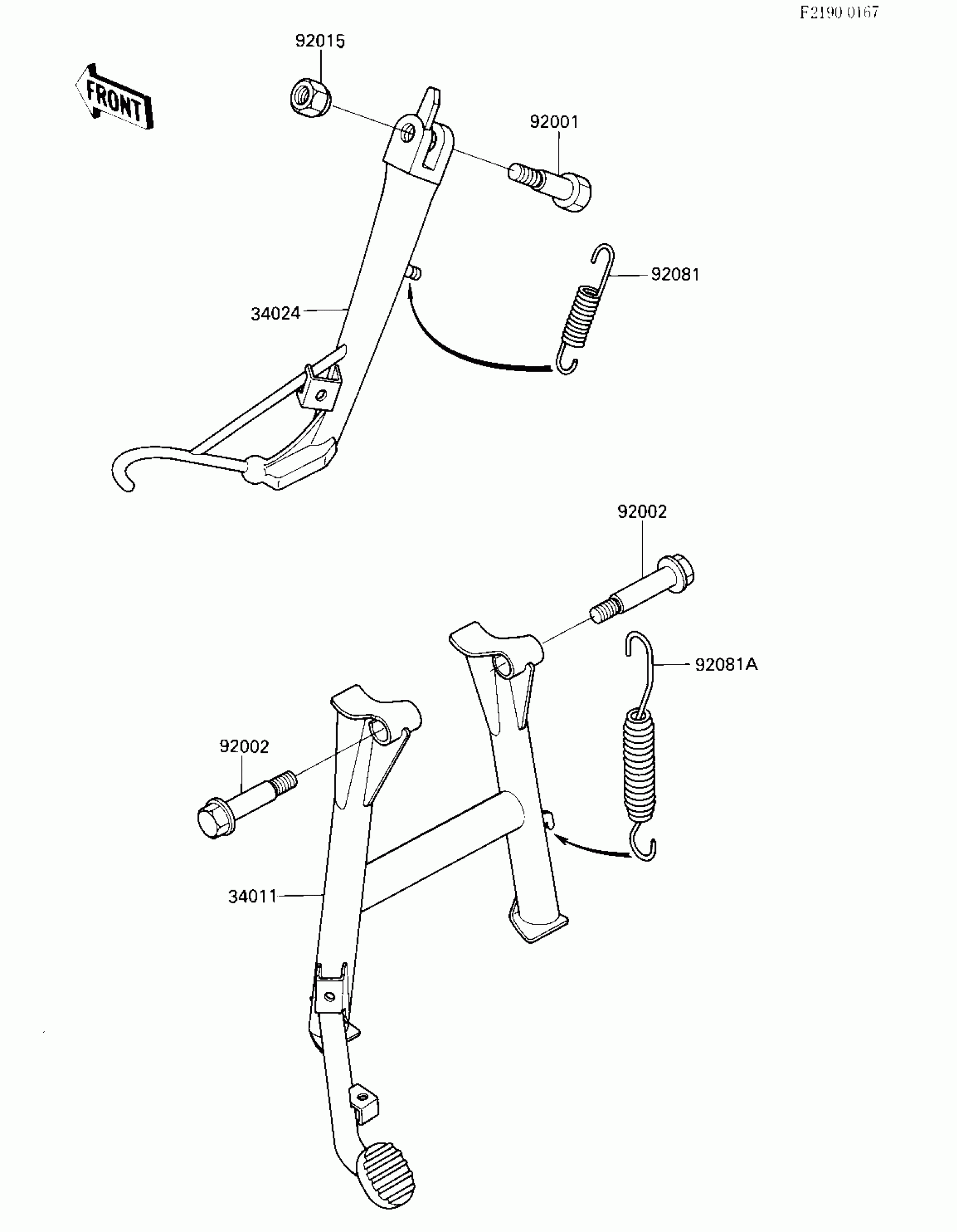

1985 Kawasaki Ninja® Stands Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34011

STAND-CENTER

34011-1108

1
Out of stock

34024

STAND-SIDE

34024-1176

1
Out of stock

92001

BOLT,SIDE STAND

92003-157

1
Out of stock

92002

BOLT,CENTER STAND

92001-1880

1
Out of stock

92015

NUT,LOCK,10MM

92019-021

1

$4.83

In stock

92081

SPRING,SIDE STAND

92081-1676

1

$11.19

In stock

92081A

SPRING,CENTER STAND

92081-1828

1

$24.97

In stock
