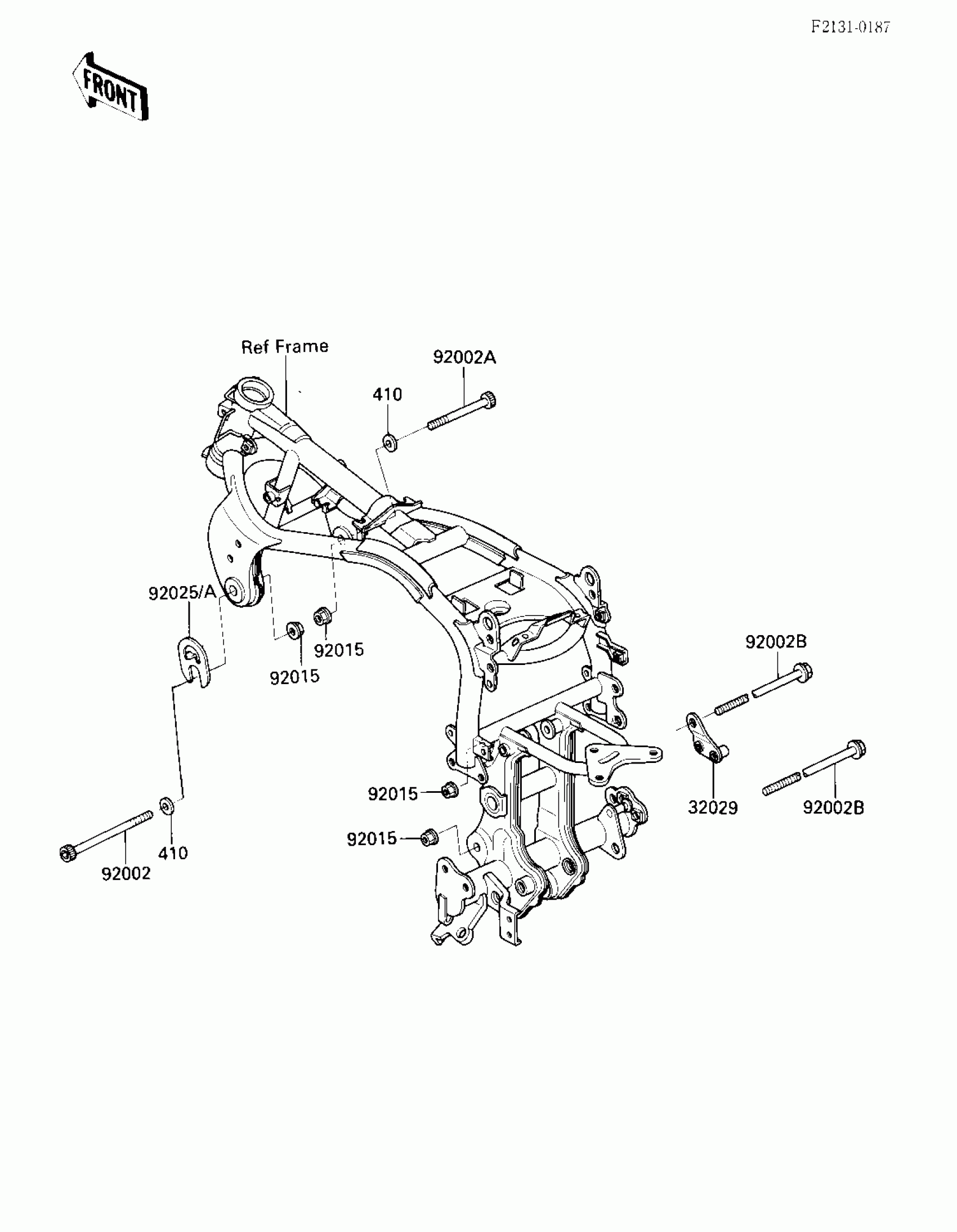

1985 Kawasaki Ninja® Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Kawasaki Ninja® Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32029

BRACKET-ENGINE,RR

32029-1322

1

$25.47

In stock

92002

UNAVAILABLE IN PRICE BOOK

92001-188

1
Out of stock

92002A

BOLT,SOCKET,10X72

92001-1889

1

$8.42

In stock

92002B

BOLT,FLANGED,10X205

92002-1321

1
Out of stock

92015

NUT,10MM

92015-1429

1

$5.45

In stock

92025

SHIM,ENGINE MOUNT,T=1.2

92025-1616

—
Out of stock

92025A

SHIM,ENGINE MOUNT,T=2.0

92025-1617

—
Out of stock

410

WASHER PLAIN 10MM

410B1000

1
Out of stock
