1985 Kawasaki Ninja® Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

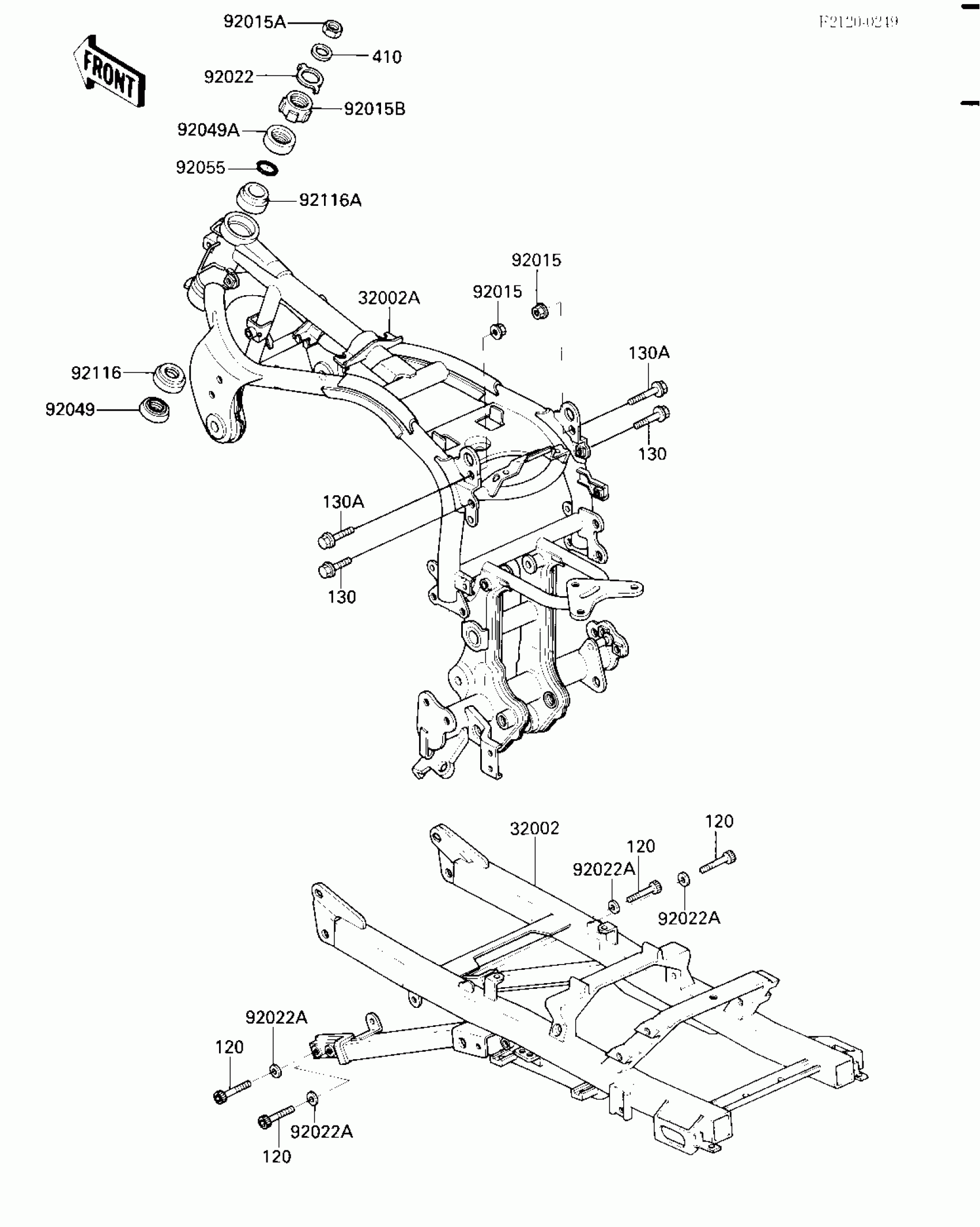

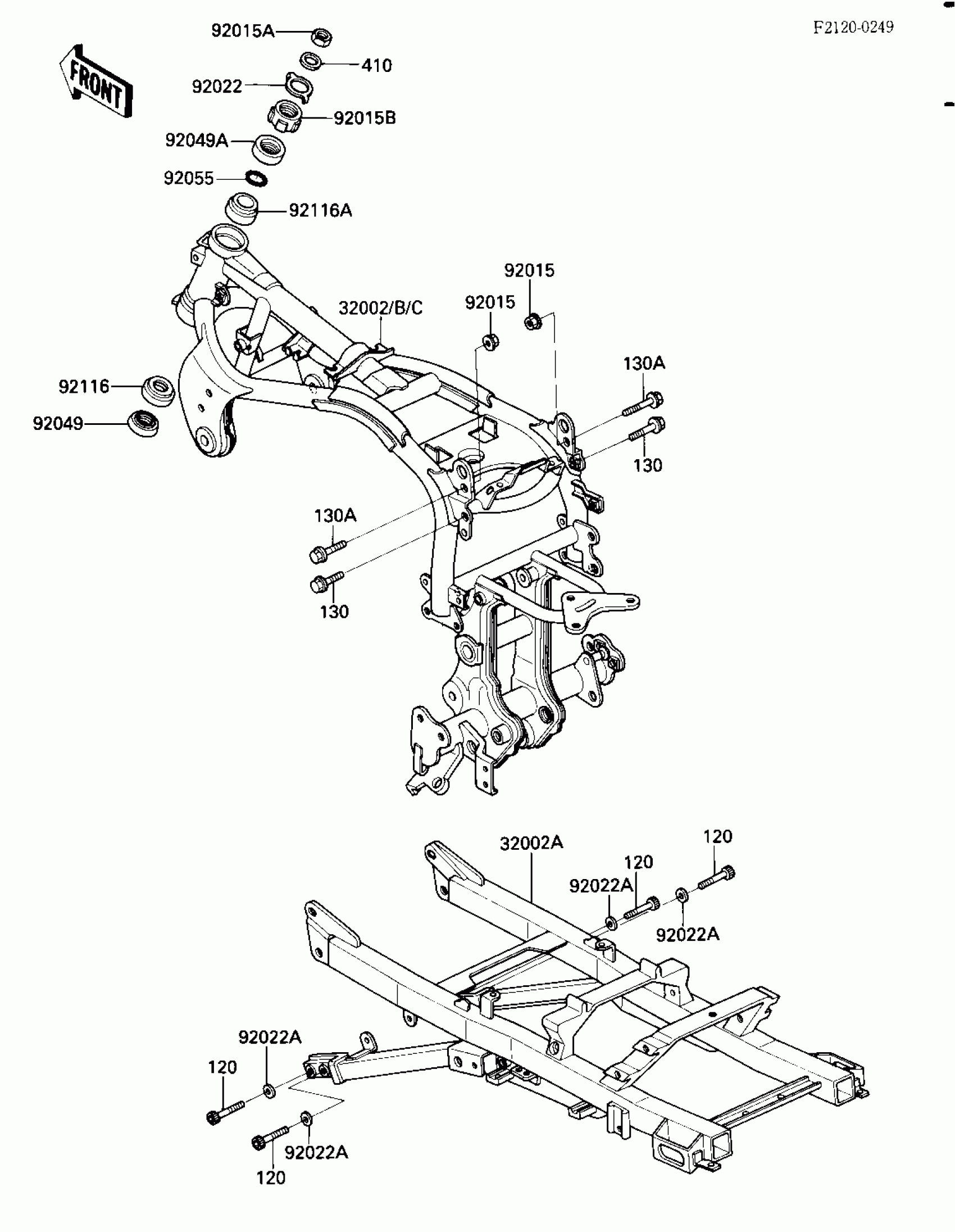

1985 Kawasaki Ninja® Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32002A

FRAME-COMP,BLACK

32002-1712-10

1

$1,073.40

In stock

32002B

FRAME-COMP,FR

32002-1842

1

$1,486.12

In stock

32002C

FRAME-COMP,FR

32002-1842

1

$1,486.12

In stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015A

NUT,18MM

92015-1404

1

$21.97

In stock

92015B

NUT,25MM,T=12

92015-1546

1

$19.66

In stock

92022

1

$7.49

In stock

92022A

WASHER,8.5X16X2.5

92022-1595

1

$1.98

In stock

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

1
Out of stock

92049A

SEAL-OIL,STEERING STEM

92049-1214

1
Out of stock

92055

RING-O,24.7MM

92055-1160

1

$3.72

In stock

92116

1

$33.21

In stock

92116A

1

$43.76

In stock

120

BOLT-SOCKET,8X25

120P0825

1
Out of stock

130

BOLT-FLANGED,8X20

130G0820

1
Out of stock

130A

BOLT-FLANGED,8X25

130G0825

1
Out of stock

410

W-PLAIN-S

410F1800

1
Out of stock
