1985 Kawasaki Ninja® Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

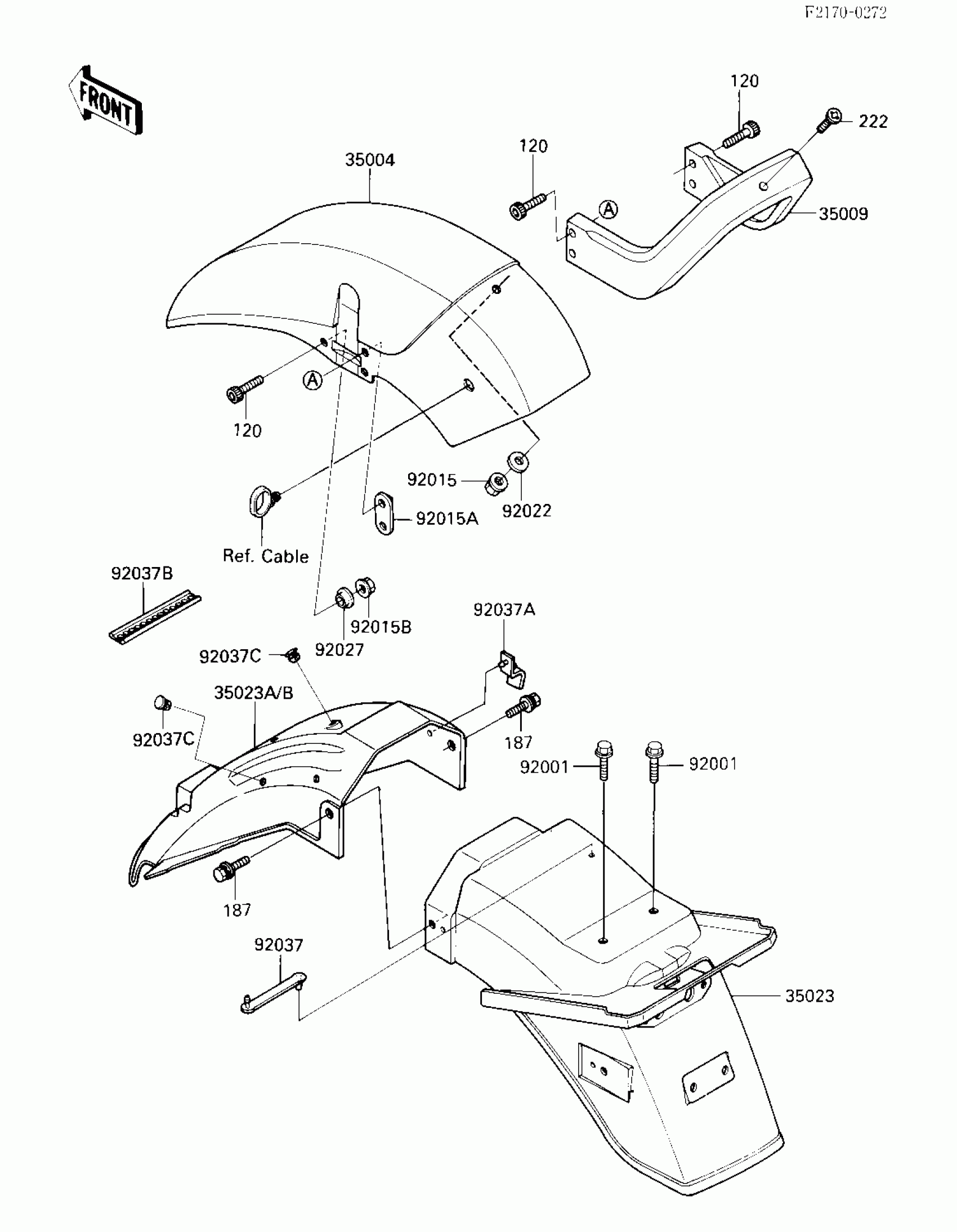

1985 Kawasaki Ninja® Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,F.BLACK/

35004-1155-M1

1

$299.03

In stock

35004A

FENDER-FRONT,F.BLACK/L.P. (Can

35004-1155-M3

1
Out of stock

35009

BRACE,FENDER

35009-1054

1
Out of stock

35023

FENDER-REAR,RR

35023-1324

1
Out of stock

35023A

FENDER-REAR,FR

35023-1122

1

$82.75

In stock

35023B

FENDER-REAR,FR

35023-1326

1

$80.32

In stock

92001

BOLT,6X25

92001-1870

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,FENDER

92015-1345

1
Out of stock

92015B

NUT,6MM

92015-1365

1

$3.97

In stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92027

COLLAR,L=4.6

92027-1168

1

$3.97

In stock

92037

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92037A

CLAMP,HARNESS

92037-1532

1

$3.64

In stock

92037B

CLAMP

92037-1578

1

$6.05

In stock

92037C

CLAMP

92037-1579

1
Out of stock

120

BOLT-SOCKET,6X30

120P0630

1
Out of stock

187

BOLT-UPSET-WSP

187B0622

1

$3.69

In stock

222

SCREW OVL CNTSNK 6X20

222B0620

1
Out of stock
← Fairing Lowers Footrests →
